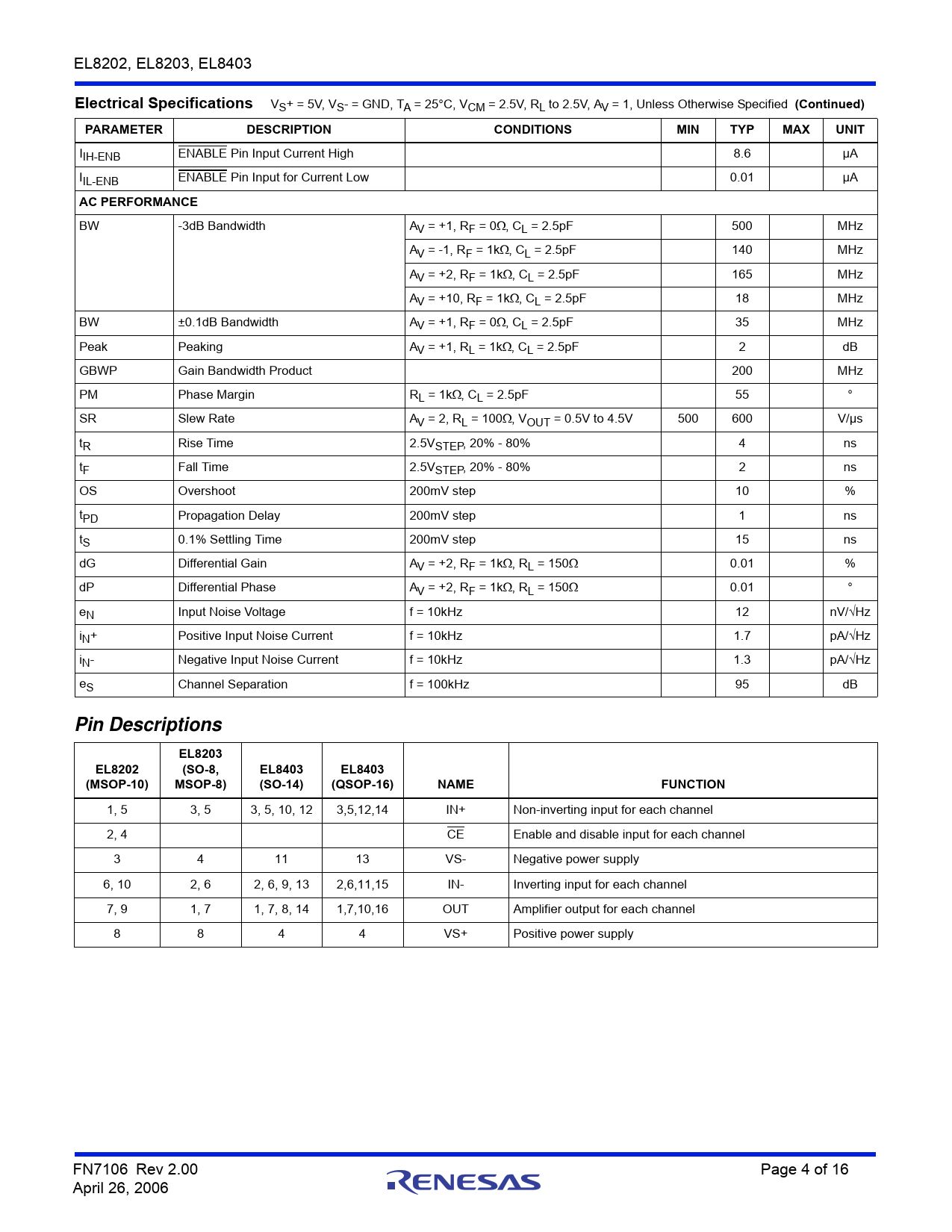

EL8202, EL8203, EL8403
Electrical Specifications
VS+ = 5V, VS- = GND, TA = 25°C, VCM = 2.5V, RL to 2.5V, AV = 1, Unless Otherwise Specified
(Continued) PARAMETER DESCRIPTION CONDITIONS MIN TYP MAX UNIT
IIH-ENB ENABLE Pin Input Current High 8.6 µA IIL-ENB ENABLE Pin Input for Current Low 0.01 µA
AC PERFORMANCE
BW -3dB Bandwidth AV = +1, RF = 0, CL = 2.5pF 500 MHz AV = -1, RF = 1k, CL = 2.5pF 140 MHz AV = +2, RF = 1k, CL = 2.5pF 165 MHz AV = +10, RF = 1k, CL = 2.5pF 18 MHz BW ±0.1dB Bandwidth AV = +1, RF = 0, CL = 2.5pF 35 MHz Peak Peaking AV = +1, RL = 1k, CL = 2.5pF 2 dB GBWP Gain Bandwidth Product 200 MHz PM Phase Margin RL = 1k, CL = 2.5pF 55 ° SR Slew Rate AV = 2, RL = 100, VOUT = 0.5V to 4.5V 500 600 V/µs tR Rise Time 2.5VSTEP, 20% - 80% 4 ns tF Fall Time 2.5VSTEP, 20% - 80% 2 ns OS Overshoot 200mV step 10 % tPD Propagation Delay 200mV step 1 ns tS 0.1% Settling Time 200mV step 15 ns dG Differential Gain AV = +2, RF = 1k, RL = 150 0.01 % dP Differential Phase AV = +2, RF = 1k, RL = 150 0.01 ° eN Input Noise Voltage f = 10kHz 12 nV/Hz iN+ Positive Input Noise Current f = 10kHz 1.7 pA/Hz iN- Negative Input Noise Current f = 10kHz 1.3 pA/Hz eS Channel Separation f = 100kHz 95 dB
Pin Descriptions EL8203 EL8202 (SO-8, EL8403 EL8403 (MSOP-10) MSOP-8) (SO-14) (QSOP-16) NAME FUNCTION
1, 5 3, 5 3, 5, 10, 12 3,5,12,14 IN+ Non-inverting input for each channel 2, 4 CE Enable and disable input for each channel 3 4 11 13 VS- Negative power supply 6, 10 2, 6 2, 6, 9, 13 2,6,11,15 IN- Inverting input for each channel 7, 9 1, 7 1, 7, 8, 14 1,7,10,16 OUT Amplifier output for each channel 8 8 4 4 VS+ Positive power supply FN7106 Rev 2.00 Page 4 of 16 April 26, 2006
