Dual-In-Line Plastic Packages (PDIP). E16.3 (JEDEC MS-001-BB ISSUE D). 16 LEAD DUAL-IN-LINE PLASTIC PACKAGE. INDEX. 1 2 3. N/2
该数据表的模型线
文件文字版本

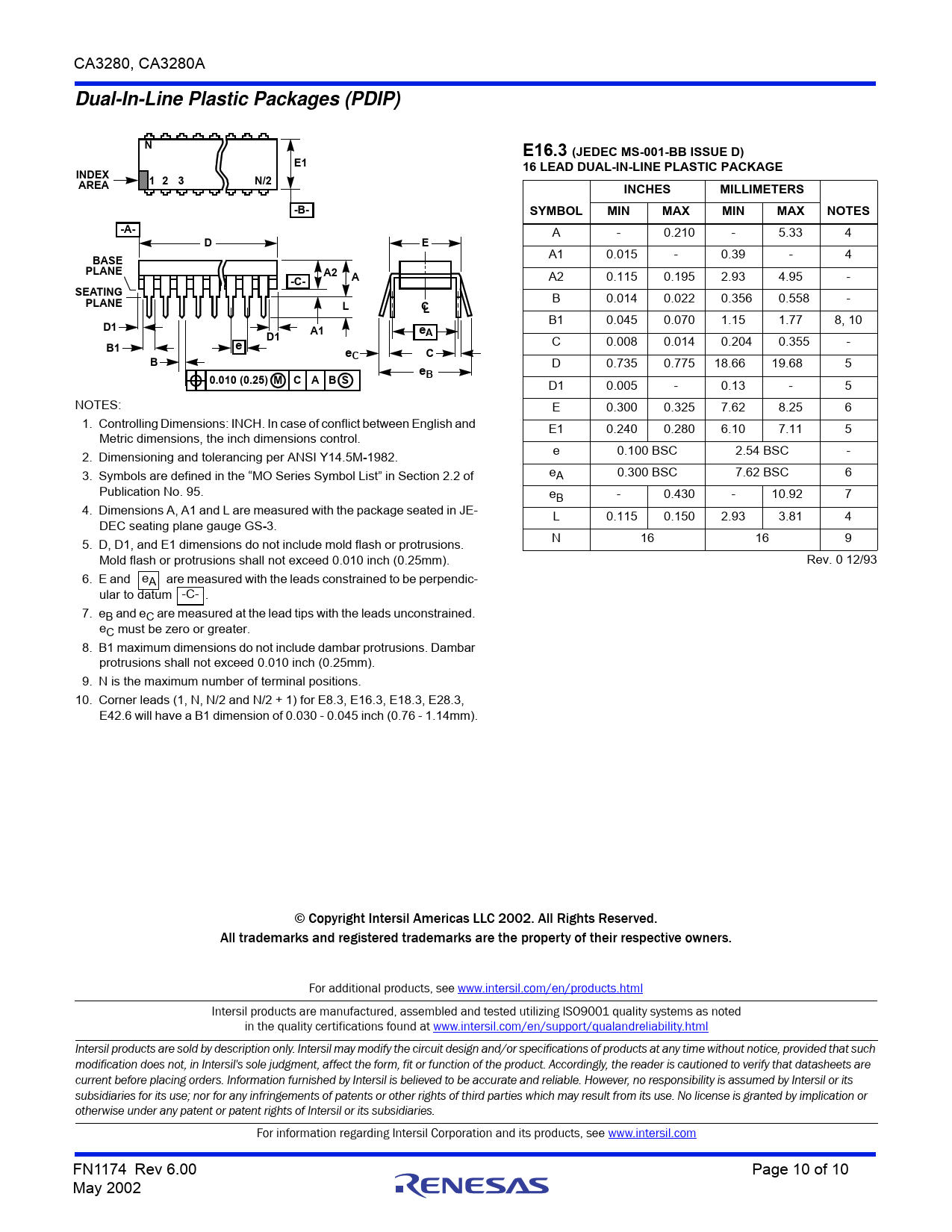

CA3280, CA3280A
Dual-In-Line Plastic Packages (PDIP) N E16.3 (JEDEC MS-001-BB ISSUE D) E1 16 LEAD DUAL-IN-LINE PLASTIC PACKAGE INDEX 1 2 3 N/2 AREA INCHES MILLIMETERS -B- SYMBOL MIN MAX MIN MAX NOTES -A-
A - 0.210 - 5.33 4
D E BASE
A1 0.015 - 0.39 - 4
PLANE A2 -C- A
A2 0.115 0.195 2.93 4.95 -
SEATING PLANE
B 0.014 0.022 0.356 0.558 -
L CL
B1 0.045 0.070 1.15 1.77 8, 10
D1 A1 eA D1 B1 e
C 0.008 0.014 0.204 0.355 -
e C C B
D 0.735 0.775 18.66 19.68 5
eB 0.010 (0.25) M C A B S
D1 0.005 - 0.13 - 5 NOTES: E 0.300 0.325 7.62 8.25 6 1. Controlling Dimensions: INCH. In case of conflict between English and E1 0.240 0.280 6.10 7.11 5 Metric dimensions, the inch dimensions control. 2. Dimensioning and tolerancing per ANSI Y14.5M
-
1982. e 0.100 BSC 2.54 BSC - 3. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of eA 0.300 BSC 7.62 BSC 6 Publication No. 95. eB - 0.430 - 10.92 7 4. Dimensions A, A1 and L are measured with the package seated in JE- L 0.115 0.150 2.93 3.81 4 DEC seating plane gauge GS
-
3. 5. D, D1, and E1 dimensions do not include mold flash or protrusions. N 16 16 9 Mold flash or protrusions shall not exceed 0.010 inch (0.25mm). Rev. 0 12/93 6. E and eA are measured with the leads constrained to be perpendic- ular to datum -C- . 7. eB and eC are measured at the lead tips with the leads unconstrained. eC must be zero or greater. 8. B1 maximum dimensions do not include dambar protrusions. Dambar protrusions shall not exceed 0.010 inch (0.25mm). 9. N is the maximum number of terminal positions. 10. Corner leads (1, N, N/2 and N/2 + 1) for E8.3, E16.3, E18.3, E28.3, E42.6 will have a B1 dimension of 0.030 - 0.045 inch (0.76 - 1.14mm). © Copyright Intersil Americas LLC 2002. All Rights Reserved. All trademarks and registered trademarks are the property of their respective owners. For additional products, see www.intersil.com/en/products.html Intersil products are manufactured, assembled and tested utilizing ISO9001 quality systems as noted in the quality certifications found at www.intersil.com/en/support/qualandreliability.html Intersil products are sold by description only. Intersil may modify the circuit design and/or specifications of products at any time without notice, provided that such modification does not, in Intersil's sole judgment, affect the form, fit or function of the product. Accordingly, the reader is cautioned to verify that datasheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries. For information regarding Intersil Corporation and its products, see www.intersil.com FN1174 Rev 6.00 Page 10 of 10 May 2002
