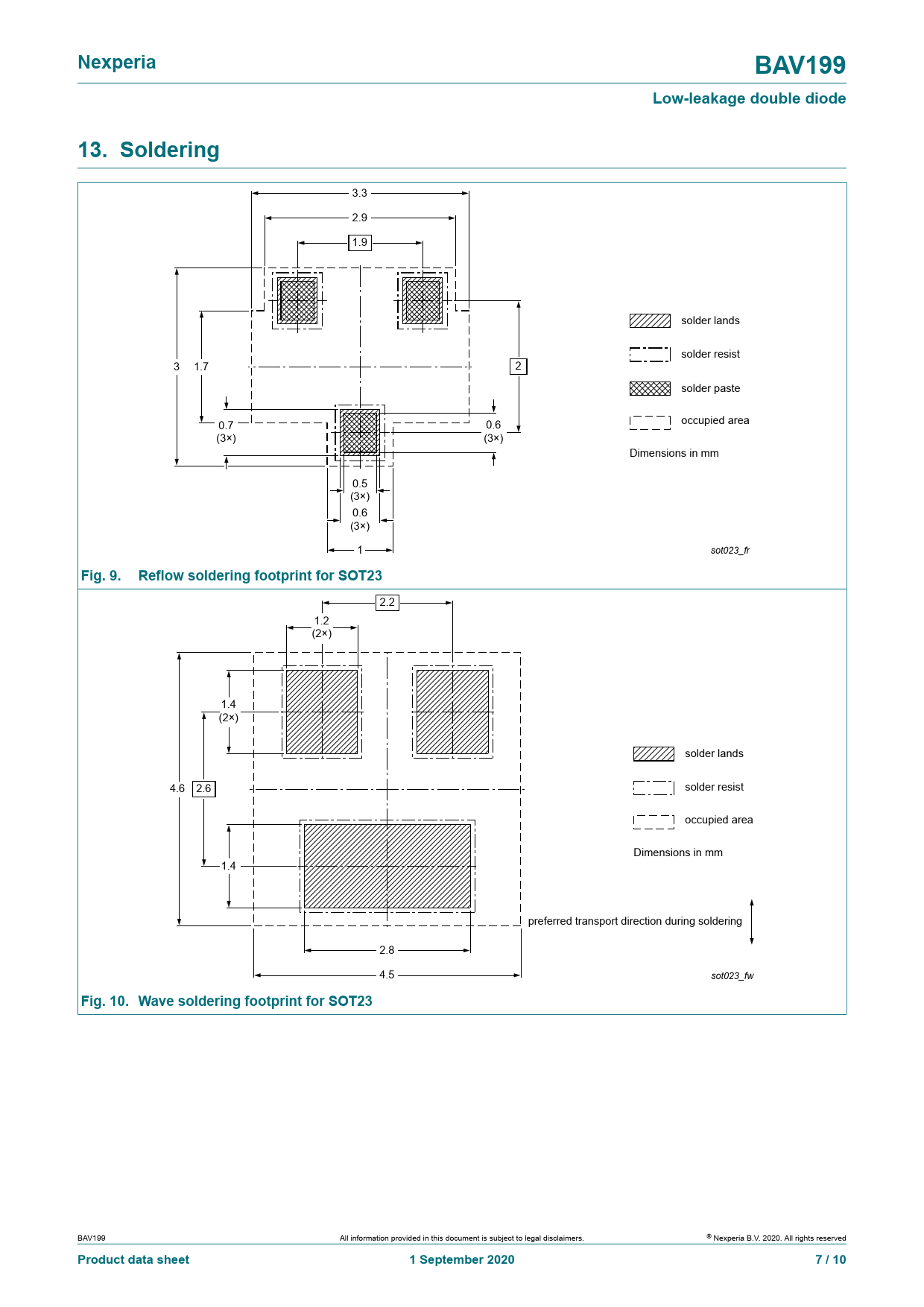

Nexperia. BAV199. Low-leakage double diode. 13. Soldering. Fig. 9. Reflow soldering footprint for SOT23
该数据表的模型线
文件文字版本
Nexperia BAV199 Low-leakage double diode 13. Soldering
3.3 2.9 1.9 solder lands solder resist 3 1.7 2 solder paste occupied area 0.7 0.6 (3×) (3×) Dimensions in mm 0.5 (3×) 0.6 (3×) 1 sot023_fr
Fig. 9. Reflow soldering footprint for SOT23
2.2 1.2 (2×) 1.4 (2×) solder lands 4.6 2.6 solder resist occupied area Dimensions in mm 1.4 preferred transport direction during soldering 2.8 4.5 sot023_fw
Fig. 10. Wave soldering footprint for SOT23
BAV199 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 1 September 2020 7 / 10
