Datasheet MBD701, MMBD701L, SMMBD701L (ON Semiconductor) - 4
| 制造商 | ON Semiconductor |
| 描述 | Silicon Hot-Carrier Diodes Schottky Barrier Diodes |
| 页数 / 页 | 6 / 4 — PACKAGE DIMENSIONS. TO−92 (TO−226). CASE 182−06. ISSUE L. DATE … |
| 修订版 | 7 |
| 文件格式/大小 | PDF / 188 Kb |
| 文件语言 | 英语 |
PACKAGE DIMENSIONS. TO−92 (TO−226). CASE 182−06. ISSUE L. DATE 04/18/1998. SCALE 1:1. SEATING. PLANE. INCHES. MILLIMETERS. DIM. MIN. MAX. X X
该数据表的模型线
文件文字版本

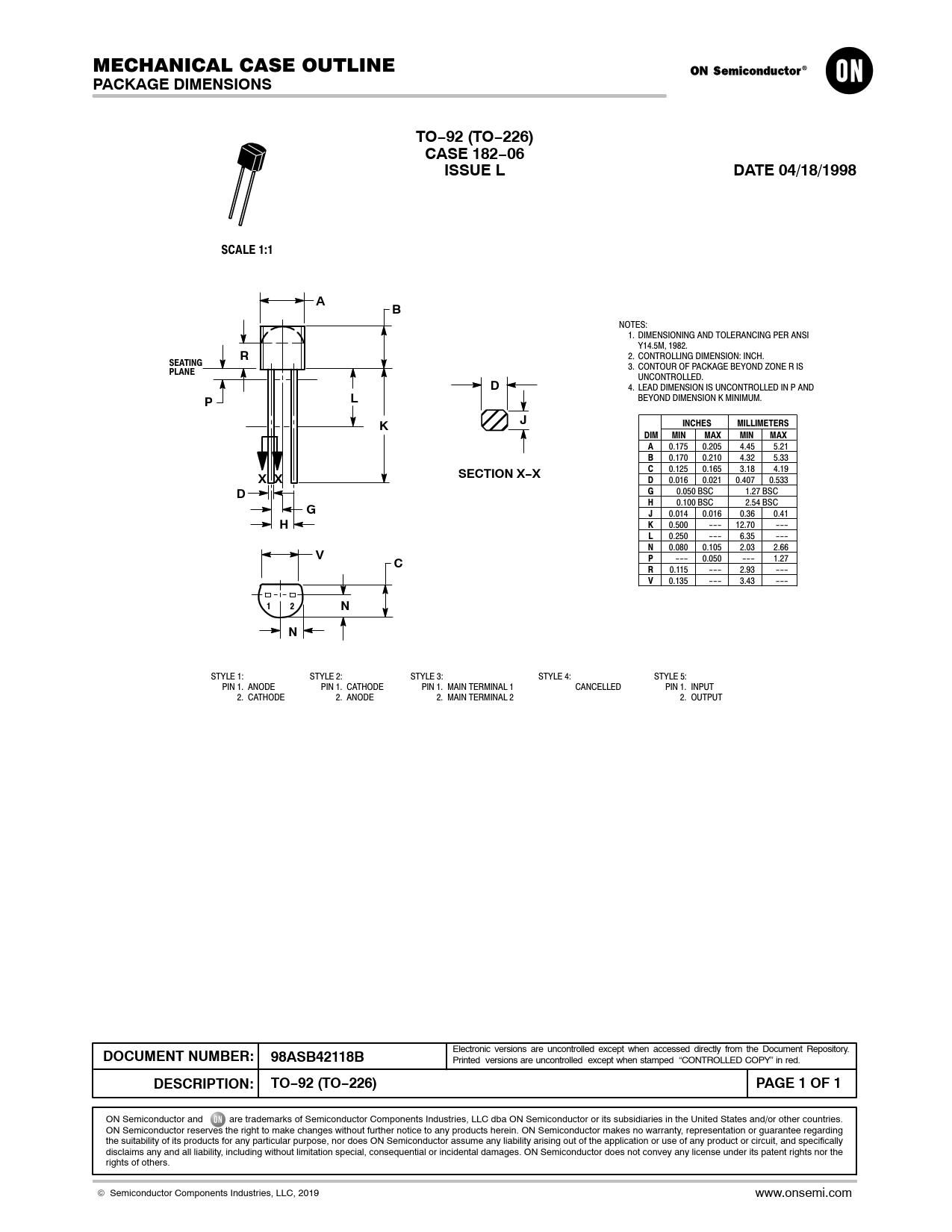

MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS TO−92 (TO−226) CASE 182−06 ISSUE L DATE 04/18/1998 SCALE 1:1 A B
NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.
R
2. CONTROLLING DIMENSION: INCH.
SEATING
3. CONTOUR OF PACKAGE BEYOND ZONE R IS
PLANE
UNCONTROLLED.
D
4. LEAD DIMENSION IS UNCONTROLLED IN P AND
L
BEYOND DIMENSION K MINIMUM.
P K J INCHES MILLIMETERS
ÉÉ
DIM MIN MAX MIN MAX A
0.175 0.205 4.45 5.21 ÉÉ
B
0.170 0.210 4.32 5.33
C
0.125 0.165 3.18 4.19
X X SECTION X−X D
0.016 0.021 0.407 0.533
D G
0.050 BSC 1.27 BSC
G H
0.100 BSC 2.54 BSC
J
0.014 0.016 0.36 0.41
H K
0.500 --- 12.70 ---
L
0.250 --- 6.35 ---
V N
0.080 0.105 2.03 2.66
C P
--- 0.050 --- 1.27
R
0.115 --- 2.93 ---
V
0.135 --- 3.43 ---
1 2 N N
STYLE 1: STYLE 2: STYLE 3: STYLE 4: STYLE 5: PIN 1. ANODE PIN 1. CATHODE PIN 1. MAIN TERMINAL 1 CANCELLED PIN 1. INPUT 2. CATHODE 2. ANODE 2. MAIN TERMINAL 2 2. OUTPUT
DOCUMENT NUMBER: 98ASB42118B
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: TO−92 (TO−226) PAGE 1 OF 1
ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com
