Datasheet MPS2369, MPS2369A (ON Semiconductor) - 4
| 制造商 | ON Semiconductor |
| 描述 | Switching Transistors NPN Silicon |
| 页数 / 页 | 5 / 4 — MPS2369 MPS2369A. Figure 1. ton Circuit. Figure 2. toff Circuit. Figure … |
| 修订版 | 2 |
| 文件格式/大小 | PDF / 103 Kb |
| 文件语言 | 英语 |

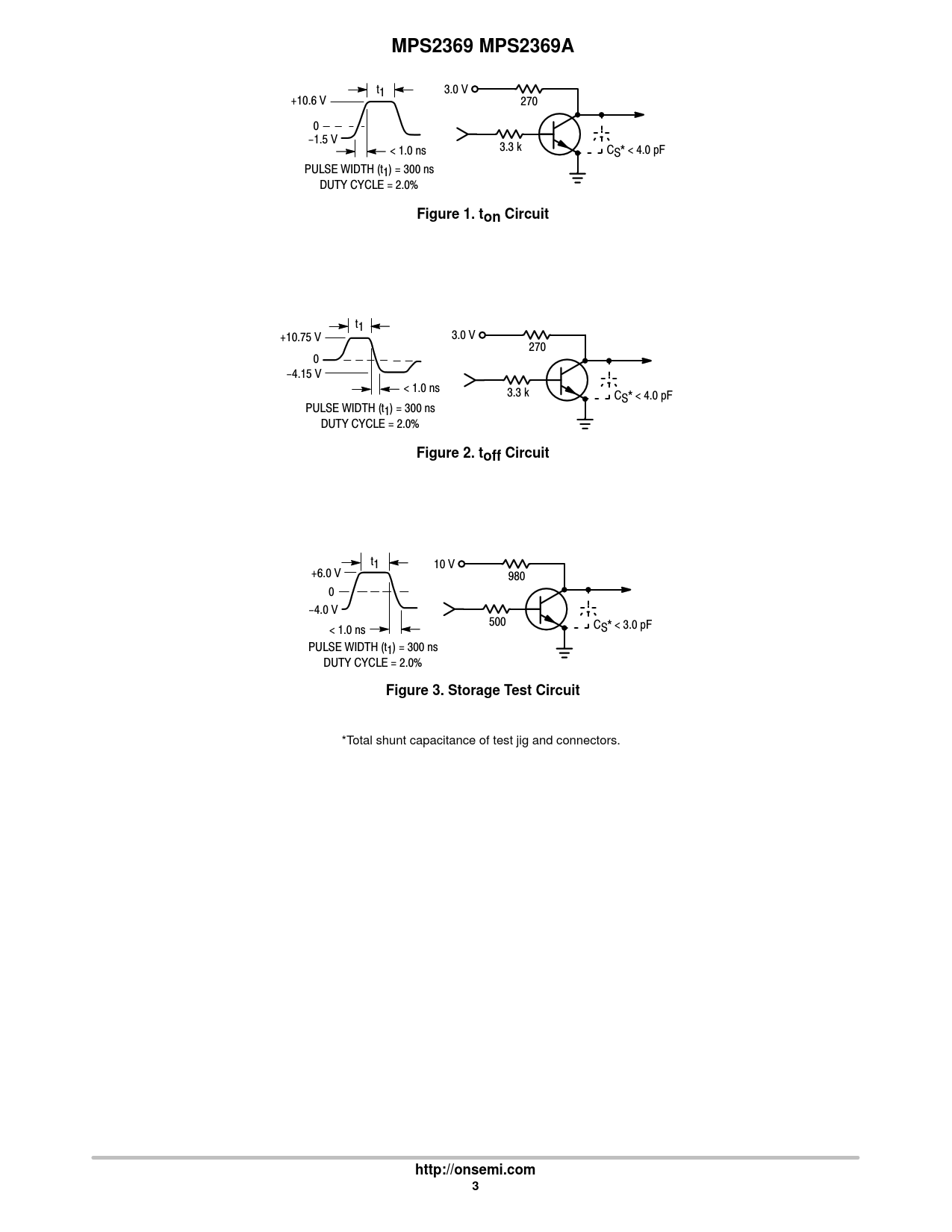

MPS2369 MPS2369A. Figure 1. ton Circuit. Figure 2. toff Circuit. Figure 3. Storage Test Circuit. http://onsemi.com
该数据表的模型线
文件文字版本
MPS2369 MPS2369A
t1 3.0 V +10.6 V 270 0 -1.5 V < 1.0 ns 3.3 k CS* < 4.0 pF PULSE WIDTH (t1) = 300 ns DUTY CYCLE = 2.0%
Figure 1. ton Circuit
t1 +10.75 V 3.0 V 270 0 -4.15 V < 1.0 ns 3.3 k CS* < 4.0 pF PULSE WIDTH (t1) = 300 ns DUTY CYCLE = 2.0%
Figure 2. toff Circuit
t1 10 V +6.0 V 980 0 -4.0 V 500 < 1.0 ns CS* < 3.0 pF PULSE WIDTH (t1) = 300 ns DUTY CYCLE = 2.0%
Figure 3. Storage Test Circuit
*Total shunt capacitance of test jig and connectors.
http://onsemi.com 3
