QSE773 — Sidelooker Pin Photodiode. QSE773 Sidelooker Pin Photodiode. Features. Description. Package Dimensions. Schematic. Notes:
该数据表的模型线
文件文字版本

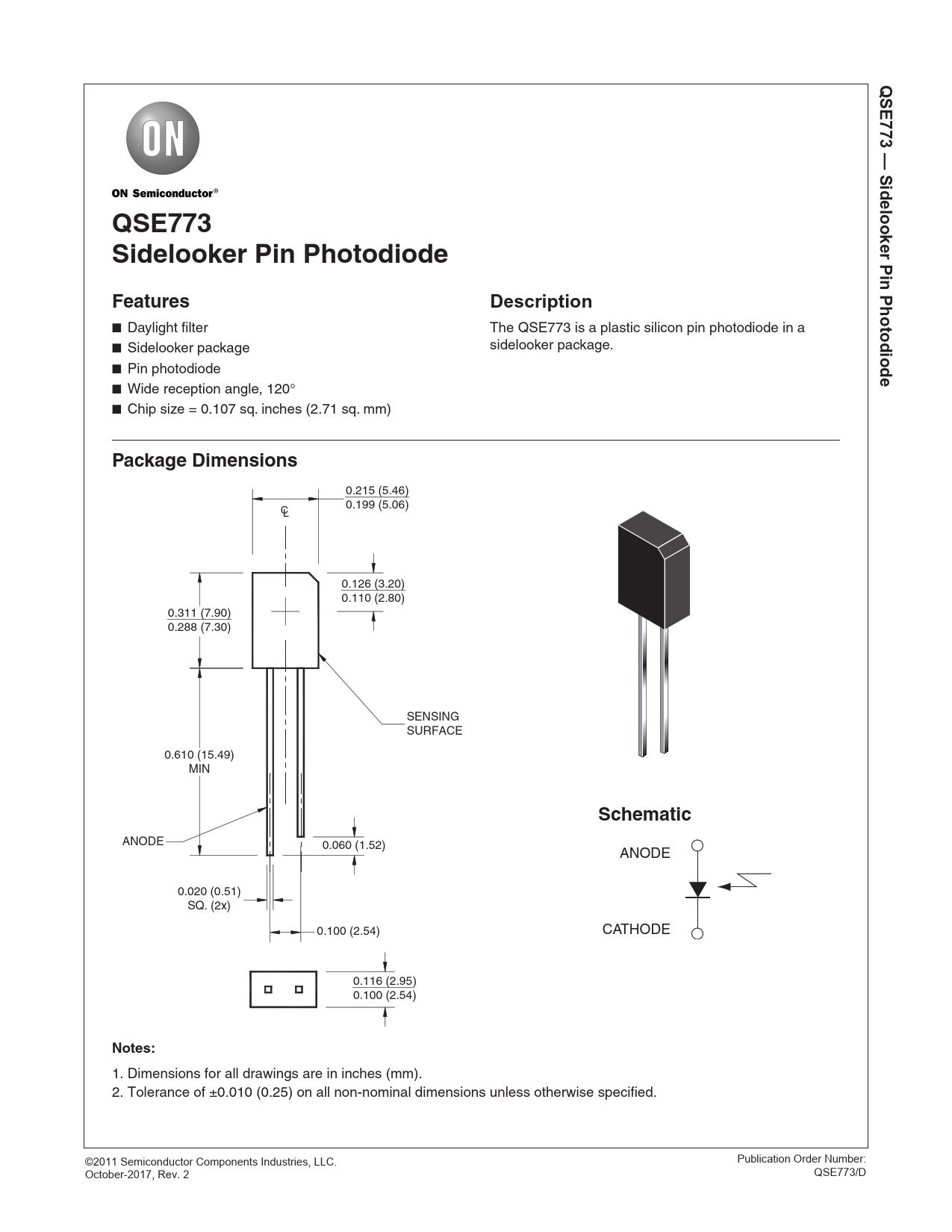

QSE773 — Sidelooker Pin Photodiode QSE773 Sidelooker Pin Photodiode Features Description
■ Daylight filter The QSE773 is a plastic silicon pin photodiode in a ■ Sidelooker package sidelooker package. ■ Pin photodiode ■ Wide reception angle, 120° ■ Chip size = 0.107 sq. inches (2.71 sq. mm)
Package Dimensions
0.215 (5.46) 0.199 (5.06) C L 0.126 (3.20) 0.110 (2.80) 0.311 (7.90) 0.288 (7.30) SENSING SURFACE 0.610 (15.49) MIN
Schematic
ANODE 0.060 (1.52) ANODE 0.020 (0.51) SQ. (2x) 0.100 (2.54) CATHODE 0.116 (2.95) 0.100 (2.54)
Notes:
1. Dimensions for all drawings are in inches (mm). 2. Tolerance of ±0.010 (0.25) on all non-nominal dimensions unless otherwise specified. ©2011 Semiconductor Components Industries, LLC. Publication Order Number: October-2017, Rev. 2 QSE773/D
