Electrical data. VIPER17. Symbol. Parameter. Test condition. Min. Typ. Max. Unit. Oscillator section. Overcurrent protection (2nd OCP)
该数据表的模型线
文件文字版本
link to page 8 link to page 8 link to page 8

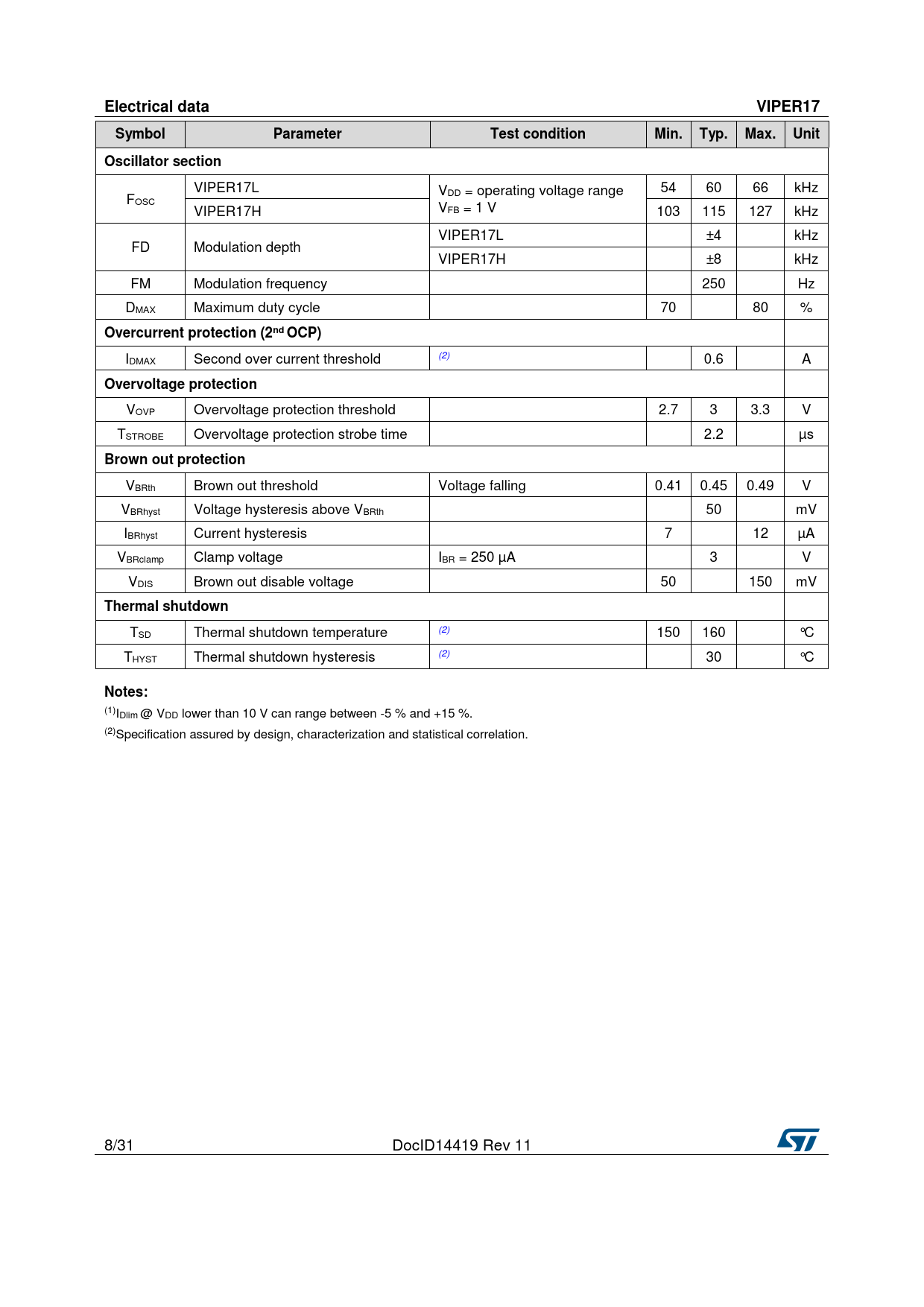

Electrical data VIPER17 Symbol Parameter Test condition Min. Typ. Max. Unit Oscillator section
VIPER17L V 54 60 66 kHz DD = operating voltage range FOSC VFB = 1 V VIPER17H 103 115 127 kHz VIPER17L ±4 kHz FD Modulation depth VIPER17H ±8 kHz FM Modulation frequency 250 Hz DMAX Maximum duty cycle 70 80 %
Overcurrent protection (2nd OCP)
IDMAX Second over current threshold (2) 0.6 A
Overvoltage protection
VOVP Overvoltage protection threshold 2.7 3 3.3 V TSTROBE Overvoltage protection strobe time 2.2 µs
Brown out protection
VBRth Brown out threshold Voltage falling 0.41 0.45 0.49 V VBRhyst Voltage hysteresis above VBRth 50 mV IBRhyst Current hysteresis 7 12 µA VBRclamp Clamp voltage IBR = 250 µA 3 V VDIS Brown out disable voltage 50 150 mV
Thermal shutdown
TSD Thermal shutdown temperature (2) 150 160 °C THYST Thermal shutdown hysteresis (2) 30 °C
Notes:
(1)IDlim @ VDD lower than 10 V can range between -5 % and +15 %. (2)Specification assured by design, characterization and statistical correlation. 8/31 DocID14419 Rev 11
Electrical data VIPER17 Symbol Parameter Test condition Min. Typ. Max. Unit Oscillator section
VIPER17L V 54 60 66 kHz DD = operating voltage range FOSC VFB = 1 V VIPER17H 103 115 127 kHz VIPER17L ±4 kHz FD Modulation depth VIPER17H ±8 kHz FM Modulation frequency 250 Hz DMAX Maximum duty cycle 70 80 %
Overcurrent protection (2nd OCP)
IDMAX Second over current threshold (2) 0.6 A
Overvoltage protection
VOVP Overvoltage protection threshold 2.7 3 3.3 V TSTROBE Overvoltage protection strobe time 2.2 µs
Brown out protection
VBRth Brown out threshold Voltage falling 0.41 0.45 0.49 V VBRhyst Voltage hysteresis above VBRth 50 mV IBRhyst Current hysteresis 7 12 µA VBRclamp Clamp voltage IBR = 250 µA 3 V VDIS Brown out disable voltage 50 150 mV
Thermal shutdown
TSD Thermal shutdown temperature (2) 150 160 °C THYST Thermal shutdown hysteresis (2) 30 °C
Notes:
(1)IDlim @ VDD lower than 10 V can range between -5 % and +15 %. (2)Specification assured by design, characterization and statistical correlation. 8/31 DocID14419 Rev 11
