PACKAGE DIMENSIONS. POWERMITE. SCALE 4:1. GENERIC. MARKING DIAGRAMS*. STYLE 1. STYLE 2. STYLE 3. DOCUMENT NUMBER: 98ASB14853C
该数据表的模型线
MBRM120L
文件文字版本
MECHANICAL CASE OUTLINE

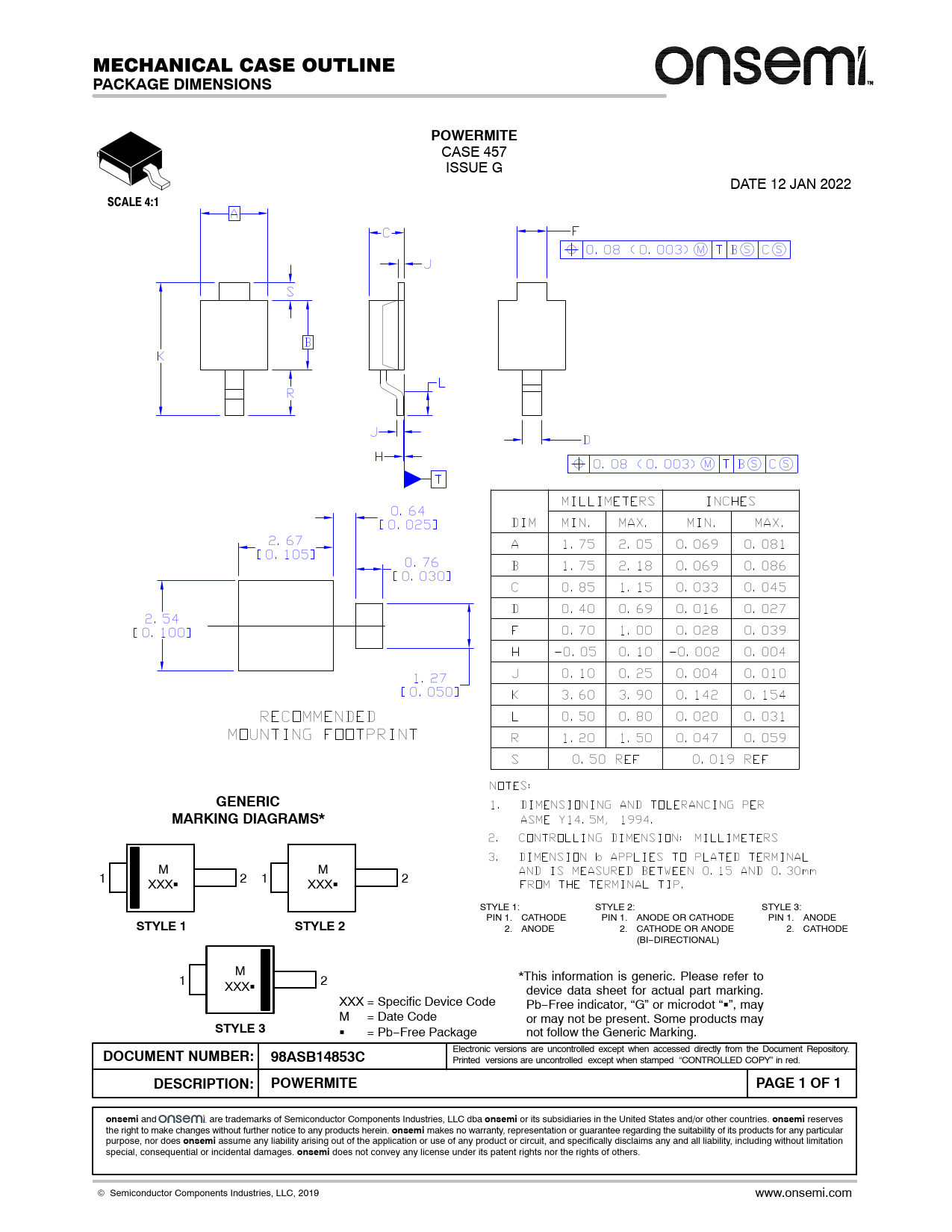

PACKAGE DIMENSIONS POWERMITE
CASE 457 ISSUE G DATE 12 JAN 2022
SCALE 4:1 GENERIC MARKING DIAGRAMS*
M M 1 2 1 XXXG XXXG 2 STYLE 1: STYLE 2: STYLE 3: PIN 1. CATHODE PIN 1. ANODE OR CATHODE PIN 1. ANODE
STYLE 1 STYLE 2
2. ANODE 2. CATHODE OR ANODE 2. CATHODE (BI−DIRECTIONAL) M 1 *This information is generic. Please refer to XXXG 2 device data sheet for actual part marking. XXX = Specific Device Code Pb−Free indicator, “G” or microdot “G”, may M = Date Code or may not be present. Some products may
STYLE 3
G = Pb−Free Package not follow the Generic Marking.
DOCUMENT NUMBER: 98ASB14853C
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: POWERMITE PAGE 1 OF 1 onsemi
