| 制造商 | ON Semiconductor |
| 描述 | TMOS E−FET High Energy Power FET N−Channel Enhancement−Mode Silicon Gate |
| 页数 / 页 | 9 / 2 — N−Channel Enhancement−Mode Silicon. Gate. http://onsemi.com. TMOS POWER … |
| 文件格式/大小 | PDF / 292 Kb |
| 文件语言 | 英语 |
N−Channel Enhancement−Mode Silicon. Gate. http://onsemi.com. TMOS POWER FET. 3.0 AMPERES, 600 VOLTS. RDS(on) = 2.2. TO-220AB
该数据表的模型线
MTP3N60E
文件文字版本

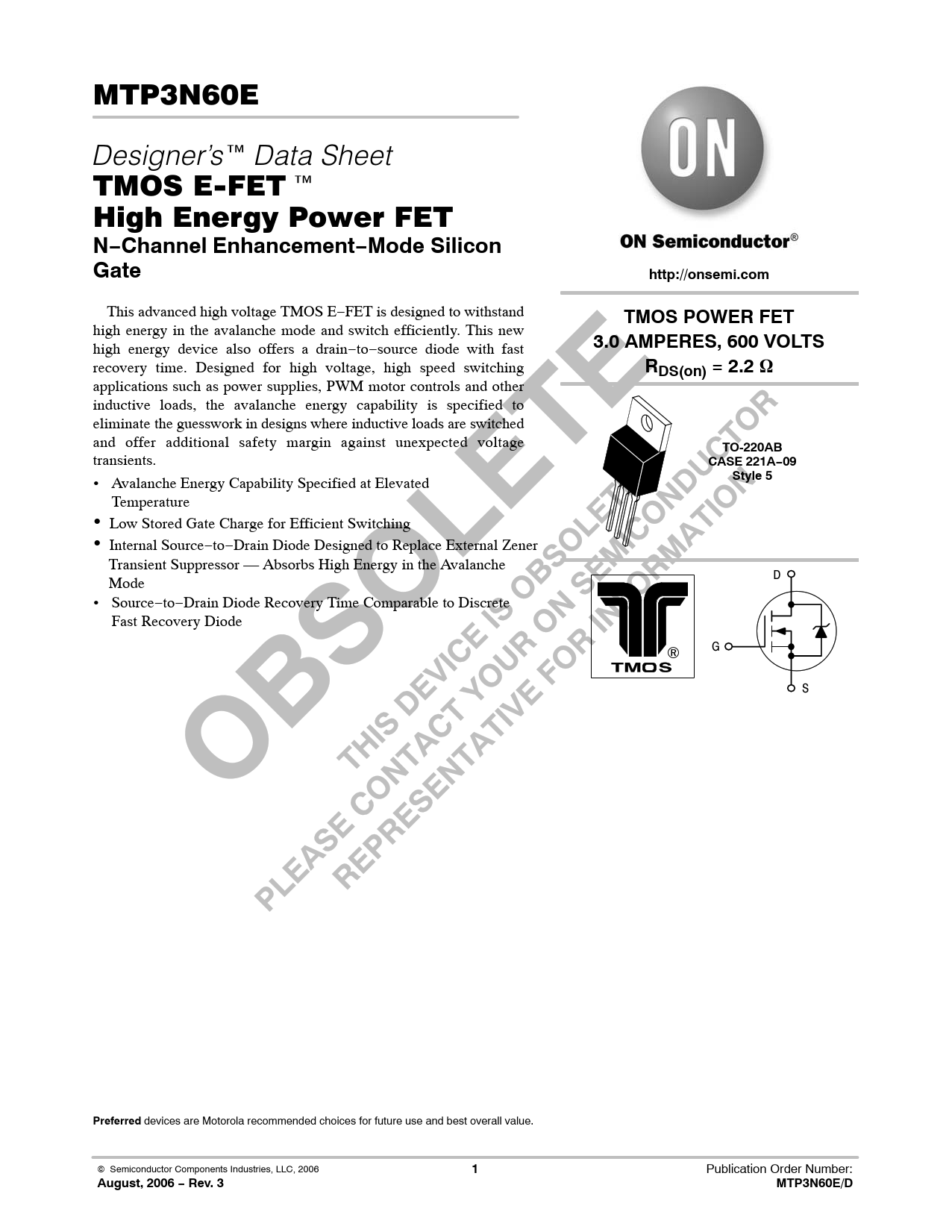

MTP3N60E Designer’s™ Data Sheet TMOS E−FET.™ High Energy Power FET
N−Channel Enhancement−Mode Silicon Gate http://onsemi.com
This advanced high voltage TMOS E−FET is designed to withstand
TMOS POWER FET
high energy in the avalanche mode and switch efficiently. This new high energy device also offers a drain−to−source diode with fast
3.0 AMPERES, 600 VOLTS
recovery time. Designed for high voltage, high speed switching
RDS(on) = 2.2
W applications such as power supplies, PWM motor controls and other inductive loads, the avalanche energy capability is specified to eliminate the guesswork in designs where inductive loads are switched and offer additional safety margin against unexpected voltage
TO-220AB
transients.
CASE 221A−09 Style 5
• Avalanche Energy Capability Specified at Elevated Temperature • Low Stored Gate Charge for Efficient Switching • Internal Source−to−Drain Diode Designed to Replace External Zener Transient Suppressor — Absorbs High Energy in the Avalanche Mode D • Source−to−Drain Diode Recovery Time Comparable to Discrete Fast Recovery Diode ® G S
