Datasheet TSV782 (STMicroelectronics) - 2
| 制造商 | STMicroelectronics |
| 描述 | High bandwidth (30 MHz) low offset (200 µV) rail-to-rail 5 V op amp |
| 页数 / 页 | 31 / 2 — TSV782. Pin description. 1.1. TSV782 dual operational amplifier. Figure … |
| 文件格式/大小 | PDF / 8.4 Mb |
| 文件语言 | 英语 |
TSV782. Pin description. 1.1. TSV782 dual operational amplifier. Figure 1. Pin connections (top view). Table 1. Pin description
该数据表的模型线
文件文字版本

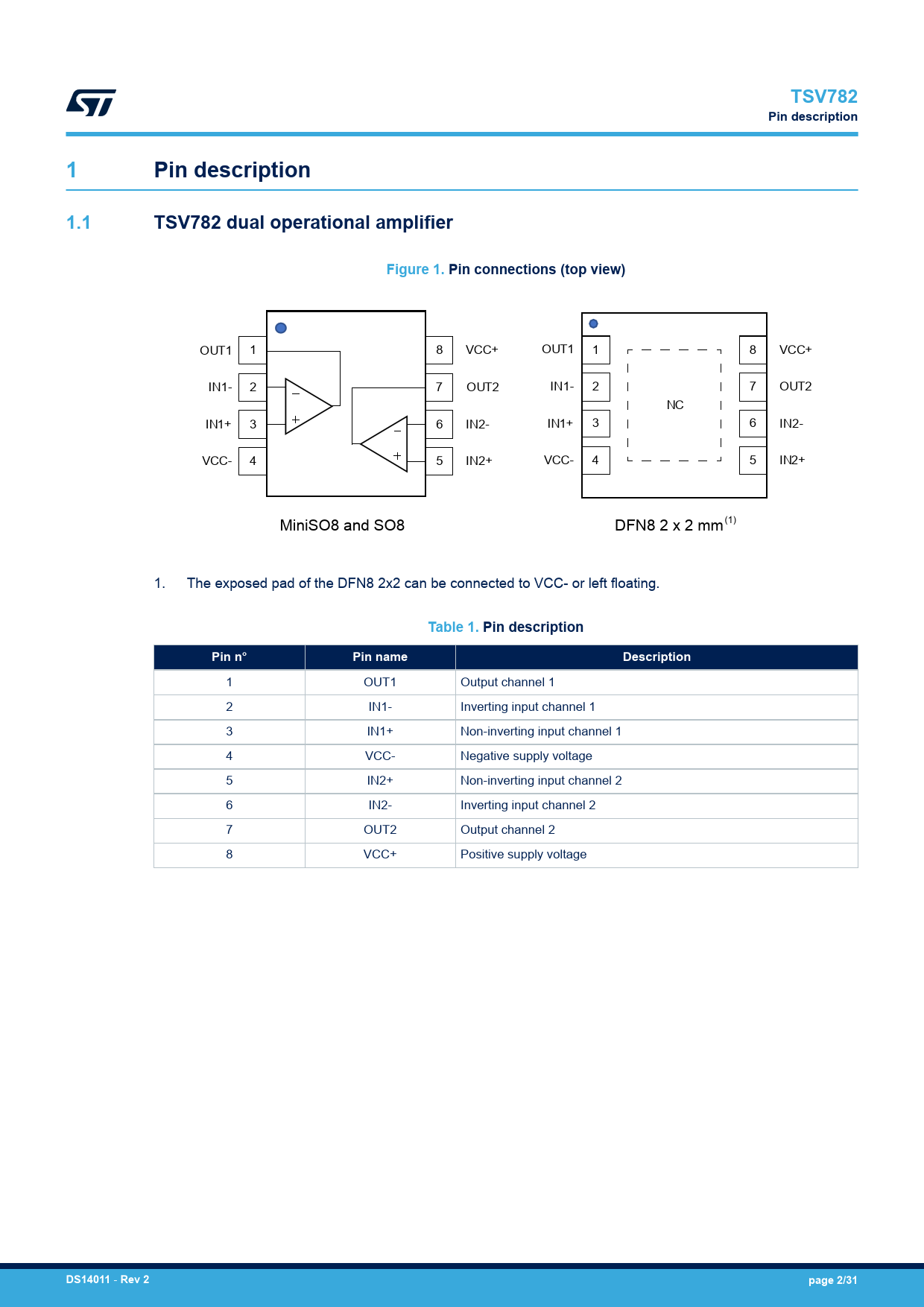

TSV782 Pin description 1 Pin description 1.1 TSV782 dual operational amplifier Figure 1. Pin connections (top view)
OUT1 1 8 VCC+ OUT1 1 8 VCC+ IN1- 2 7 OUT2 IN1- 2 7 OUT2 NC IN1+ 3 6 IN2- IN1+ 3 6 IN2- VCC- 4 5 IN2+ VCC- 4 5 IN2+ MiniSO8 and SO8 DFN8 2 x 2 mm(1) 1. The exposed pad of the DFN8 2x2 can be connected to VCC- or left floating.
Table 1. Pin description Pin n° Pin name Description
1 OUT1 Output channel 1 2 IN1- Inverting input channel 1 3 IN1+ Non-inverting input channel 1 4 VCC- Negative supply voltage 5 IN2+ Non-inverting input channel 2 6 IN2- Inverting input channel 2 7 OUT2 Output channel 2 8 VCC+ Positive supply voltage
DS14011
-
Rev 2 page 2/31
Document Outline Features Applications Description 1 Pin description 1.1 TSV782 dual operational amplifier 2 Absolute maximum ratings and operating conditions 3 Electrical characteristics 4 Typical performance characteristics 5 Application information 5.1 Operating voltages 5.2 Input offset voltage drift over the temperature 5.3 Long term input offset voltage drift 5.4 Unused channel 5.5 EMI rejection 5.6 Maximum power dissipation 5.7 Capacitive load and stability 5.8 Resistor values for high speed op amp design 5.9 PCB layout recommendations 5.10 Decoupling capacitor 5.11 Macromodel 6 Typical applications 6.1 Low-side current sensing 6.2 Photodiode transimpedance amplification 7 Package information 7.1 DFN8 2x2 package information 7.2 MiniSO8 package information 7.3 SO8 package information 8 Ordering information Revision history
