5th-Order, Lowpass, Switched-Capacitor Filters. Table 1. MAX7410/MAX7414 Typical Harmonic Distortion
该数据表的模型线
文件文字版本

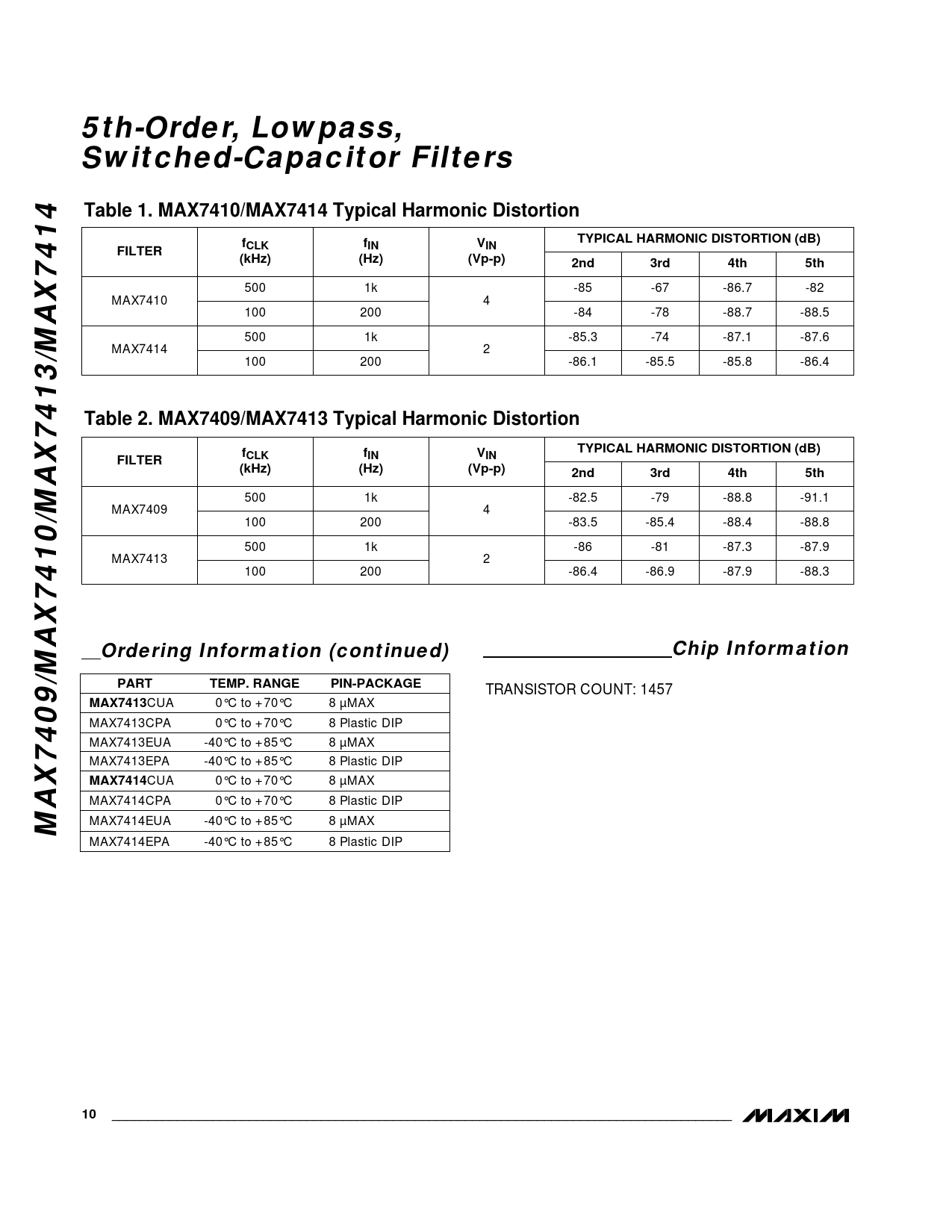

5th-Order, Lowpass, Switched-Capacitor Filters Table 1. MAX7410/MAX7414 Typical Harmonic Distortion f TYPICAL HARMONIC DISTORTION (dB) CLK fIN VIN FILTER (kHz) (Hz) (Vp-p) 2nd 3rd 4th 5th
500 1k -85 -67 -86.7 -82 MAX7410 4 100 200 -84 -78 -88.7 -88.5 500 1k -85.3 -74 -87.1 -87.6 MAX7414 2 100 200 -86.1 -85.5 -85.8 -86.4
Table 2. MAX7409/MAX7413 Typical Harmonic Distortion f TYPICAL HARMONIC DISTORTION (dB) CLK fIN VIN FILTER (kHz) (Hz) (Vp-p) 2nd 3rd 4th 5th
500 1k -82.5 -79 -88.8 -91.1 MAX7409 4 100 200 -83.5 -85.4 -88.4 -88.8 500 1k -86 -81 -87.3 -87.9 MAX7413 2 100 200 -86.4 -86.9 -87.9 -88.3
Ordering Information (continued) Chip Information PART TEMP. RANGE PIN-PACKAGE
TRANSISTOR COUNT: 1457
MAX7413
CUA 0°C to +70°C 8 µMAX MAX7413CPA 0°C to +70°C 8 Plastic DIP MAX7413EUA -40°C to +85°C 8 µMAX MAX7413EPA -40°C to +85°C 8 Plastic DIP
MAX7414
CUA 0°C to +70°C 8 µMAX MAX7414CPA 0°C to +70°C 8 Plastic DIP
MAX7409/MAX7410/MAX7413/MAX7414
MAX7414EUA -40°C to +85°C 8 µMAX MAX7414EPA -40°C to +85°C 8 Plastic DIP
10 ______________________________________________________________________________________
