Datasheet CAT5112 (ON Semiconductor) - 8
| 制造商 | ON Semiconductor |
| 描述 | 32‐tap Digital Potentiometer (POT) with Buffered Wiper |
| 页数 / 页 | 11 / 8 — CAT5112. PACKAGE DIMENSIONS. SOIC 8, 150 mils. SYMBOL. MIN. NOM. MAX. TOP … |
| 文件格式/大小 | PDF / 230 Kb |
| 文件语言 | 英语 |
CAT5112. PACKAGE DIMENSIONS. SOIC 8, 150 mils. SYMBOL. MIN. NOM. MAX. TOP VIEW. SIDE VIEW. END VIEW. Notes:. http://onsemi.com
该数据表的模型线
文件文字版本

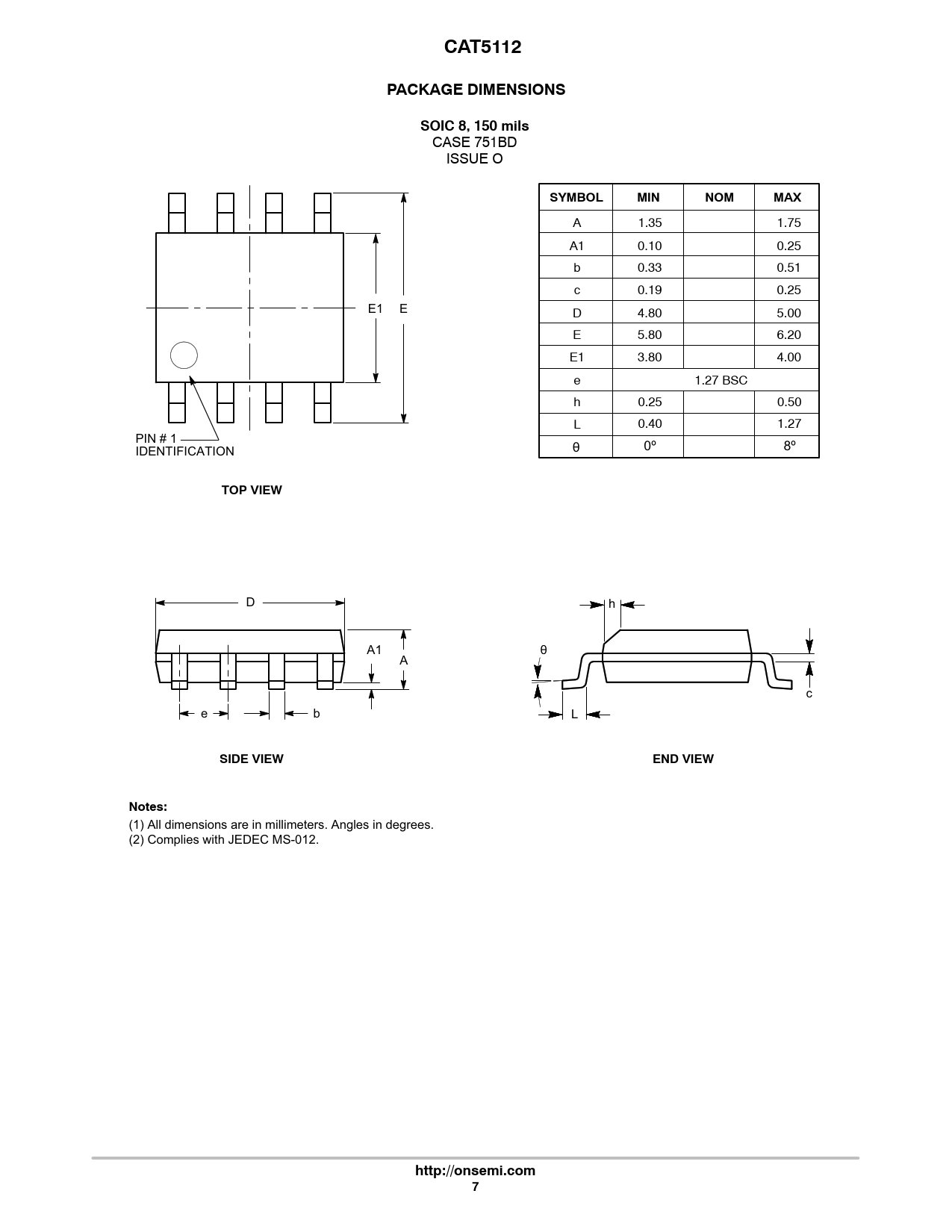

CAT5112 PACKAGE DIMENSIONS SOIC 8, 150 mils
CASE 751BD ISSUE O
SYMBOL MIN NOM MAX
A 1.35 1.75 A1 0.10 0.25 b 0.33 0.51 c 0.19 0.25 E1 E D 4.80 5.00 E 5.80 6.20 E1 3.80 4.00 e 1.27 BSC h 0.25 0.50 L 0.40 1.27 PIN # 1 IDENTIFICATION θ 0º 8º
TOP VIEW
D h A1 θ A c e b L
SIDE VIEW END VIEW Notes:
(1) All dimensions are in millimeters. Angles in degrees. (2) Complies with JEDEC MS-012.
http://onsemi.com 7
CASE 751BD ISSUE O
SYMBOL MIN NOM MAX
A 1.35 1.75 A1 0.10 0.25 b 0.33 0.51 c 0.19 0.25 E1 E D 4.80 5.00 E 5.80 6.20 E1 3.80 4.00 e 1.27 BSC h 0.25 0.50 L 0.40 1.27 PIN # 1 IDENTIFICATION θ 0º 8º
TOP VIEW
D h A1 θ A c e b L
SIDE VIEW END VIEW Notes:
(1) All dimensions are in millimeters. Angles in degrees. (2) Complies with JEDEC MS-012.
http://onsemi.com 7
