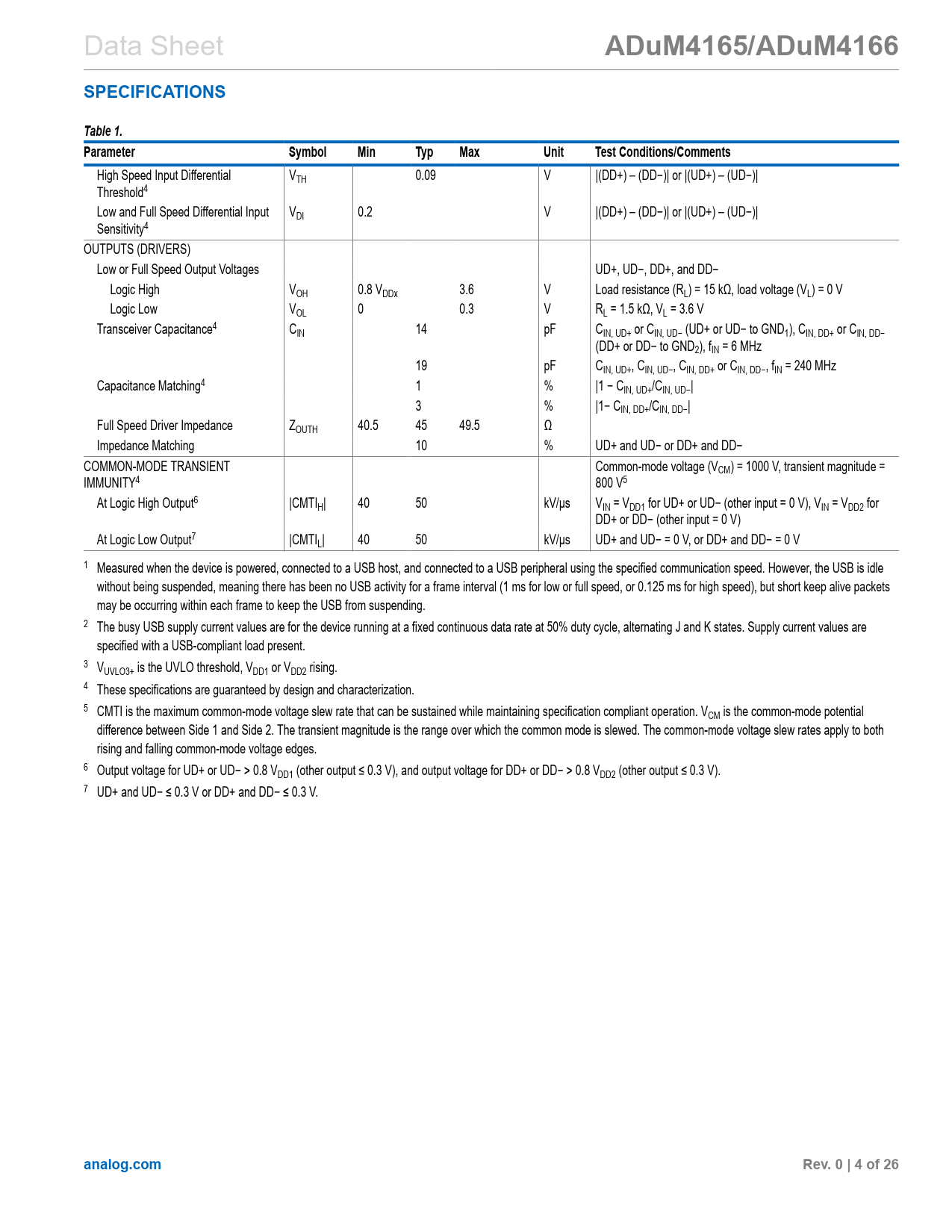

ADuM4165/ADuM4166 SPECIFICATIONS Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
High Speed Input Differential VTH 0.09 V |(DD+) – (DD−)| or |(UD+) – (UD−)| Threshold4 Low and Full Speed Differential Input VDI 0.2 V |(DD+) – (DD−)| or |(UD+) – (UD−)| Sensitivity4 OUTPUTS (DRIVERS) Low or Full Speed Output Voltages UD+, UD−, DD+, and DD− Logic High VOH 0.8 VDDx 3.6 V Load resistance (RL) = 15 kΩ, load voltage (VL) = 0 V Logic Low VOL 0 0.3 V RL = 1.5 kΩ, VL = 3.6 V Transceiver Capacitance4 CIN 14 pF CIN, UD+ or CIN, UD− (UD+ or UD− to GND1), CIN, DD+ or CIN, DD− (DD+ or DD− to GND2), fIN = 6 MHz 19 pF CIN, UD+, CIN, UD−, CIN, DD+ or CIN, DD−, fIN = 240 MHz Capacitance Matching4 1 % |1 − CIN, UD+/CIN, UD−| 3 % |1− CIN, DD+/CIN, DD−| Full Speed Driver Impedance ZOUTH 40.5 45 49.5 Ω Impedance Matching 10 % UD+ and UD− or DD+ and DD− COMMON-MODE TRANSIENT Common-mode voltage (VCM) = 1000 V, transient magnitude = IMMUNITY4 800 V5 At Logic High Output6 |CMTIH| 40 50 kV/µs VIN = VDD1 for UD+ or UD− (other input = 0 V), VIN = VDD2 for DD+ or DD− (other input = 0 V) At Logic Low Output7 |CMTIL| 40 50 kV/µs UD+ and UD− = 0 V, or DD+ and DD− = 0 V 1 Measured when the device is powered, connected to a USB host, and connected to a USB peripheral using the specified communication speed. However, the USB is idle without being suspended, meaning there has been no USB activity for a frame interval (1 ms for low or full speed, or 0.125 ms for high speed), but short keep alive packets may be occurring within each frame to keep the USB from suspending. 2 The busy USB supply current values are for the device running at a fixed continuous data rate at 50% duty cycle, alternating J and K states. Supply current values are specified with a USB-compliant load present. 3 VUVLO3+ is the UVLO threshold, VDD1 or VDD2 rising. 4 These specifications are guaranteed by design and characterization. 5 CMTI is the maximum common-mode voltage slew rate that can be sustained while maintaining specification compliant operation. VCM is the common-mode potential difference between Side 1 and Side 2. The transient magnitude is the range over which the common mode is slewed. The common-mode voltage slew rates apply to both rising and falling common-mode voltage edges. 6 Output voltage for UD+ or UD− > 0.8 VDD1 (other output ≤ 0.3 V), and output voltage for DD+ or DD− > 0.8 VDD2 (other output ≤ 0.3 V). 7 UD+ and UD− ≤ 0.3 V or DD+ and DD− ≤ 0.3 V.
