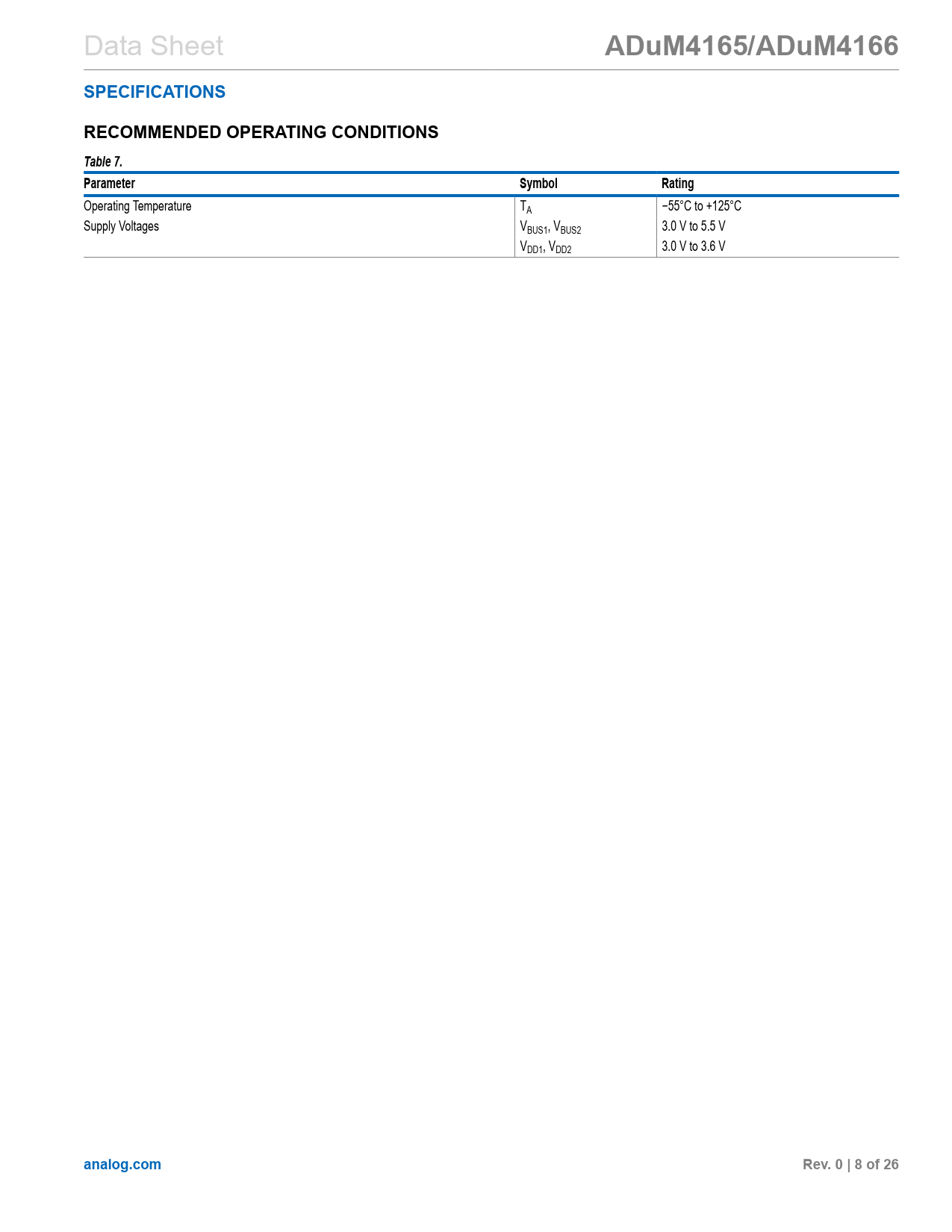

Data Sheet
ADuM4165/ADuM4166 SPECIFICATIONS RECOMMENDED OPERATING CONDITIONS Table 7. Parameter Symbol Rating
Operating Temperature TA −55°C to +125°C Supply Voltages VBUS1, VBUS2 3.0 V to 5.5 V VDD1, VDD2 3.0 V to 3.6 V
analog.com Rev. 0 | 8 of 26
