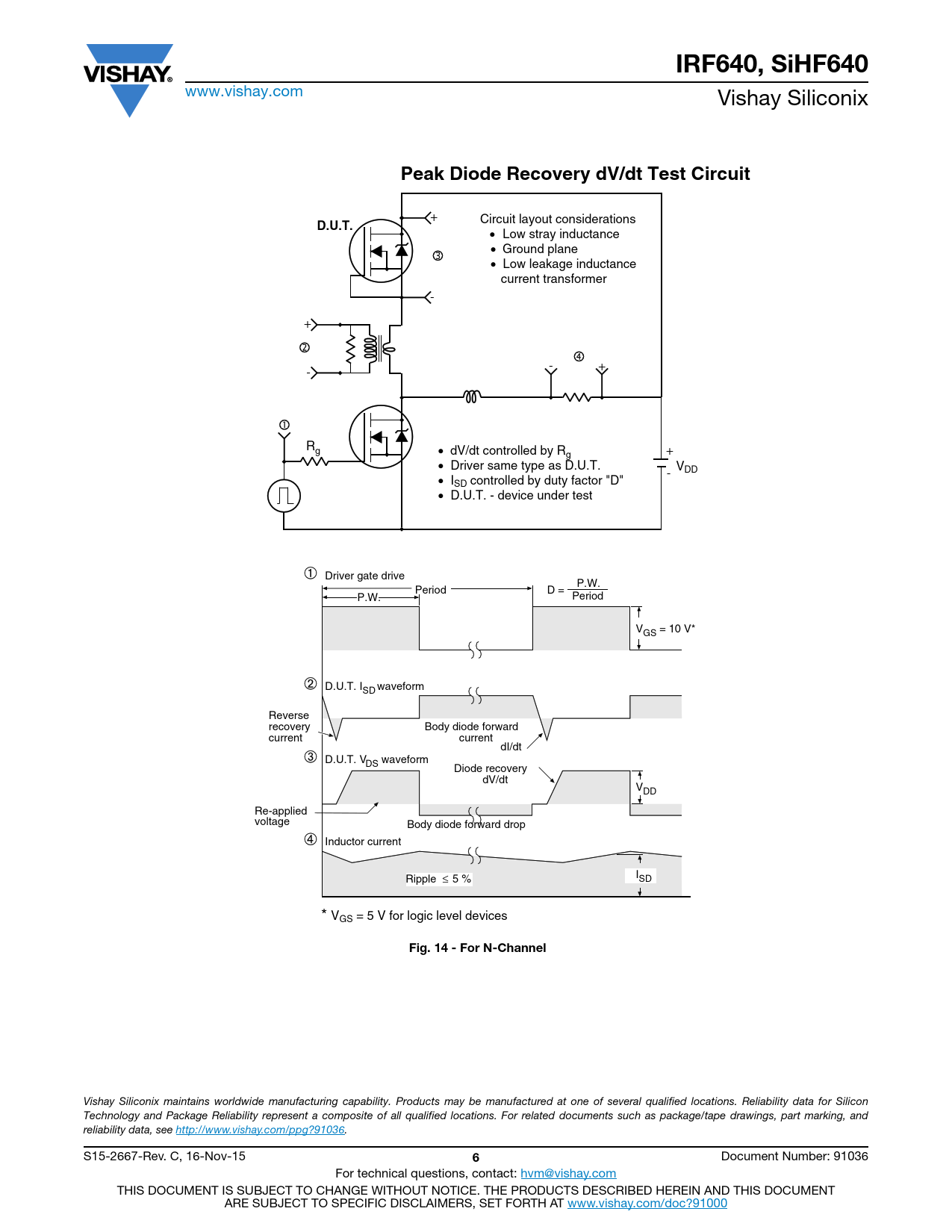

IRF640, SiHF640
www.vishay.com Vishay Siliconix
Peak Diode Recovery dV/dt Test Circuit
+ Circuit layout considerations
D.U.T.
• Low stray inductance • Ground plane • Low leakage inductance current transformer - + - + - Rg • dV/dt controlled by R + g • Driver same type as D.U.T. V - DD • ISD controlled by duty factor "D" • D.U.T. - device under test Driver gate drive P.W. Period D = P.W. Period VGS = 10 V* D.U.T. ISD waveform Reverse recovery Body diode forward current current dI/dt D.U.T. VDS waveform Diode recovery dV/dt VDD Re-applied voltage Body diode forward drop Inductor current Ripple ≤ 5 % ISD * VGS = 5 V for logic level devices
Fig. 14 - For N-Channel
