Datasheet BD135, BD136, BD139, BD140 (STMicroelectronics) - 4

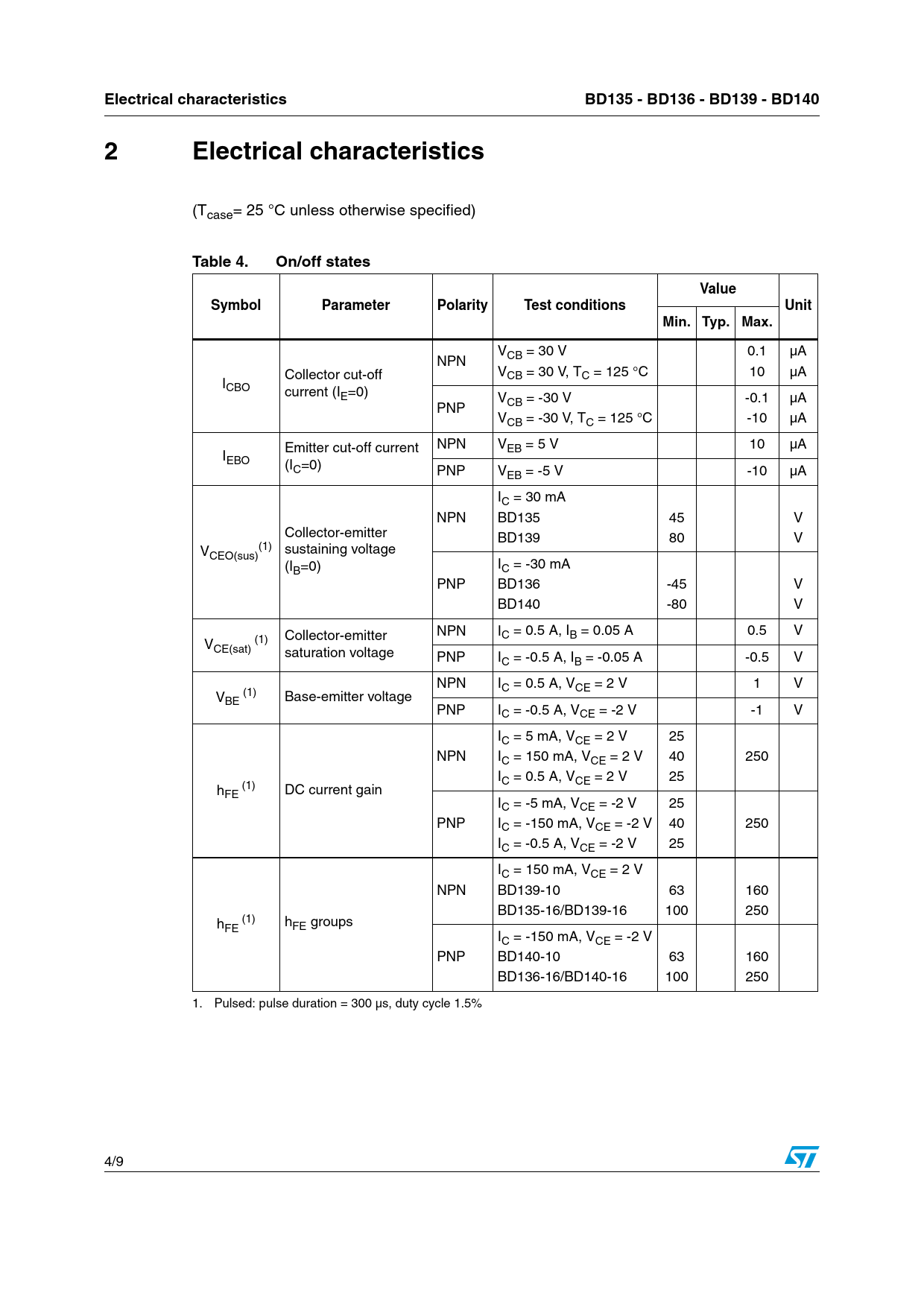

Electrical characteristics BD135 - BD136 - BD139 - BD140 2 Electrical characteristics
(Tcase= 25 °C unless otherwise specified)
Table 4. On/off states Value Symbol Parameter Polarity Test conditions Unit Min. Typ. Max.
V 0.1 µA NPN CB = 30 V Collector cut-off VCB = 30 V, TC = 125 °C 10 µA ICBO current (IE=0) V -0.1 µA PNP CB = -30 V VCB = -30 V, TC = 125 °C -10 µA Emitter cut-off current NPN VEB = 5 V 10 µA IEBO (IC=0) PNP VEB = -5 V -10 µA IC = 30 mA NPN BD135 45 V Collector-emitter BD139 80 V V (1) sustaining voltage CEO(sus) (I I B=0) C = -30 mA PNP BD136 -45 V BD140 -80 V NPN IC = 0.5 A, IB = 0.05 A 0.5 V V (1) Collector-emitter CE(sat) saturation voltage PNP IC = -0.5 A, IB = -0.05 A -0.5 V NPN IC = 0.5 A, VCE = 2 V 1 V V (1) BE Base-emitter voltage PNP IC = -0.5 A, VCE = -2 V -1 V IC = 5 mA, VCE = 2 V 25 NPN IC = 150 mA, VCE = 2 V 40 250 IC = 0.5 A, VCE = 2 V 25 h (1) FE DC current gain IC = -5 mA, VCE = -2 V 25 PNP IC = -150 mA, VCE = -2 V 40 250 IC = -0.5 A, VCE = -2 V 25 IC = 150 mA, VCE = 2 V NPN BD139-10 63 160 BD135-16/BD139-16 100 250 h (1) h FE FE groups IC = -150 mA, VCE = -2 V PNP BD140-10 63 160 BD136-16/BD140-16 100 250 1. Pulsed: pulse duration = 300 µs, duty cycle 1.5% 4/9 Document Outline Figure 1. Internal schematic diagram Table 1. Device summary 1 Electrical ratings Table 2. Absolute maximum ratings Table 3. Thermal data 2 Electrical characteristics Table 4. On/off states 2.1 Electrical characteristics (curves) Figure 2. Safe operating area Figure 3. Derating 3 Package mechanical data 4 Revision history Table 5. Document revision history
