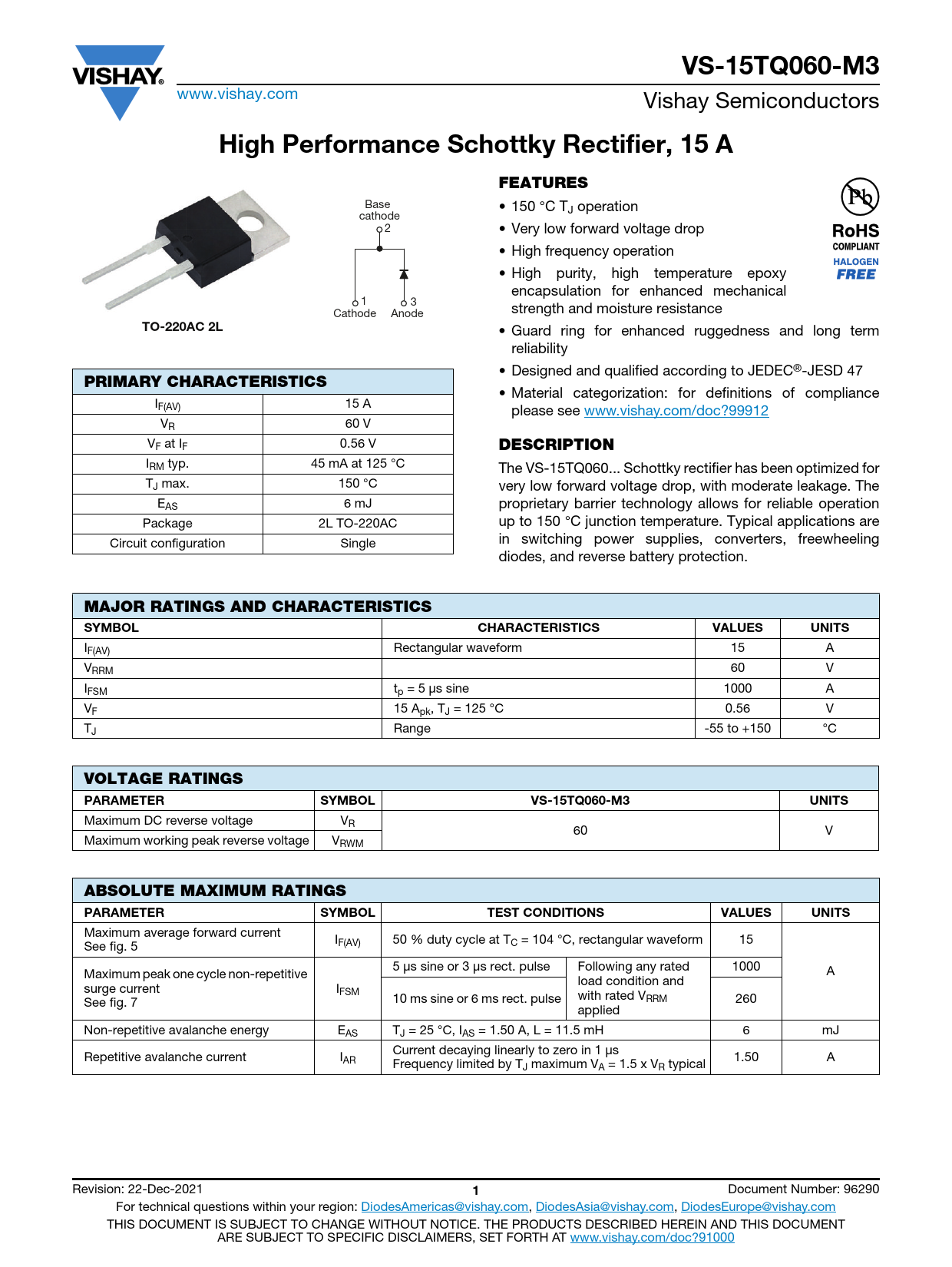

VS-15TQ060-M3. High Performance Schottky Rectifier, 15 A. FEATURES. TO-220AC 2L. PRIMARY CHARACTERISTICS. DESCRIPTION
该数据表的模型线
文件文字版本
VS-15TQ060-M3
www.vishay.com Vishay Semiconductors
High Performance Schottky Rectifier, 15 A FEATURES
Base • 150 °C TJ operation cathode 2 • Very low forward voltage drop • High frequency operation • High purity, high temperature epoxy encapsulation for enhanced mechanical 1 3 strength and moisture resistance Cathode Anode
TO-220AC 2L
• Guard ring for enhanced ruggedness and long term reliability • Designed and qualified according to JEDEC®-JESD 47
PRIMARY CHARACTERISTICS
• Material categorization: for definitions of compliance IF(AV) 15 A please see www.vishay.com/doc?99912 VR 60 V VF at IF 0.56 V
DESCRIPTION
IRM typ. 45 mA at 125 °C The VS-15TQ060... Schottky rectifier has been optimized for TJ max. 150 °C very low forward voltage drop, with moderate leakage. The EAS 6 mJ proprietary barrier technology allows for reliable operation Package 2L TO-220AC up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling Circuit configuration Single diodes, and reverse battery protection.
MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS VALUES UNITS
IF(AV) Rectangular waveform 15 A VRRM 60 V IFSM tp = 5 μs sine 1000 A VF 15 Apk, TJ = 125 °C 0.56 V TJ Range -55 to +150 °C
VOLTAGE RATINGS PARAMETER SYMBOL VS-15TQ060-M3 UNITS
Maximum DC reverse voltage VR 60 V Maximum working peak reverse voltage VRWM
ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average forward current I See fig. 5 F(AV) 50 % duty cycle at TC = 104 °C, rectangular waveform 15 5 μs sine or 3 μs rect. pulse Following any rated 1000 A Maximum peak one cycle non-repetitive load condition and surge current IFSM with rated V See fig. 7 10 ms sine or 6 ms rect. pulse RRM 260 applied Non-repetitive avalanche energy EAS TJ = 25 °C, IAS = 1.50 A, L = 11.5 mH 6 mJ Current decaying linearly to zero in 1 μs Repetitive avalanche current IAR 1.50 A Frequency limited by TJ maximum VA = 1.5 x VR typical Revision: 22-Dec-2021
