Datasheet BYV10-600P (NXP)
| 制造商 | NXP |
| 描述 | Ultrafast Power Diode |
| 页数 / 页 | 9 / 1 — TO-220AC. BYV10-600P. Ultrafast power diode. 30 August 2013. Product data … |
| 文件格式/大小 | PDF / 184 Kb |
| 文件语言 | 英语 |

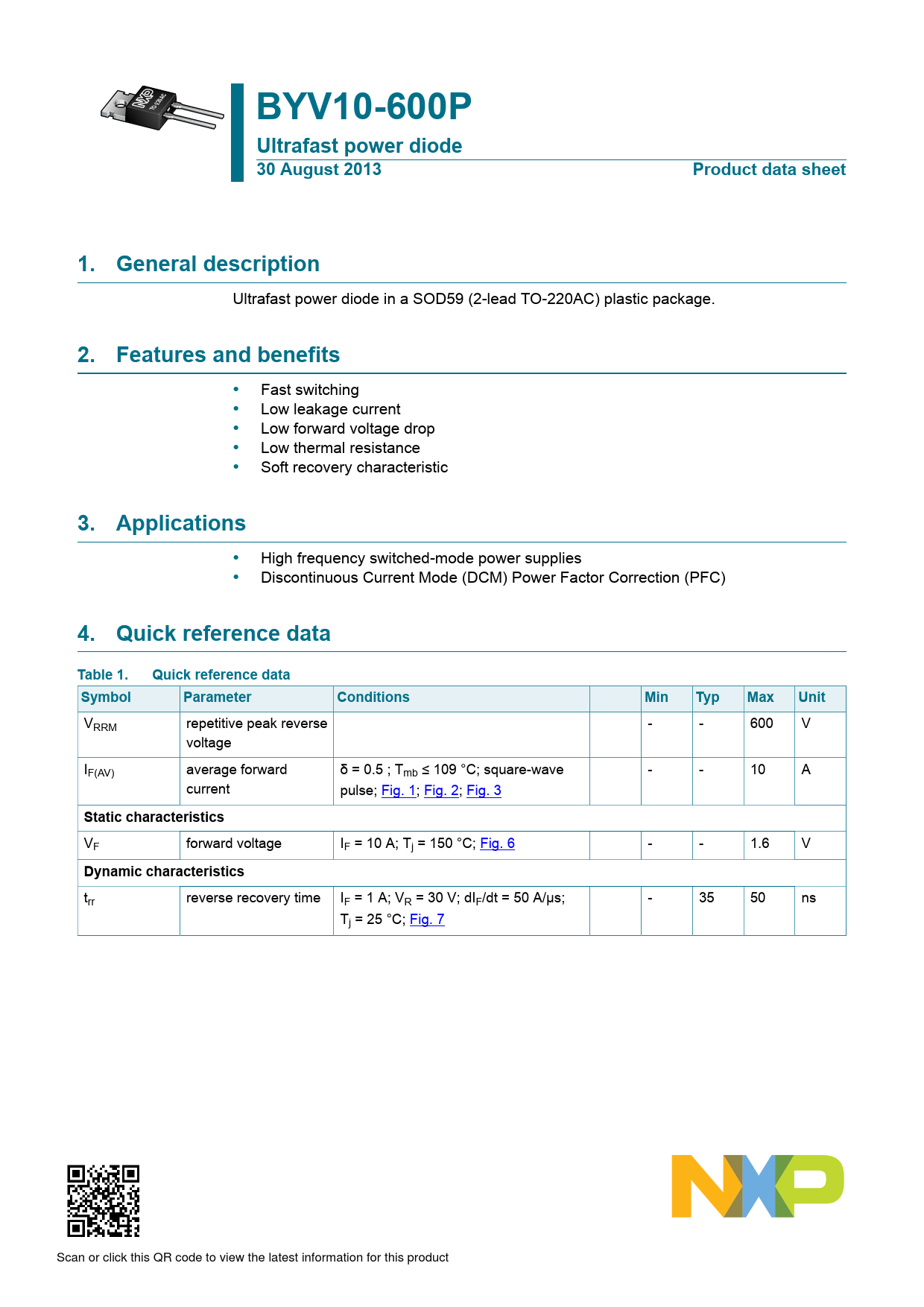

TO-220AC. BYV10-600P. Ultrafast power diode. 30 August 2013. Product data sheet. 1. General description. 2. Features and benefits
该数据表的模型线
BYV10
文件文字版本
link to page 3 link to page 3 link to page 3 link to page 5 link to page 5
TO-220AC BYV10-600P Ultrafast power diode 30 August 2013 Product data sheet 1. General description
Ultrafast power diode in a SOD59 (2-lead TO-220AC) plastic package.
2. Features and benefits
• Fast switching • Low leakage current • Low forward voltage drop • Low thermal resistance • Soft recovery characteristic
3. Applications
• High frequency switched-mode power supplies • Discontinuous Current Mode (DCM) Power Factor Correction (PFC)
4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VRRM repetitive peak reverse - - 600 V voltage IF(AV) average forward δ = 0.5 ; Tmb ≤ 109 °C; square-wave - - 10 A current pulse; Fig. 1; Fig. 2; Fig. 3
Static characteristics
VF forward voltage IF = 10 A; Tj = 150 °C; Fig. 6 - - 1.6 V
Dynamic characteristics
trr reverse recovery time IF = 1 A; VR = 30 V; dIF/dt = 50 A/µs; - 35 50 ns Tj = 25 °C; Fig. 7 Scan or click this QR code to view the latest information for this product Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Package outline 12. Legal information
