Typical DC Performance Characteristics (continued)
Curves are for LF155 and LF156 unless otherwise specified.

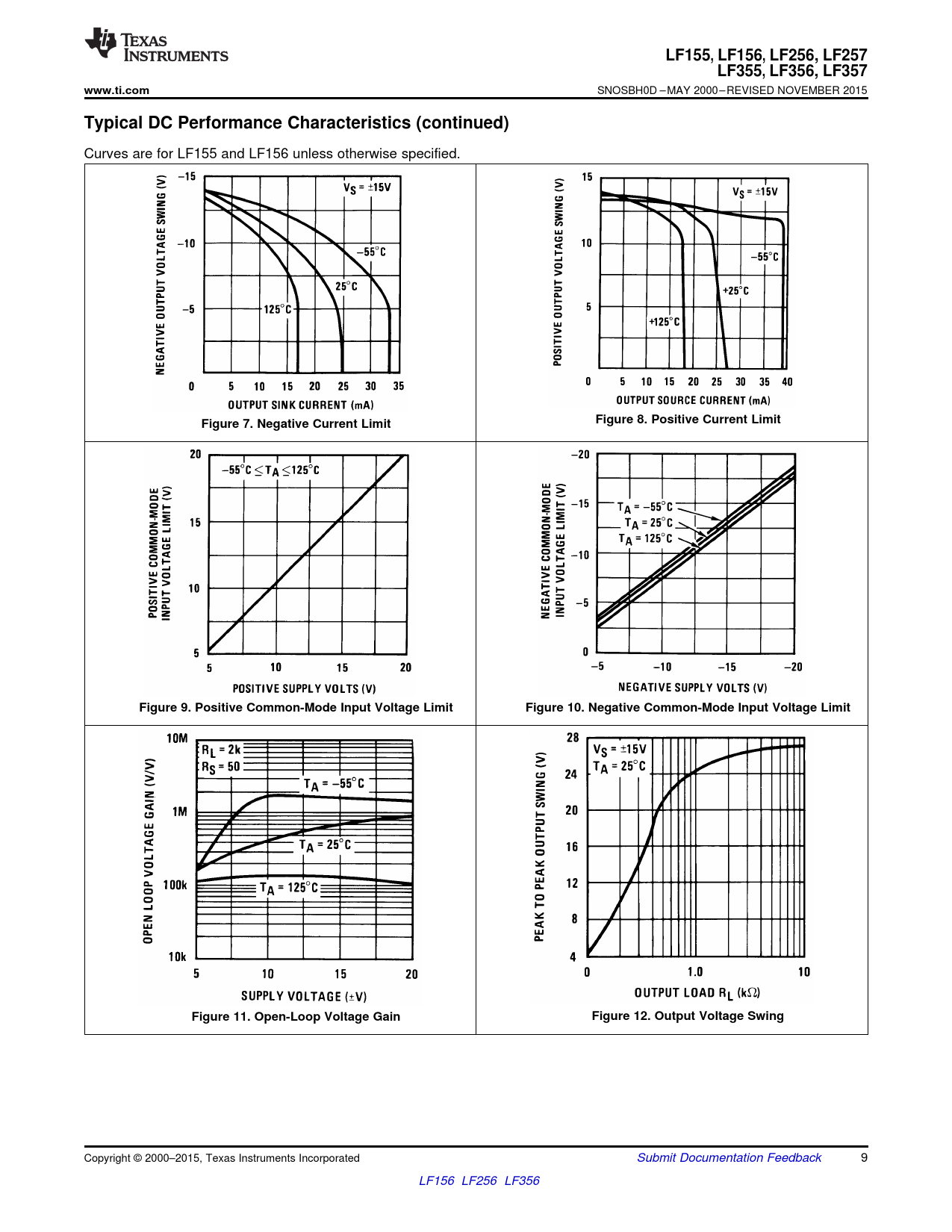

Figure 8. Positive Current Limit Figure 7. Negative Current Limit Figure 9. Positive Common-Mode Input Voltage Limit Figure 10. Negative Common-Mode Input Voltage Limit Figure 11. Open-Loop Voltage Gain Figure 12. Output Voltage Swing
