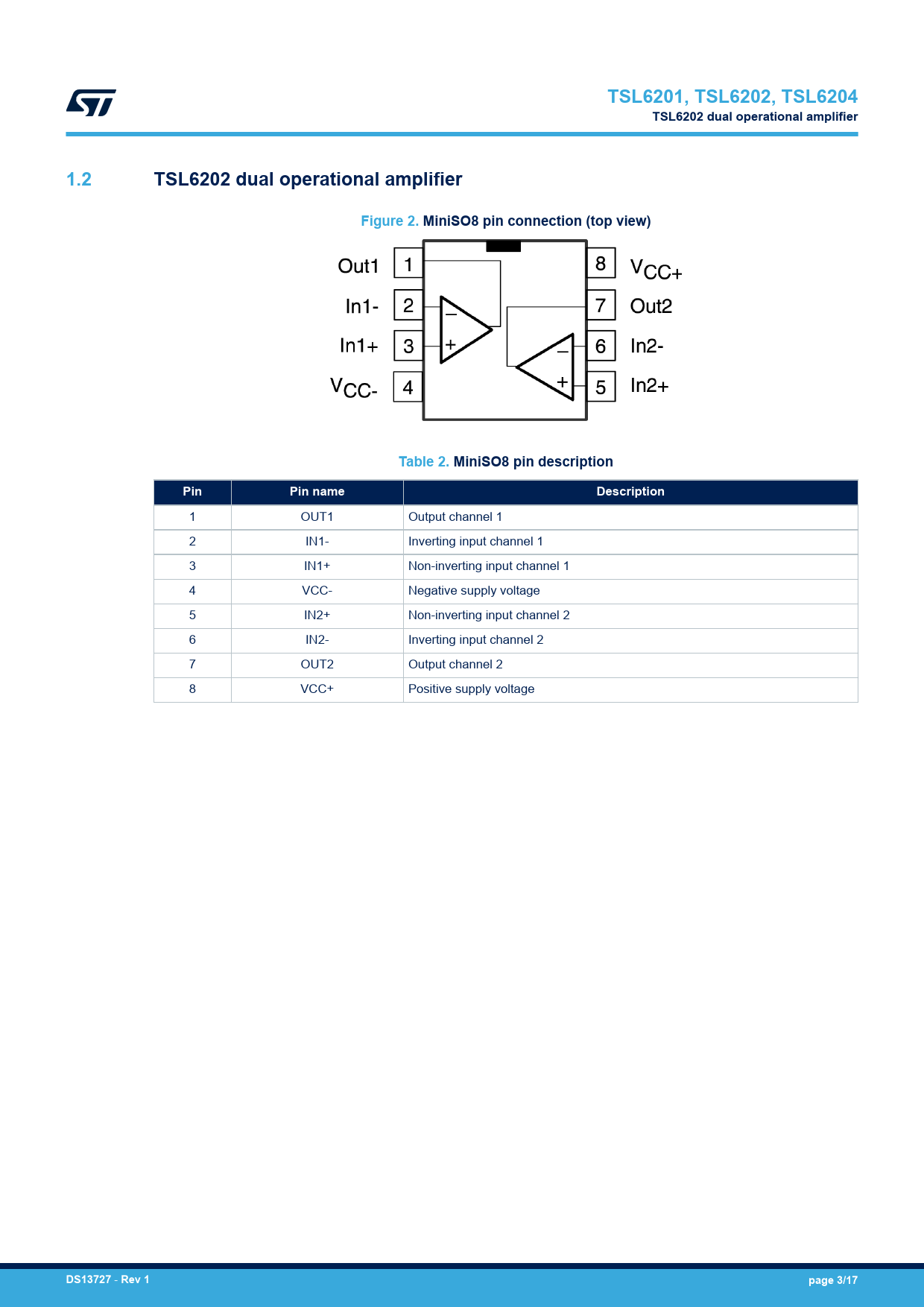

TSL6201, TSL6202, TSL6204. TSL6202 dual operational amplifier. 1.2. Figure 2. MiniSO8 pin connection (top view)
该数据表的模型线
文件文字版本
TSL6201, TSL6202, TSL6204 TSL6202 dual operational amplifier 1.2 TSL6202 dual operational amplifier Figure 2. MiniSO8 pin connection (top view) Table 2. MiniSO8 pin description Pin Pin name Description
1 OUT1 Output channel 1 2 IN1- Inverting input channel 1 3 IN1+ Non-inverting input channel 1 4 VCC- Negative supply voltage 5 IN2+ Non-inverting input channel 2 6 IN2- Inverting input channel 2 7 OUT2 Output channel 2 8 VCC+ Positive supply voltage
DS13727
-
Rev 1 page 3/17
