Datasheet MURS120T3G, SURS8120T3G, NRVUS120VT3G (ON Semiconductor)
| 制造商 | ON Semiconductor |
| 描述 | Surface Mount Ultrafast Power Rectifiers |
| 页数 / 页 | 6 / 1 — www.onsemi.com. MURS105T3G, MURS110T3G, MURS115T3G, MURS120T3G, … |
| 文件格式/大小 | PDF / 188 Kb |
| 文件语言 | 英语 |
www.onsemi.com. MURS105T3G, MURS110T3G, MURS115T3G, MURS120T3G, MURS140T3G, MURS160T3G,. ULTRAFAST RECTIFIERS
该数据表的模型线
文件文字版本

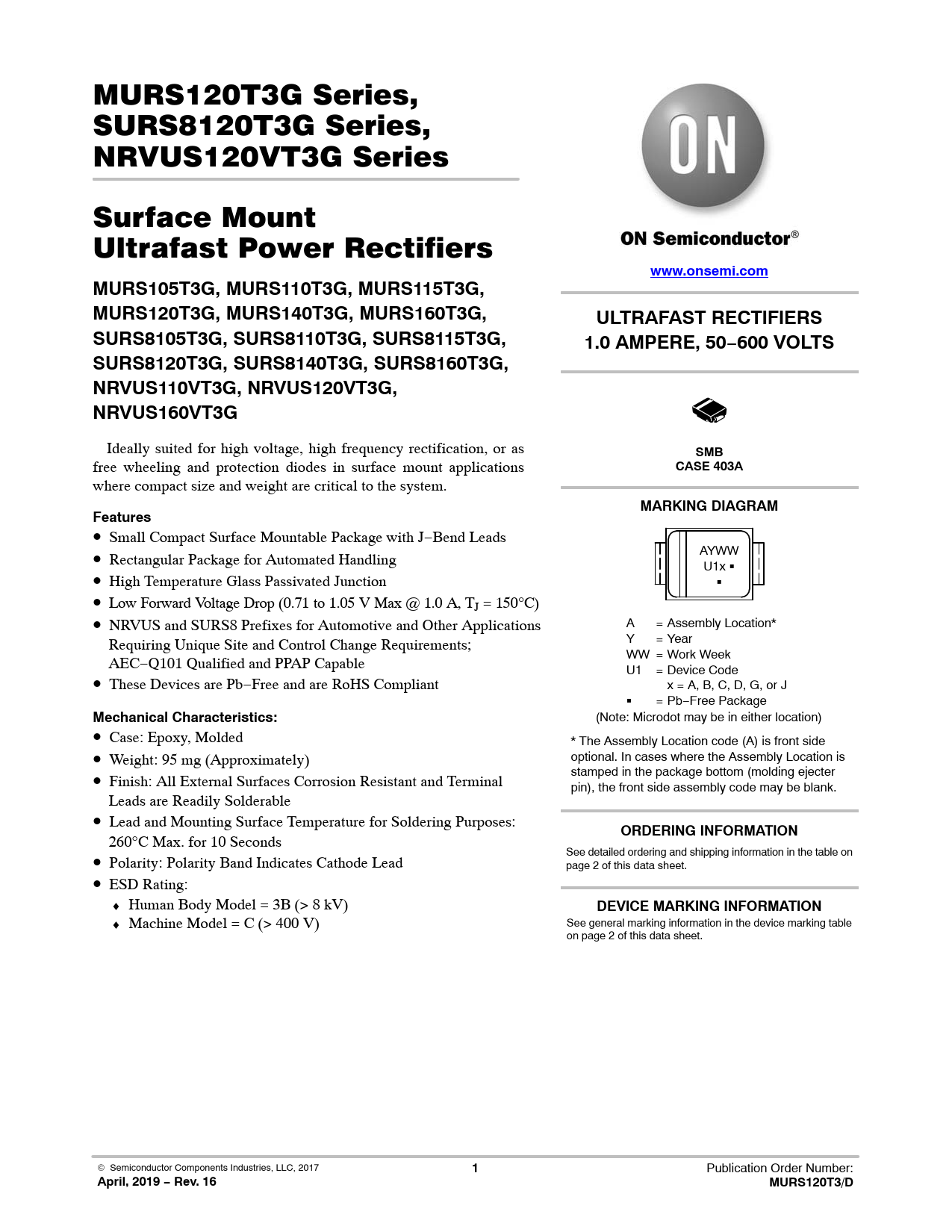

link to page 2 link to page 2 MURS120T3G Series, SURS8120T3G Series, NRVUS120VT3G Series Surface Mount Ultrafast Power Rectifiers
www.onsemi.com MURS105T3G, MURS110T3G, MURS115T3G, MURS120T3G, MURS140T3G, MURS160T3G, ULTRAFAST RECTIFIERS SURS8105T3G, SURS8110T3G, SURS8115T3G, 1.0 AMPERE, 50−600 VOLTS SURS8120T3G, SURS8140T3G, SURS8160T3G, NRVUS110VT3G, NRVUS120VT3G, NRVUS160VT3G
Ideally suited for high voltage, high frequency rectification, or as
SMB
free wheeling and protection diodes in surface mount applications
CASE 403A
where compact size and weight are critical to the system.
MARKING DIAGRAM Features
• Small Compact Surface Mountable Package with J−Bend Leads • Rectangular Package for Automated Handling AYWW U1x G • High Temperature Glass Passivated Junction G • Low Forward Voltage Drop (0.71 to 1.05 V Max @ 1.0 A, TJ = 150°C) • NRVUS and SURS8 Prefixes for Automotive and Other Applications A = Assembly Location* Requiring Unique Site and Control Change Requirements; Y = Year AEC−Q101 Qualified and PPAP Capable WW = Work Week U1 = Device Code • These Devices are Pb−Free and are RoHS Compliant x = A, B, C, D, G, or J G = Pb−Free Package
Mechanical Characteristics:
(Note: Microdot may be in either location) • Case: Epoxy, Molded * The Assembly Location code (A) is front side • Weight: 95 mg (Approximately) optional. In cases where the Assembly Location is • stamped in the package bottom (molding ejecter Finish: All External Surfaces Corrosion Resistant and Terminal pin), the front side assembly code may be blank. Leads are Readily Solderable • Lead and Mounting Surface Temperature for Soldering Purposes:
ORDERING INFORMATION
260°C Max. for 10 Seconds • See detailed ordering and shipping information in the table on Polarity: Polarity Band Indicates Cathode Lead page 2 of this data sheet. • ESD Rating: ♦ Human Body Model = 3B (> 8 kV)
DEVICE MARKING INFORMATION
♦ Machine Model = C (> 400 V) See general marking information in the device marking table on page 2 of this data sheet. © Semiconductor Components Industries, LLC, 2017
1
Publication Order Number:
April, 2019 − Rev. 16 MURS120T3/D
www.onsemi.com MURS105T3G, MURS110T3G, MURS115T3G, MURS120T3G, MURS140T3G, MURS160T3G, ULTRAFAST RECTIFIERS SURS8105T3G, SURS8110T3G, SURS8115T3G, 1.0 AMPERE, 50−600 VOLTS SURS8120T3G, SURS8140T3G, SURS8160T3G, NRVUS110VT3G, NRVUS120VT3G, NRVUS160VT3G
Ideally suited for high voltage, high frequency rectification, or as
SMB
free wheeling and protection diodes in surface mount applications
CASE 403A
where compact size and weight are critical to the system.
MARKING DIAGRAM Features
• Small Compact Surface Mountable Package with J−Bend Leads • Rectangular Package for Automated Handling AYWW U1x G • High Temperature Glass Passivated Junction G • Low Forward Voltage Drop (0.71 to 1.05 V Max @ 1.0 A, TJ = 150°C) • NRVUS and SURS8 Prefixes for Automotive and Other Applications A = Assembly Location* Requiring Unique Site and Control Change Requirements; Y = Year AEC−Q101 Qualified and PPAP Capable WW = Work Week U1 = Device Code • These Devices are Pb−Free and are RoHS Compliant x = A, B, C, D, G, or J G = Pb−Free Package
Mechanical Characteristics:
(Note: Microdot may be in either location) • Case: Epoxy, Molded * The Assembly Location code (A) is front side • Weight: 95 mg (Approximately) optional. In cases where the Assembly Location is • stamped in the package bottom (molding ejecter Finish: All External Surfaces Corrosion Resistant and Terminal pin), the front side assembly code may be blank. Leads are Readily Solderable • Lead and Mounting Surface Temperature for Soldering Purposes:
ORDERING INFORMATION
260°C Max. for 10 Seconds • See detailed ordering and shipping information in the table on Polarity: Polarity Band Indicates Cathode Lead page 2 of this data sheet. • ESD Rating: ♦ Human Body Model = 3B (> 8 kV)
DEVICE MARKING INFORMATION
♦ Machine Model = C (> 400 V) See general marking information in the device marking table on page 2 of this data sheet. © Semiconductor Components Industries, LLC, 2017
1
Publication Order Number:
April, 2019 − Rev. 16 MURS120T3/D
