Package Dimensions. 5.0 4.0. 0.8. 1.0. 0.7. 4.0. 3.7. Lens. Anode Lead NC. Cathode Mark. 1.85. 0.3. Body. Cathode Lead. Metal Slug. 0.65. 0.60. 1.70
该数据表的模型线
文件文字版本
Package Dimensions 5.0 4.0 0.8 1.0 0.7 4.0
Ø
3.7 Lens Anode Lead NC Cathode Mark 1.85 0.3 NC NC Body NC Cathode Lead Metal Slug 0.65 0.60
Ø

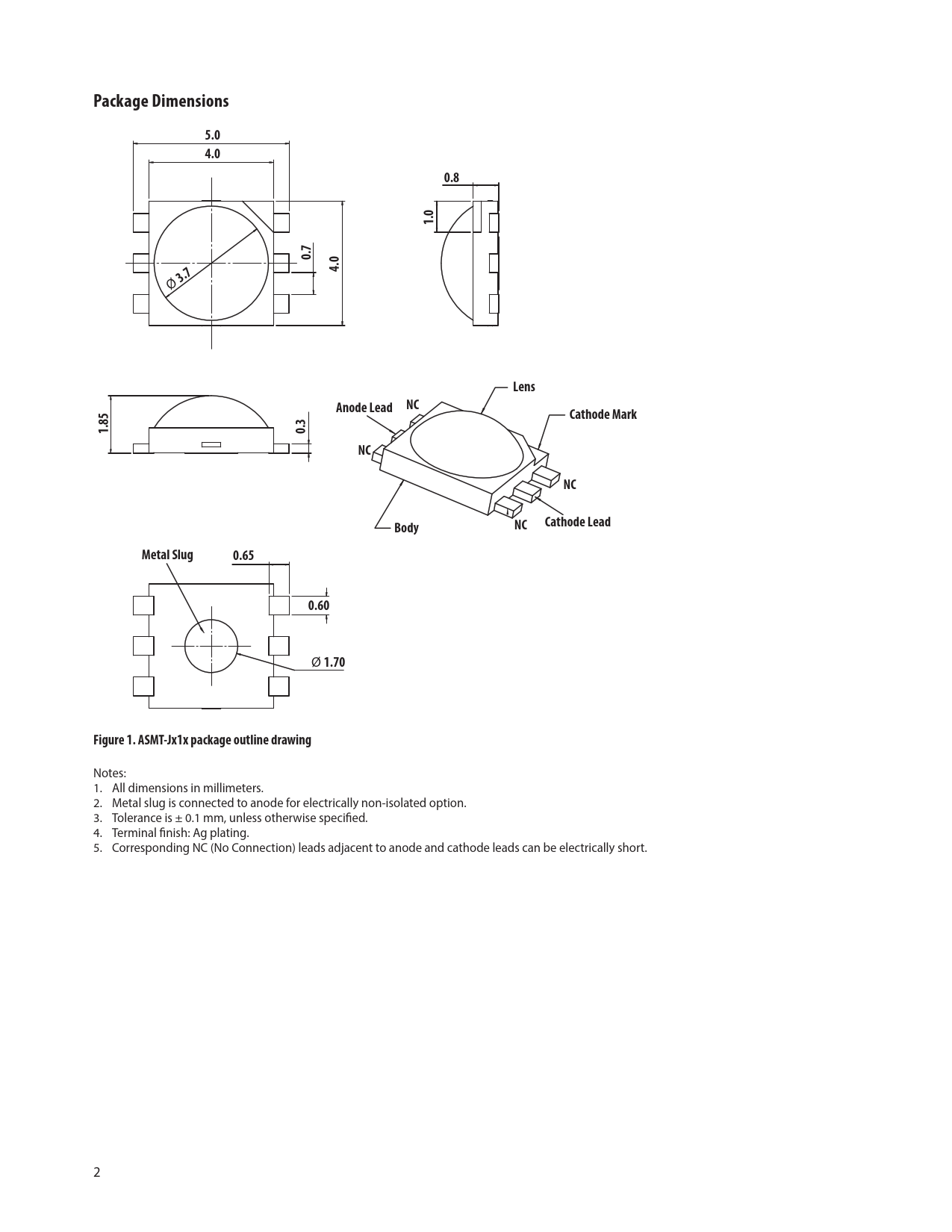

1.70 Figure 1. ASMT-Jx1x package outline drawing
Notes: 1. All dimensions in millimeters. 2. Metal slug is connected to anode for electrically non-isolated option. 3. Tolerance is ± 0.1 mm, unless otherwise specified. 4. Terminal finish: Ag plating. 5. Corresponding NC (No Connection) leads adjacent to anode and cathode leads can be electrically short. 2
Ø
3.7 Lens Anode Lead NC Cathode Mark 1.85 0.3 NC NC Body NC Cathode Lead Metal Slug 0.65 0.60
Ø
1.70 Figure 1. ASMT-Jx1x package outline drawing
Notes: 1. All dimensions in millimeters. 2. Metal slug is connected to anode for electrically non-isolated option. 3. Tolerance is ± 0.1 mm, unless otherwise specified. 4. Terminal finish: Ag plating. 5. Corresponding NC (No Connection) leads adjacent to anode and cathode leads can be electrically short. 2
