Datasheet ASMT-Jx1x (Avago Technologies) - 7
| 制造商 | Avago Technologies |
| 描述 | 1 W Mini Power LED Light Source |
| 页数 / 页 | 16 / 7 — AlInGaP. 120. 0.1. 110. 0.05. 100. -0.05. 70 60. -0.1. -0.15. RED. … |
| 文件格式/大小 | PDF / 470 Kb |
| 文件语言 | 英语 |
AlInGaP. 120. 0.1. 110. 0.05. 100. -0.05. 70 60. -0.1. -0.15. RED. (NORMALIZED AT 25°C). RED-ORANGE. (NORMALIZED AT 25°C) -0.2. AMBER
该数据表的模型线
文件文字版本

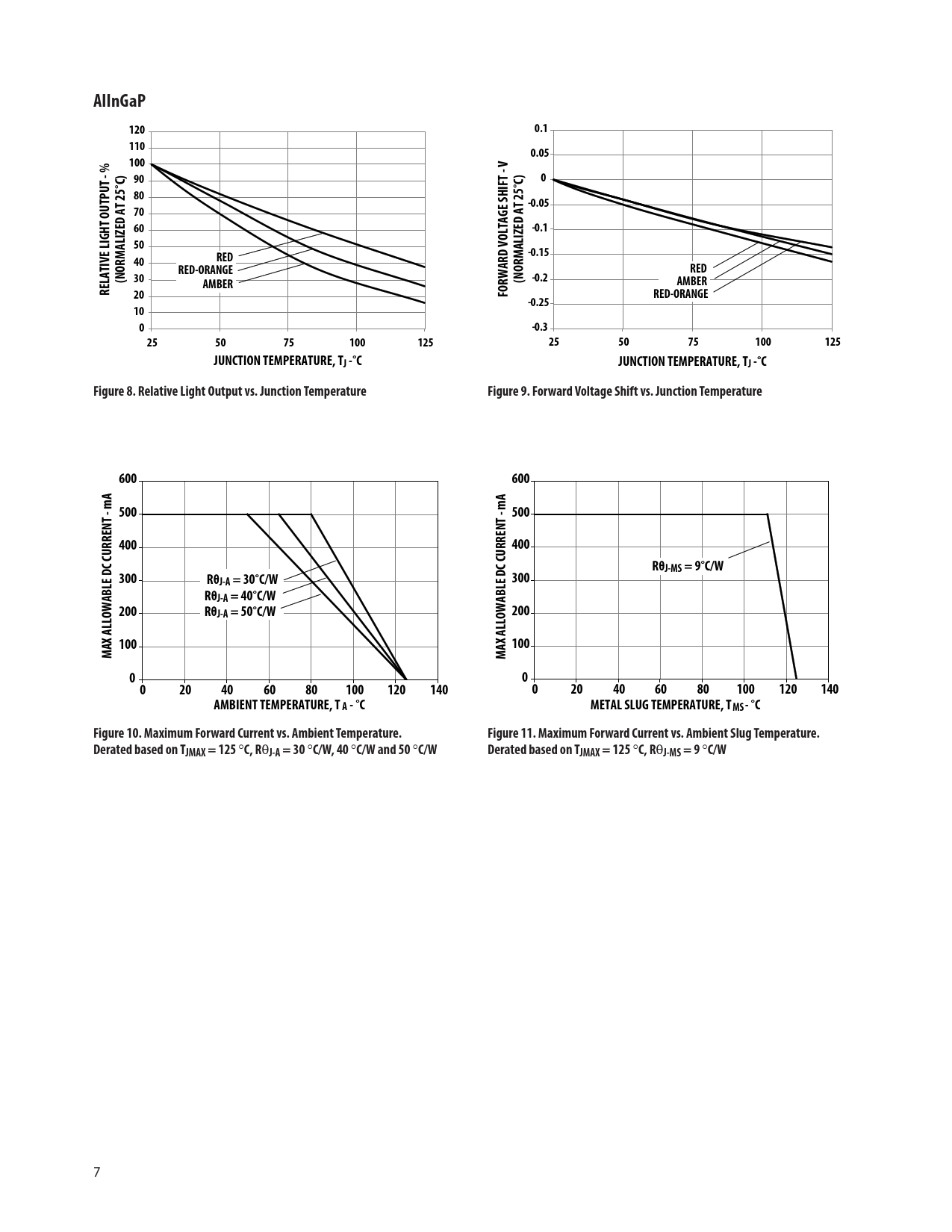

AlInGaP 120 0.1 110 0.05 100 90 0 80 -0.05 70 60 -0.1 50 -0.15 40 RED RED (NORMALIZED AT 25°C) RED-ORANGE 30 (NORMALIZED AT 25°C) -0.2 AMBER RELATIVE LIGHT OUTPUT - % AMBER 20 FORWARD VOLTAGE SHIFT - V RED-ORANGE -0.25 10 0 -0.3 25 50 75 100 125 25 50 75 100 125 JUNCTION TEMPERATURE, TJ -°C JUNCTION TEMPERATURE, TJ -°C Figure 8. Relative Light Output vs. Junction Temperature Figure 9. Forward Voltage Shift vs. Junction Temperature 600 600 500 500 400 400 RθJ-MS = 9°C/W 300 RθJ-A = 30°C/W 300 RθJ-A = 40°C/W 200 RθJ-A = 50°C/W 200 100 100 MAX ALLOWABLE DC CURRENT - mA MAX ALLOWABLE DC CURRENT - mA 0 0 0 20 40 60 80 100 120 140 0 20 40 60 80 100 120 140 AMBIENT TEMPERATURE, T A - °C METAL SLUG TEMPERATURE, TMS - °C Figure 10. Maximum Forward Current vs. Ambient Temperature. Figure 11. Maximum Forward Current vs. Ambient Slug Temperature. Derated based on TJMAX = 125
°
