Datasheet ASMT-Jx3x (Avago Technologies) - 9
| 制造商 | Avago Technologies |
| 描述 | 3 W Mini Power LED Light Source |
| 页数 / 页 | 12 / 9 — Solder. 0.80. Pad. 0.85. 1.90. Slug. Indepdent. 3.50. 5.20. 1.75. 3.2. … |
| 文件格式/大小 | PDF / 424 Kb |
| 文件语言 | 英语 |

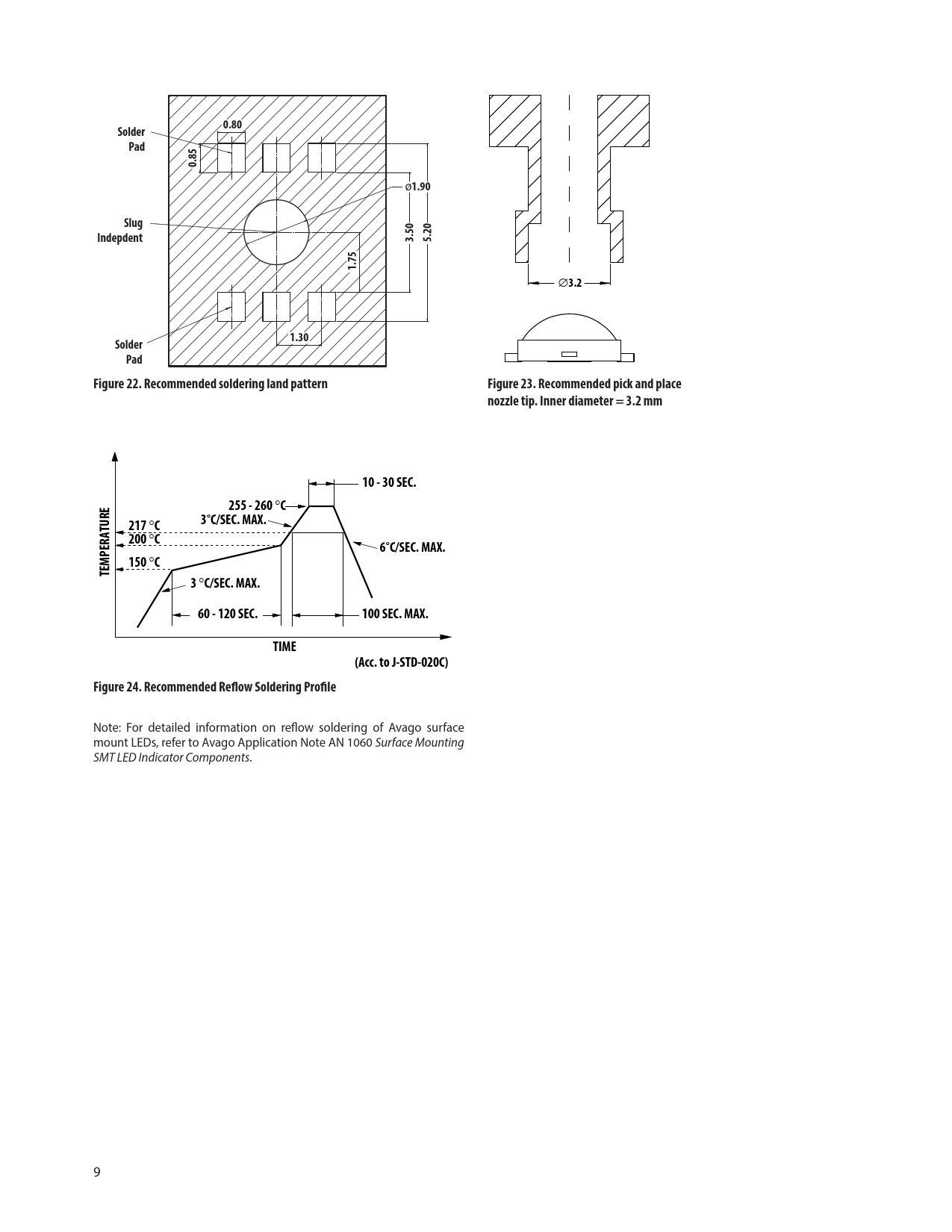

Solder. 0.80. Pad. 0.85. 1.90. Slug. Indepdent. 3.50. 5.20. 1.75. 3.2. 1.30. Figure 22. Recommended soldering land pattern
该数据表的模型线
文件文字版本
Solder 0.80 Pad 0.85
ø
1.90 Slug Indepdent 3.50 5.20 1.75
∅
3.2 Solder 1.30 Pad Figure 22. Recommended soldering land pattern Figure 23. Recommended pick and place nozzle tip. Inner diameter = 3.2 mm 10 - 30 SEC. 255 - 260
°
C 217
°
C 3°C/SEC. MAX. 200
°
C 6°C/SEC. MAX. 150
°
C TEMPERATURE 3
°
C/SEC. MAX. 60 - 120 SEC. 100 SEC. MAX. TIME (Acc. to J-STD-020C) Figure 24. Recommended Reflow Soldering Profile
Note: For detailed information on reflow soldering of Avago surface mount LEDs, refer to Avago Application Note AN 1060 Surface Mounting SMT LED Indicator Components. 9
