Datasheet WM02N50M (Wayon) - 5
| 制造商 | Wayon |
| 描述 | N-Channel Enhancement MOSFET |
| 页数 / 页 | 5 / 5 — WM02N50M. Outline Drawing – SOT-23. PACKAGE OUTLINE. SOT-23. DIMENSIONS. … |
| 文件格式/大小 | PDF / 367 Kb |
| 文件语言 | 英语 |
WM02N50M. Outline Drawing – SOT-23. PACKAGE OUTLINE. SOT-23. DIMENSIONS. Notes. DIM. INCHES. MILLIMETERS. 0.080. 2.02. 0.032. 0.80. 0.111. 2.82
该数据表的模型线
文件文字版本

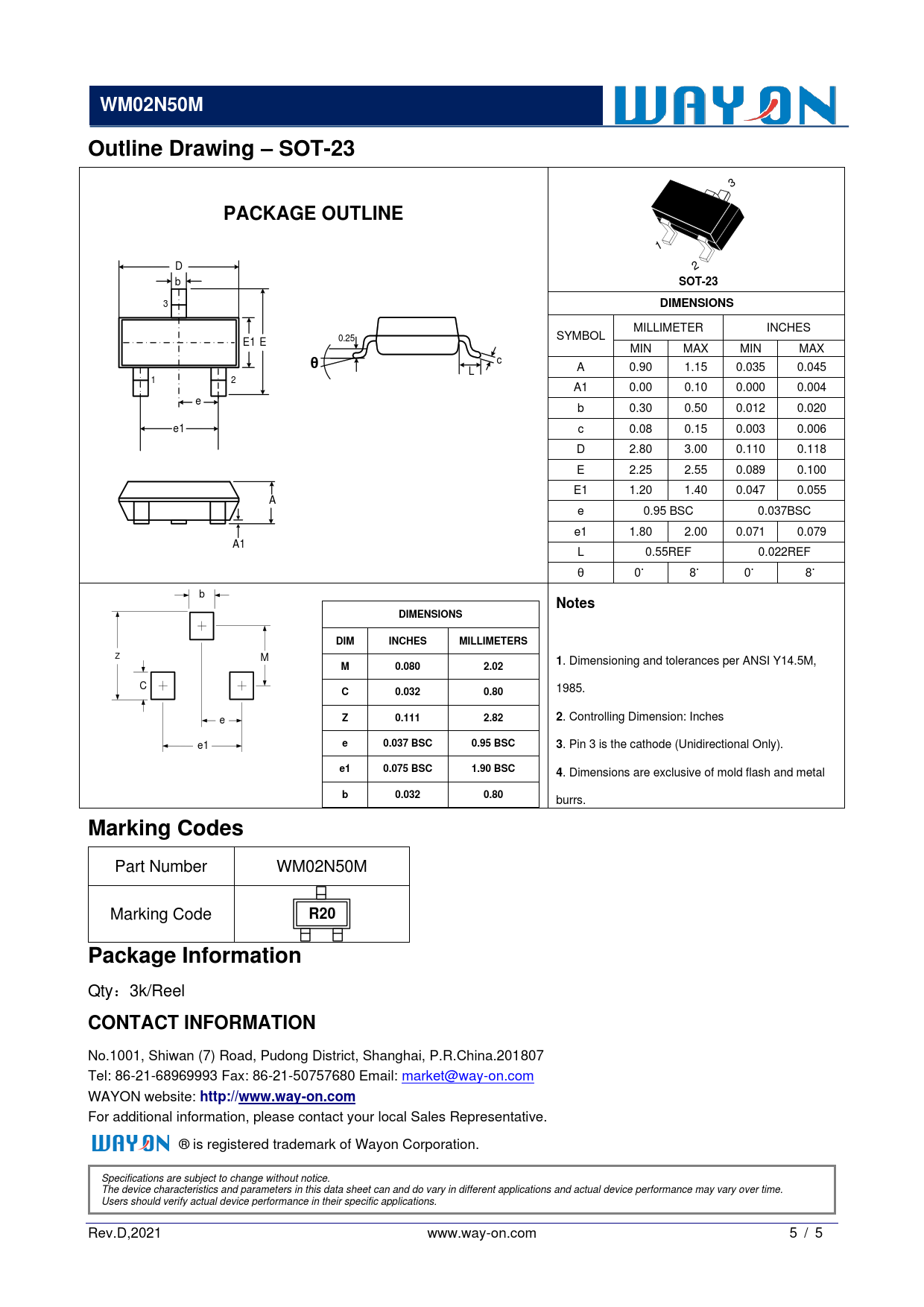

WM02N50M Outline Drawing – SOT-23
3
PACKAGE OUTLINE
1 D 2 b
SOT-23
3
DIMENSIONS
MILLIMETER INCHES SYMBOL E1 E 0.25 MIN MAX MIN MAX
θ
c L A 0.90 1.15 0.035 0.045 1 2 A1 0.00 0.10 0.000 0.004 e b 0.30 0.50 0.012 0.020 e1 c 0.08 0.15 0.003 0.006 D 2.80 3.00 0.110 0.118 E 2.25 2.55 0.089 0.100 E1 1.20 1.40 0.047 0.055 A e 0.95 BSC 0.037BSC e1 1.80 2.00 0.071 0.079 A1 L 0.55REF 0.022REF θ 0。 8。 0。 8。 b
Notes DIMENSIONS DIM INCHES MILLIMETERS
Z M
1
. Dimensioning and tolerances per ANSI Y14.5M,
M 0.080 2.02
C
C 0.032 0.80
1985. e
Z 0.111 2.82 2
. Controlling Dimension: Inches e1
e 0.037 BSC 0.95 BSC 3
. Pin 3 is the cathode (Unidirectional Only).
e1 0.075 BSC 1.90 BSC 4
. Dimensions are exclusive of mold flash and metal
b 0.032 0.80
burrs.
Marking Codes
Part Number WM02N50M Marking Code
R20 Package Information
Qty：3k/Reel
CONTACT INFORMATION
No.1001, Shiwan (7) Road, Pudong District, Shanghai, P.R.China.201807 Tel: 86-21-68969993 Fax: 86-21-50757680 Email: market@way-on.com WAYON website:
http://www.way-on.com
For additional information, please contact your local Sales Representative. ® is registered trademark of Wayon Corporation. Specifications are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their specific applications. Rev.D,2021 www.way-on.com 5 / 5
