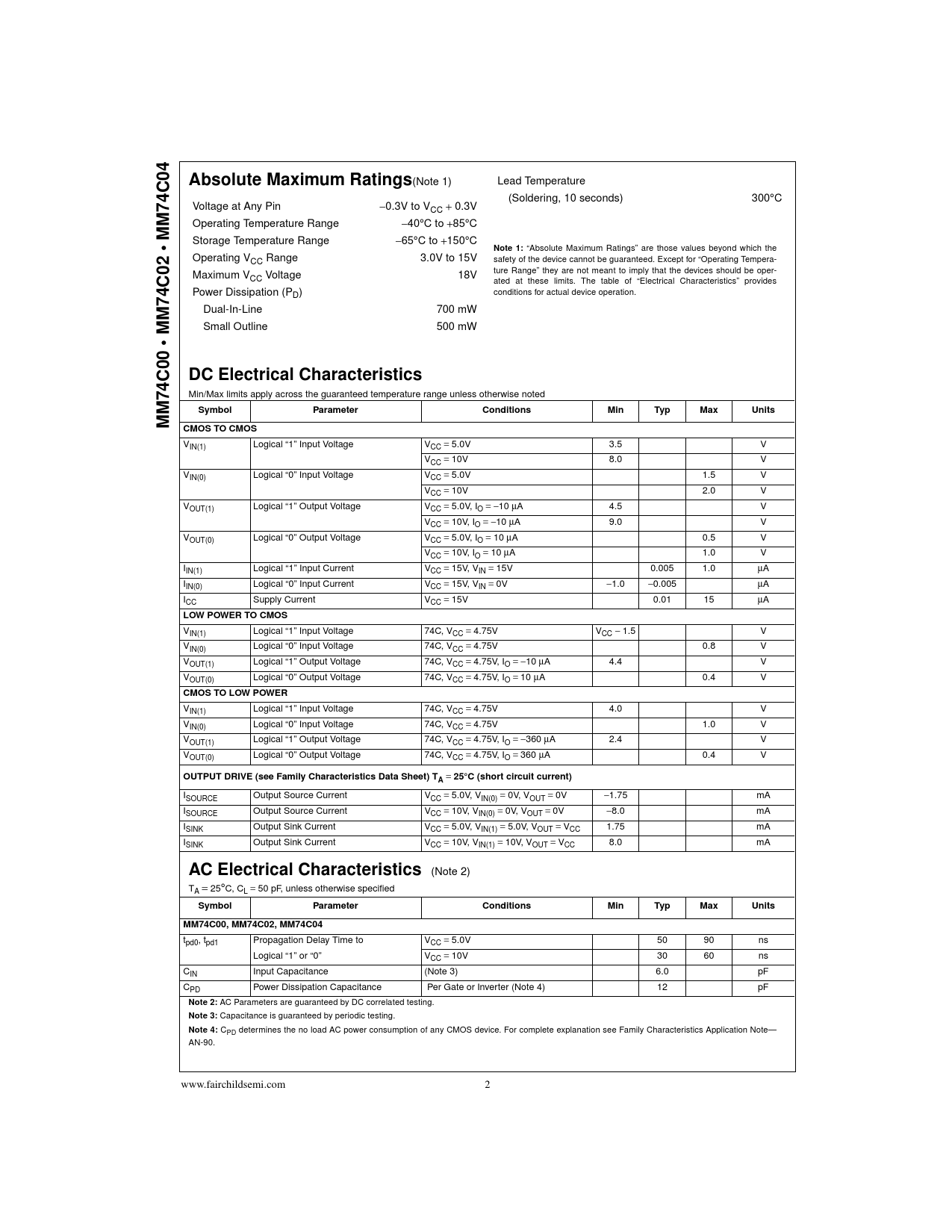

Datasheet MM74C00, MM74C02, MM74C04 (Fairchild) - 2

Absolute Maximum Ratings
(Note 1) Lead Temperature (Soldering, 10 seconds) 300°C
74C04
Voltage at Any Pin −0.3V to VCC + 0.3V Operating Temperature Range −40°C to +85°C
• MM
Storage Temperature Range −65°C to +150°C
Note 1:
“Absolute Maximum Ratings” are those values beyond which the Operating V safety of the device cannot be guaranteed. Except for “Operating Tempera- CC Range 3.0V to 15V ture Range” they are not meant to imply that the devices should be oper- Maximum VCC Voltage 18V ated at these limits. The table of “Electrical Characteristics” provides Power Dissipation (P conditions for actual device operation. D) Dual-In-Line 700 mW Small Outline 500 mW
• MM74C02 DC Electrical Characteristics
Min/Max limits apply across the guaranteed temperature range unless otherwise noted
Symbol Parameter Conditions Min Typ Max Units MM74C00 CMOS TO CMOS
VIN(1) Logical “1” Input Voltage VCC = 5.0V 3.5 V VCC = 10V 8.0 V VIN(0) Logical “0” Input Voltage VCC = 5.0V 1.5 V VCC = 10V 2.0 V VOUT(1) Logical “1” Output Voltage VCC = 5.0V, IO = −10 µA 4.5 V VCC = 10V, IO = −10 µA 9.0 V VOUT(0) Logical “0” Output Voltage VCC = 5.0V, IO = 10 µA 0.5 V VCC = 10V, IO = 10 µA 1.0 V IIN(1) Logical “1” Input Current VCC = 15V, VIN = 15V 0.005 1.0 µA IIN(0) Logical “0” Input Current VCC = 15V, VIN = 0V −1.0 −0.005 µA ICC Supply Current VCC = 15V 0.01 15 µA
LOW POWER TO CMOS
VIN(1) Logical “1” Input Voltage 74C, VCC = 4.75V VCC − 1.5 V VIN(0) Logical “0” Input Voltage 74C, VCC = 4.75V 0.8 V VOUT(1) Logical “1” Output Voltage 74C, VCC = 4.75V, IO = −10 µA 4.4 V VOUT(0) Logical “0” Output Voltage 74C, VCC = 4.75V, IO = 10 µA 0.4 V
CMOS TO LOW POWER
VIN(1) Logical “1” Input Voltage 74C, VCC = 4.75V 4.0 V VIN(0) Logical “0” Input Voltage 74C, VCC = 4.75V 1.0 V VOUT(1) Logical “1” Output Voltage 74C, VCC = 4.75V, IO = −360 µA 2.4 V VOUT(0) Logical “0” Output Voltage 74C, VCC = 4.75V, IO = 360 µA 0.4 V
OUTPUT DRIVE (see Family Characteristics Data Sheet) TA
=
25
°
C (short circuit current)
ISOURCE Output Source Current VCC = 5.0V, VIN(0) = 0V, VOUT = 0V −1.75 mA ISOURCE Output Source Current VCC = 10V, VIN(0) = 0V, VOUT = 0V −8.0 mA ISINK Output Sink Current VCC = 5.0V, VIN(1) = 5.0V, VOUT = VCC 1.75 mA ISINK Output Sink Current VCC = 10V, VIN(1) = 10V, VOUT = VCC 8.0 mA
AC Electrical Characteristics
(Note 2) TA = 25°C, CL = 50 pF, unless otherwise specified
Symbol Parameter Conditions Min Typ Max Units MM74C00, MM74C02, MM74C04
tpd0, tpd1 Propagation Delay Time to VCC = 5.0V 50 90 ns Logical “1” or “0” VCC = 10V 30 60 ns CIN Input Capacitance (Note 3) 6.0 pF CPD Power Dissipation Capacitance Per Gate or Inverter (Note 4) 12 pF
Note 2:
AC Parameters are guaranteed by DC correlated testing.
Note 3:
Capacitance is guaranteed by periodic testing.
Note 4:
CPD determines the no load AC power consumption of any CMOS device. For complete explanation see Family Characteristics Application Note— AN-90. www.fairchildsemi.com 2
