Datasheet EC103, S (Littelfuse)
| 制造商 | Littelfuse |
| 描述 | Teccor brand Thyristors |
| 页数 / 页 | 10 / 1 — Teccor® brand Thyristors. Description. Features & Benefits. Main … |
| 文件格式/大小 | PDF / 1.1 Mb |
| 文件语言 | 英语 |
Teccor® brand Thyristors. Description. Features & Benefits. Main Features. Applications. Schematic Symbol
该数据表的模型线
文件文字版本

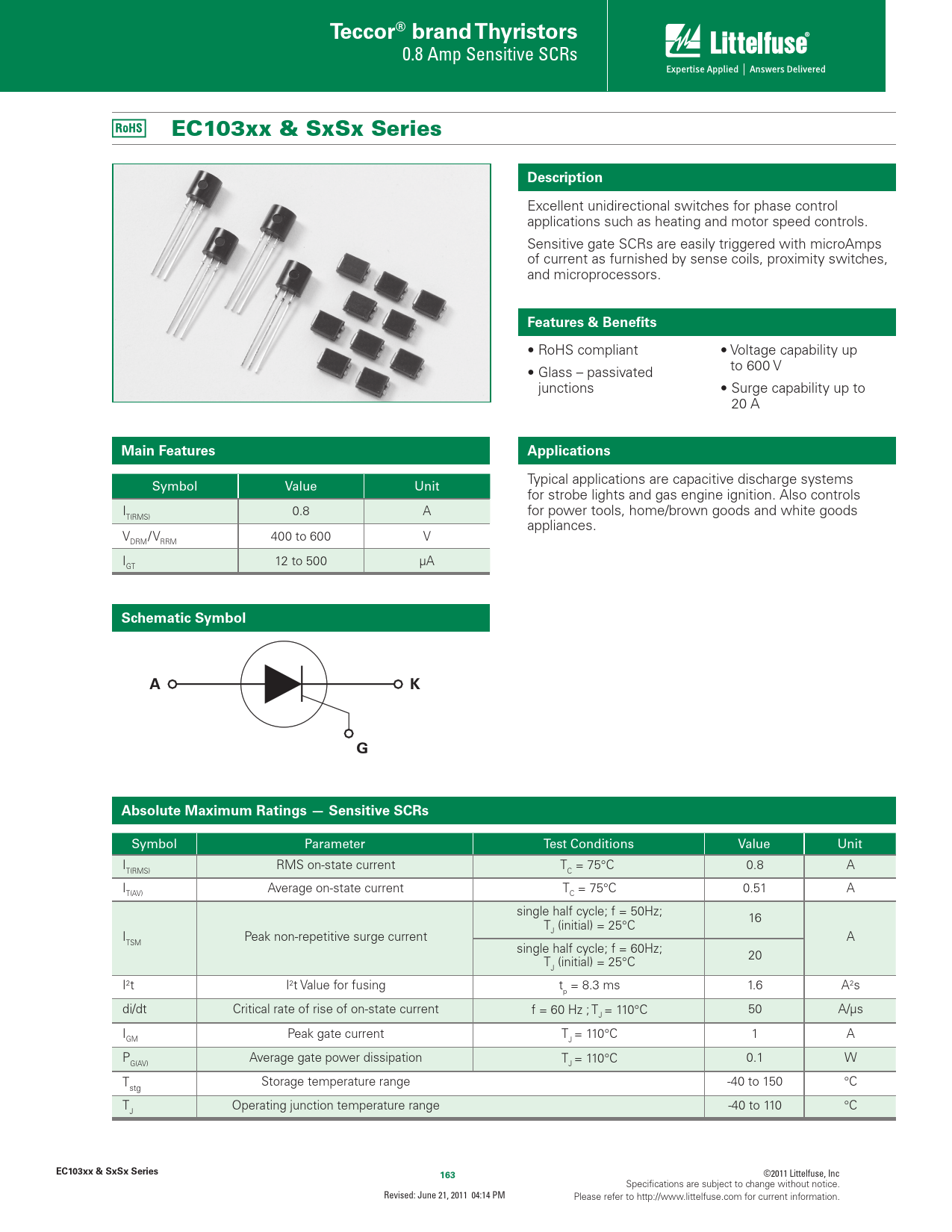

Teccor® brand Thyristors
0.8 Amp Sensitive SCRs EC103xx & SxSx Series
Description
Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
Features & Benefits
• RoHS compliant • Voltage capability up • Glass – passivated to 600 V junctions • Surge capability up to 20 A
Main Features Applications
Symbol Value Unit Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls I 0.8 A for power tools, home/brown goods and white goods T(RMS) appliances. V /V 400 to 600 V DRM RRM I 12 to 500 μA GT
Schematic Symbol A K G Absolute Maximum Ratings — Sensitive SCRs
Symbol Parameter Test Conditions Value Unit I RMS on-state current T = 75°C 0.8 A T(RMS) C I Average on-state current T = 75°C 0.51 A T(AV) C single half cycle; f = 50Hz; T (initial) = 25°C 16 I Peak non-repetitive surge current J A TSM single half cycle; f = 60Hz; T (initial) = 25°C 20 J I2t I2t Value for fusing t = 8.3 ms 1.6 A2s p di/dt Critical rate of rise of on-state current f = 60 Hz ; T = 110°C 50 A/μs J I Peak gate current T = 110°C 1 A GM J P Average gate power dissipation T = 110°C 0.1 W G(AV) J T Storage temperature range -40 to 150 °C stg T Operating junction temperature range -40 to 110 °C J
EC103xx & SxSx Series 163
©2011 Littelfuse, Inc Specifications are subject to change without notice. Revised: June 21, 2011 04:14 PM Please refer to http://www.littelfuse.com for current information.
0.8 Amp Sensitive SCRs EC103xx & SxSx Series
Description
Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
Features & Benefits
• RoHS compliant • Voltage capability up • Glass – passivated to 600 V junctions • Surge capability up to 20 A
Main Features Applications
Symbol Value Unit Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls I 0.8 A for power tools, home/brown goods and white goods T(RMS) appliances. V /V 400 to 600 V DRM RRM I 12 to 500 μA GT
Schematic Symbol A K G Absolute Maximum Ratings — Sensitive SCRs
Symbol Parameter Test Conditions Value Unit I RMS on-state current T = 75°C 0.8 A T(RMS) C I Average on-state current T = 75°C 0.51 A T(AV) C single half cycle; f = 50Hz; T (initial) = 25°C 16 I Peak non-repetitive surge current J A TSM single half cycle; f = 60Hz; T (initial) = 25°C 20 J I2t I2t Value for fusing t = 8.3 ms 1.6 A2s p di/dt Critical rate of rise of on-state current f = 60 Hz ; T = 110°C 50 A/μs J I Peak gate current T = 110°C 1 A GM J P Average gate power dissipation T = 110°C 0.1 W G(AV) J T Storage temperature range -40 to 150 °C stg T Operating junction temperature range -40 to 110 °C J
EC103xx & SxSx Series 163
©2011 Littelfuse, Inc Specifications are subject to change without notice. Revised: June 21, 2011 04:14 PM Please refer to http://www.littelfuse.com for current information.
