Teccor® brand Thyristors
0.8 Amp Sensitive SCRs
TO-92 (3-lead) Ammo Pack (AP) Radial Leaded Specifications Meets all EIA-468-C Standards

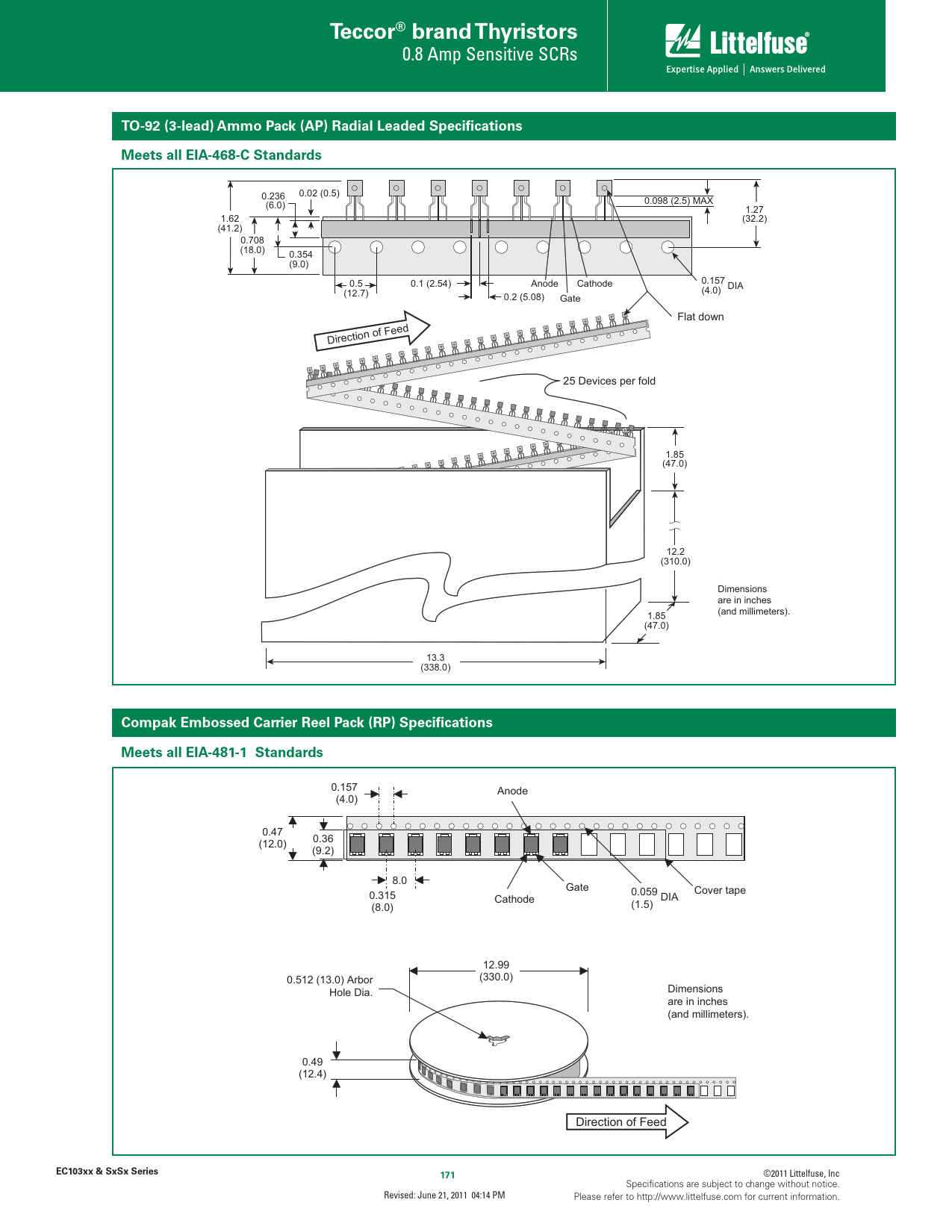

0.236 0.02 (0.5) (6.0) 0.098 (2.5) MAX 1.27 1.62 (32.2) (41.2) 0.708 (18.0) 0.354 (9.0) 0.5 0.1 (2.54) Anode Cathode 0.157 DIA (12.7) (4.0) 0.2 (5.08) Gate Flat down Direction of Feed 25 Devices per fold 1.85 (47.0) 12.2 (310.0) Dimensions are in inches (and millimeters). 1.85 (47.0) 13.3 (338.0)
Compak Embossed Carrier Reel Pack (RP) Specifications Meets all EIA-481-1 Standards
0.157 Anode (4.0) 0.47 (12.0) 0.36 (9.2) 8.0 Gate 0.315 0.059 Cover tape Cathode DIA (8.0) (1.5) 12.99 0.512 (13.0) Arbor (330.0) Hole Dia. Dimensions are in inches (and millimeters). 0.49 (12.4) Direction of Feed
EC103xx & SxSx Series 171
