Datasheet IRFP140 (Vishay) - 3
| 制造商 | Vishay |
| 描述 | Power MOSFET |
| 页数 / 页 | 11 / 3 — IRFP140. TYPICAL CHARACTERISTICS. Fig. 1 - Typical Output … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
IRFP140. TYPICAL CHARACTERISTICS. Fig. 1 - Typical Output Characteristics, TC = 25 °C
该数据表的模型线
文件文字版本
IRFP140
www.vishay.com Vishay Siliconix
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)

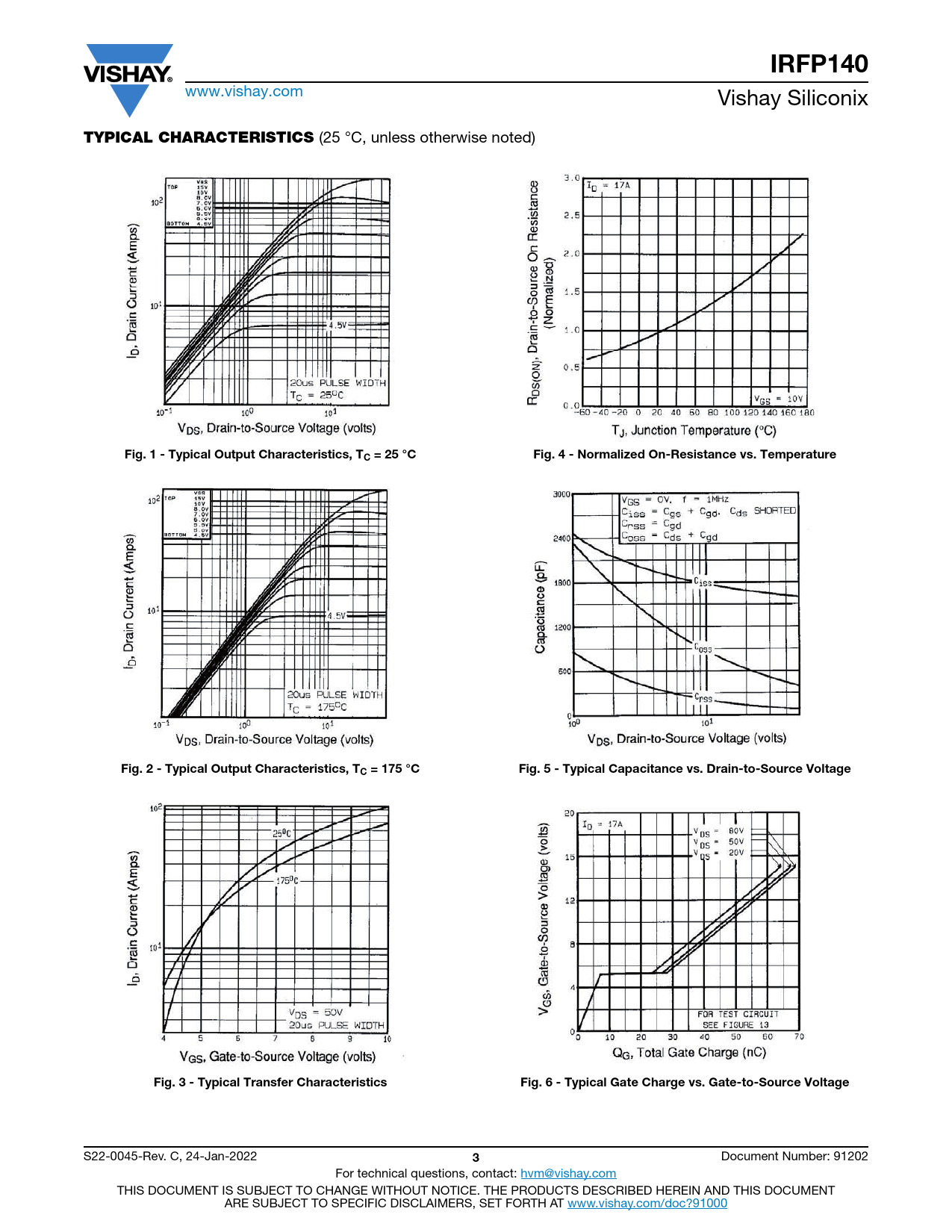

Fig. 1 - Typical Output Characteristics, TC = 25 °C Fig. 4 - Normalized On-Resistance vs. Temperature Fig. 2 - Typical Output Characteristics, TC = 175 °C Fig. 5 - Typical Capacitance vs. Drain-to-Source Voltage Fig. 3 - Typical Transfer Characteristics Fig. 6 - Typical Gate Charge vs. Gate-to-Source Voltage
