Datasheet BAS521 (Diodes) - 4
| 制造商 | Diodes |
| 描述 | High Voltage Switching Diode |
| 页数 / 页 | 5 / 4 — BAS521. Package Outline Dimensions. SOD523. Dim. Min. Max. All Dimensions … |
| 文件格式/大小 | PDF / 346 Kb |
| 文件语言 | 英语 |
BAS521. Package Outline Dimensions. SOD523. Dim. Min. Max. All Dimensions in mm. Suggested Pad Layout. Dimensions Value (in mm)
该数据表的模型线
文件文字版本

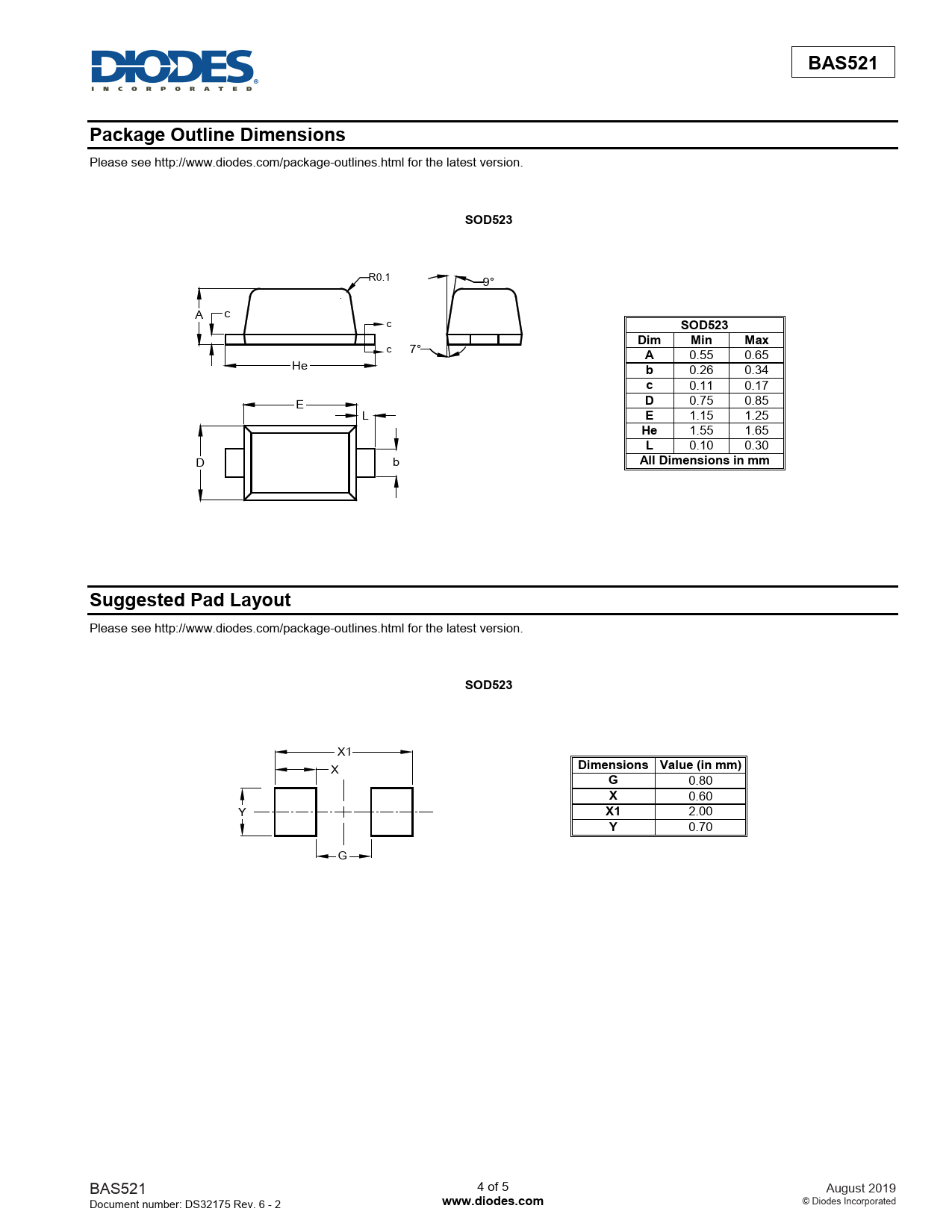

BAS521 Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD523
R0.1 9° A c c
SOD523 Dim Min Max
c 7°
A
0.55 0.65 He
b
0.26 0.34
c
0.11 0.17 E
D
0.75 0.85 L
E
1.15 1.25
He
1.55 1.65
L
0.10 0.30 D b
All Dimensions in mm Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD523
X1 X
Dimensions Value (in mm) G
0.80
X
0.60 Y
X1
2.00
Y
0.70 G BAS521 4 of 5 August 2019 Document number: DS32175 Rev. 6 - 2
www.diodes.com
© Diodes Incorporated Document Outline Mechanical Data Features Marking Information Package Outline Dimensions Suggested Pad Layout
