Datasheet BAS16 (Vishay) - 3
| 制造商 | Vishay |
| 描述 | Small Signal Fast Switching Diode |
| 页数 / 页 | 4 / 3 — BAS16. PACKAGE DIMENSIONS. SOT-23 |
| 文件格式/大小 | PDF / 87 Kb |
| 文件语言 | 英语 |
BAS16. PACKAGE DIMENSIONS. SOT-23
该数据表的模型线
文件文字版本
BAS16
www.vishay.com Vishay Semiconductors

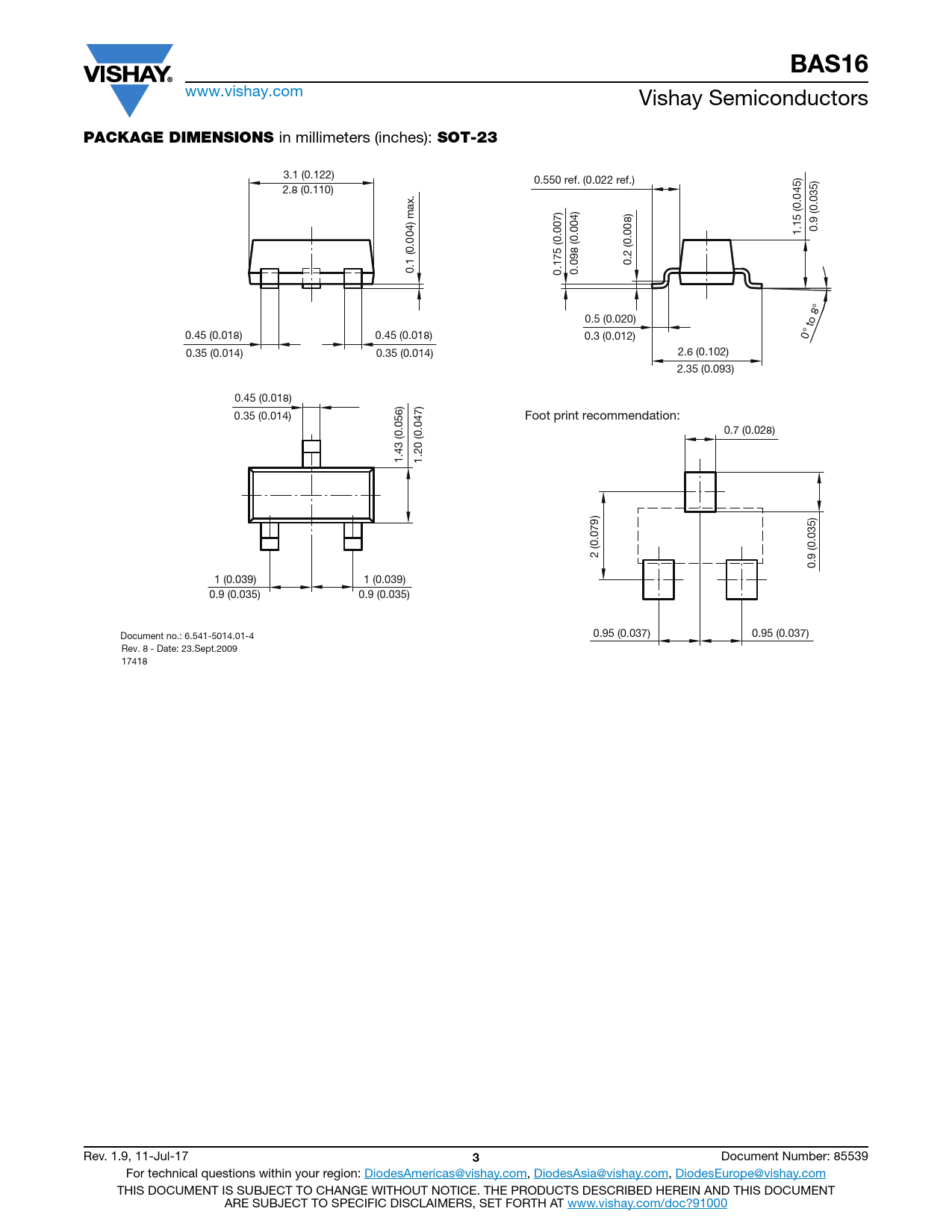

PACKAGE DIMENSIONS
in millimeters (inches):
SOT-23
3.1 (0.122) 0.550 ref. (0.022 ref.) 2.8 (0.110) 1.15 (0.045) 0.9 (0.035) 0.2 (0.008) 0.1 (0.004) max. 0.175 (0.007) 0.098 (0.004) 0.5 (0.020) 0.45 (0.018) 0.45 (0.018) 0.3 (0.012) 0° to 8° 0.35 (0.014) 0.35 (0.014) 2.6 (0.102) 2.35 (0.093) 0.45 (0.018) 0.35 (0.014) Foot print recommendation: 0.7 (0.028) 1.43 (0.056) 1.20 (0.047) 2 (0.079) 0.9 (0.035) 1 (0.039) 1 (0.039) 0.9 (0.035) 0.9 (0.035) Document no.: 6.541-5014.01-4 0.95 (0.037) 0.95 (0.037) Rev. 8 - Date: 23.Sept.2009 17418 Rev. 1.9, 11-Jul-17
