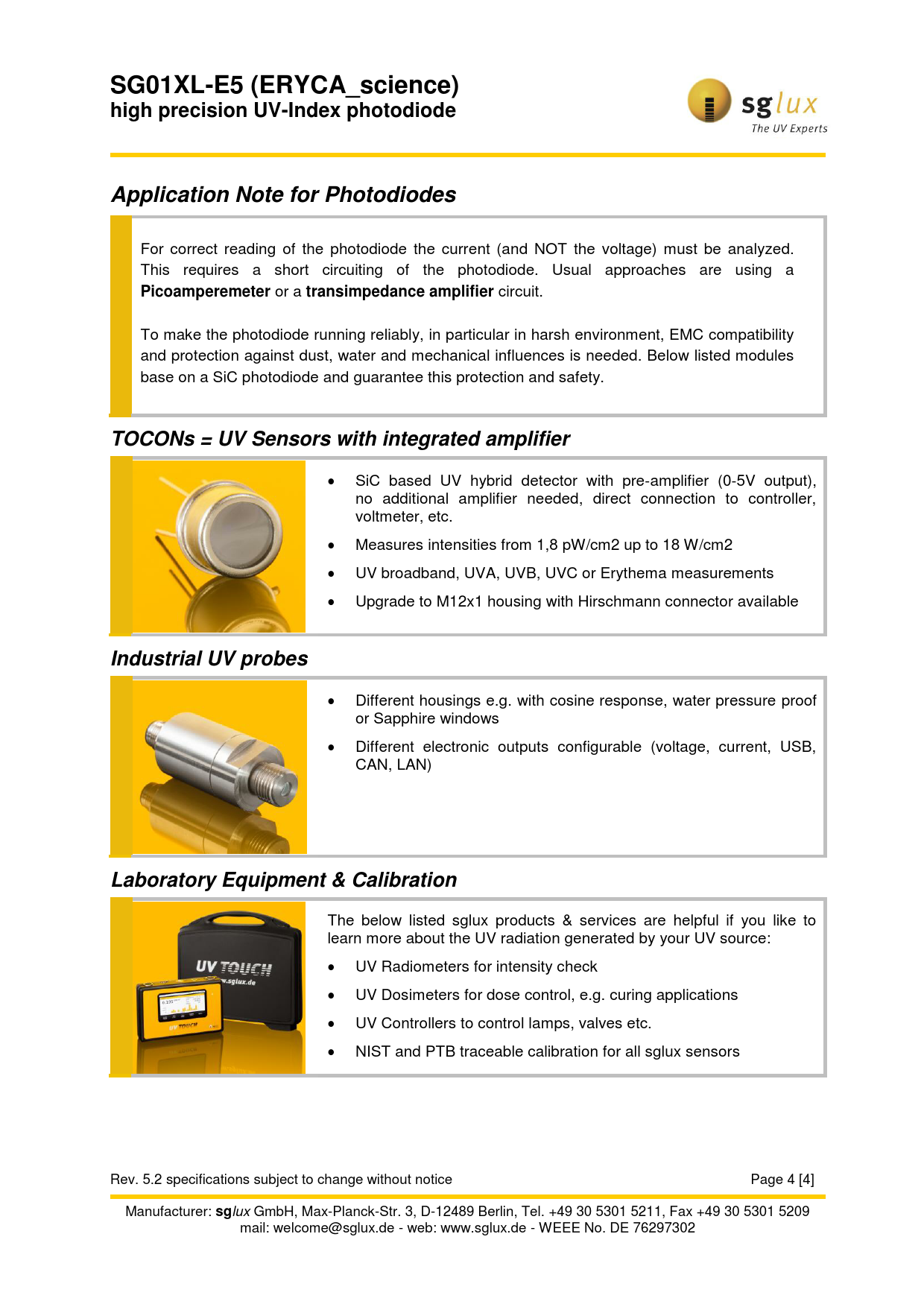

SG01XL-E5 (ERYCA_science) high precision UV-Index photodiode Application Note for Photodiodes
For correct reading of the photodiode the current (and NOT the voltage) must be analyzed. This requires a short circuiting of the photodiode. Usual approaches are using a
Picoamperemeter
or a
transimpedance amplifier
circuit. To make the photodiode running reliably, in particular in harsh environment, EMC compatibility and protection against dust, water and mechanical influences is needed. Below listed modules base on a SiC photodiode and guarantee this protection and safety.
TOCONs = UV Sensors with integrated amplifier
SiC based UV hybrid detector with pre-amplifier (0-5V output), no additional amplifier needed, direct connection to controller, voltmeter, etc. Measures intensities from 1,8 pW/cm2 up to 18 W/cm2 UV broadband, UVA, UVB, UVC or Erythema measurements Upgrade to M12x1 housing with Hirschmann connector available
Industrial UV probes
Different housings e.g. with cosine response, water pressure proof or Sapphire windows Different electronic outputs configurable (voltage, current, USB, CAN, LAN)
Laboratory Equipment & Calibration
The below listed sglux products & services are helpful if you like to learn more about the UV radiation generated by your UV source: UV Radiometers for intensity check UV Dosimeters for dose control, e.g. curing applications UV Controllers to control lamps, valves etc. NIST and PTB traceable calibration for all sglux sensors Rev. 5.2 specifications subject to change without notice Page 4 [4] Manufacturer:
sg
lux GmbH, Max-Planck-Str. 3, D-12489 Berlin, Tel. +49 30 5301 5211, Fax +49 30 5301 5209 mail: welcome@sglux.de - web: www.sglux.de - WEEE No. DE 76297302
