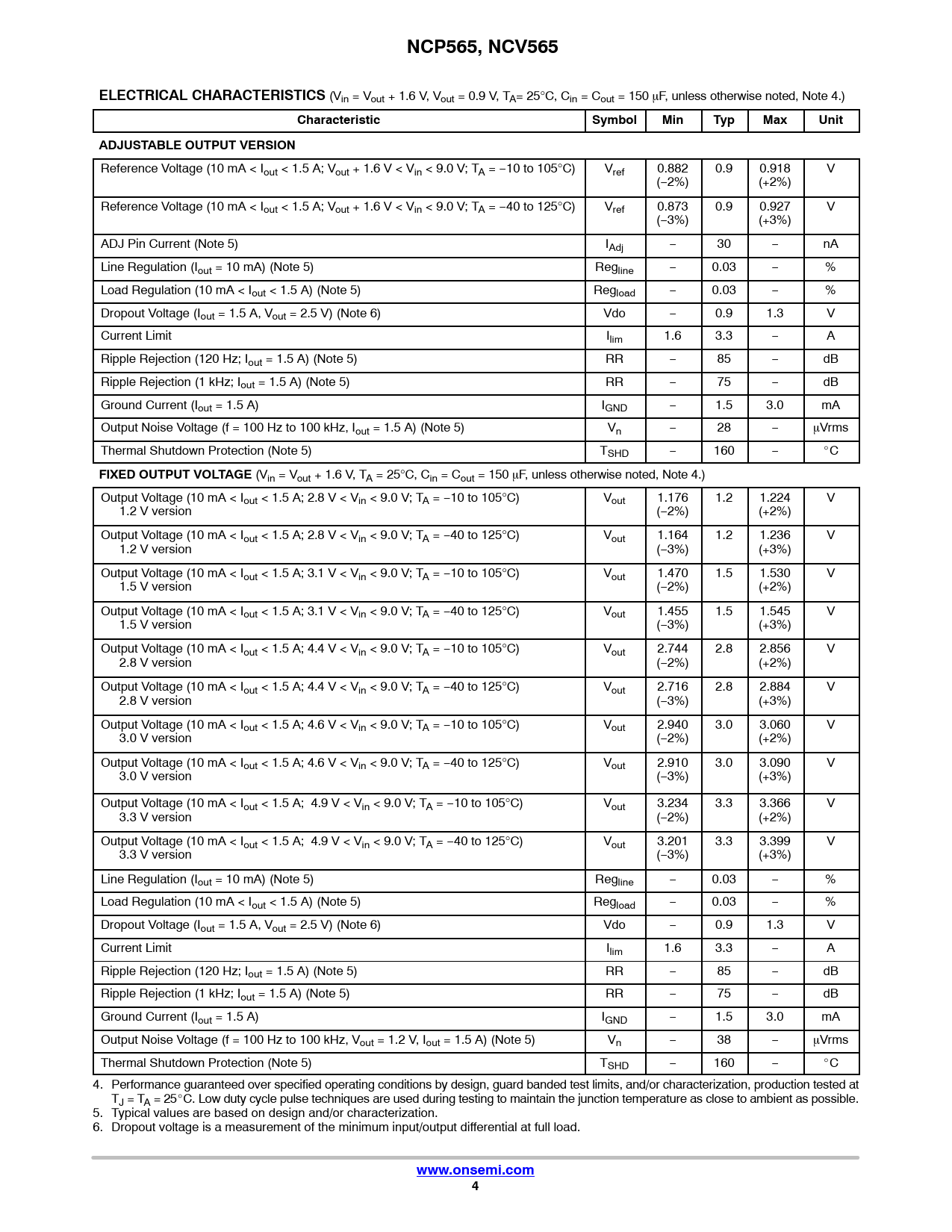

NCP565, NCV565 ELECTRICAL CHARACTERISTICS
(Vin = Vout + 1.6 V, Vout = 0.9 V, TA= 25°C, Cin = Cout = 150 mF, unless otherwise noted, Note 4.)
Characteristic Symbol Min Typ Max Unit ADJUSTABLE OUTPUT VERSION
Reference Voltage (10 mA < Iout < 1.5 A; Vout + 1.6 V < Vin < 9.0 V; TA = −10 to 105°C) Vref 0.882 0.9 0.918 V (−2%) (+2%) Reference Voltage (10 mA < Iout < 1.5 A; Vout + 1.6 V < Vin < 9.0 V; TA = −40 to 125°C) Vref 0.873 0.9 0.927 V (−3%) (+3%) ADJ Pin Current (Note 5) IAdj − 30 − nA Line Regulation (Iout = 10 mA) (Note 5) Regline − 0.03 − % Load Regulation (10 mA < Iout < 1.5 A) (Note 5) Regload − 0.03 − % Dropout Voltage (Iout = 1.5 A, Vout = 2.5 V) (Note 6) Vdo − 0.9 1.3 V Current Limit Ilim 1.6 3.3 − A Ripple Rejection (120 Hz; Iout = 1.5 A) (Note 5) RR − 85 − dB Ripple Rejection (1 kHz; Iout = 1.5 A) (Note 5) RR − 75 − dB Ground Current (Iout = 1.5 A) IGND − 1.5 3.0 mA Output Noise Voltage (f = 100 Hz to 100 kHz, Iout = 1.5 A) (Note 5) Vn − 28 − mVrms Thermal Shutdown Protection (Note 5) TSHD − 160 − _C
FIXED OUTPUT VOLTAGE
(Vin = Vout + 1.6 V, TA = 25°C, Cin = Cout = 150 mF, unless otherwise noted, Note 4.) Output Voltage (10 mA < Iout < 1.5 A; 2.8 V < Vin < 9.0 V; TA = −10 to 105°C) Vout 1.176 1.2 1.224 V 1.2 V version (−2%) (+2%) Output Voltage (10 mA < Iout < 1.5 A; 2.8 V < Vin < 9.0 V; TA = −40 to 125°C) Vout 1.164 1.2 1.236 V 1.2 V version (−3%) (+3%) Output Voltage (10 mA < Iout < 1.5 A; 3.1 V < Vin < 9.0 V; TA = −10 to 105°C) Vout 1.470 1.5 1.530 V 1.5 V version (−2%) (+2%) Output Voltage (10 mA < Iout < 1.5 A; 3.1 V < Vin < 9.0 V; TA = −40 to 125°C) Vout 1.455 1.5 1.545 V 1.5 V version (−3%) (+3%) Output Voltage (10 mA < Iout < 1.5 A; 4.4 V < Vin < 9.0 V; TA = −10 to 105°C) Vout 2.744 2.8 2.856 V 2.8 V version (−2%) (+2%) Output Voltage (10 mA < Iout < 1.5 A; 4.4 V < Vin < 9.0 V; TA = −40 to 125°C) Vout 2.716 2.8 2.884 V 2.8 V version (−3%) (+3%) Output Voltage (10 mA < Iout < 1.5 A; 4.6 V < Vin < 9.0 V; TA = −10 to 105°C) Vout 2.940 3.0 3.060 V 3.0 V version (−2%) (+2%) Output Voltage (10 mA < Iout < 1.5 A; 4.6 V < Vin < 9.0 V; TA = −40 to 125°C) Vout 2.910 3.0 3.090 V 3.0 V version (−3%) (+3%) Output Voltage (10 mA < Iout < 1.5 A; 4.9 V < Vin < 9.0 V; TA = −10 to 105°C) Vout 3.234 3.3 3.366 V 3.3 V version (−2%) (+2%) Output Voltage (10 mA < Iout < 1.5 A; 4.9 V < Vin < 9.0 V; TA = −40 to 125°C) Vout 3.201 3.3 3.399 V 3.3 V version (−3%) (+3%) Line Regulation (Iout = 10 mA) (Note 5) Regline − 0.03 − % Load Regulation (10 mA < Iout < 1.5 A) (Note 5) Regload − 0.03 − % Dropout Voltage (Iout = 1.5 A, Vout = 2.5 V) (Note 6) Vdo − 0.9 1.3 V Current Limit Ilim 1.6 3.3 − A Ripple Rejection (120 Hz; Iout = 1.5 A) (Note 5) RR − 85 − dB Ripple Rejection (1 kHz; Iout = 1.5 A) (Note 5) RR − 75 − dB Ground Current (Iout = 1.5 A) IGND − 1.5 3.0 mA Output Noise Voltage (f = 100 Hz to 100 kHz, Vout = 1.2 V, Iout = 1.5 A) (Note 5) Vn − 38 − mVrms Thermal Shutdown Protection (Note 5) TSHD − 160 − _C 4. Performance guaranteed over specified operating conditions by design, guard banded test limits, and/or characterization, production tested at TJ = TA = 25_C. Low duty cycle pulse techniques are used during testing to maintain the junction temperature as close to ambient as possible. 5. Typical values are based on design and/or characterization. 6. Dropout voltage is a measurement of the minimum input/output differential at full load.
www.onsemi.com 4
