Datasheet EDR1, EDR2, EDR3 (ECE) - 2
| 制造商 | ECE |
| 描述 | Reed Relay |
| 页数 / 页 | 8 / 2 — Rely on ECE’s Relays,. and You Always Relax! |
| 文件格式/大小 | PDF / 300 Kb |
| 文件语言 | 英语 |
Rely on ECE’s Relays,. and You Always Relax!
该数据表的模型线
- EDR1D1A0500Z EDR1D1A0550Z EDR1D1A1200Z EDR1D1A1250Z EDR1D1A2400Z EDR1D1A2450Z EDR1N1A0500Z EDR1N1A0550Z EDR1N1A1200Z EDR1N1A1250Z EDR1N1A2400Z EDR1N1A2450Z
- EDR2D1A0500Z EDR2D1A0550Z EDR2D1A1200Z EDR2D1A1250Z EDR2D1A2400Z EDR2D1A2450Z EDR2D1B0500Z EDR2D1B0550Z EDR2D1B1200Z EDR2D1B1250Z EDR2D1B2400Z EDR2D1B2450Z EDR2D1C0500Z EDR2D1C0550Z EDR2D1C1200Z EDR2D1C1250Z EDR2D1C2400Z EDR2D1C2450Z EDR2D2A0500Z EDR2D2A0550Z EDR2D2A1200Z EDR2D2A1250Z EDR2D2A2400Z EDR2D2A2450Z EDR2N1A0500Z EDR2N1A0550Z EDR2N1A1200Z EDR2N1A1250Z EDR2N1A2400Z EDR2N1A2450Z EDR2N1B0500Z EDR2N1B0550Z EDR2N1B1200Z EDR2N1B1250Z EDR2N1B2400Z EDR2N1B2450Z EDR2N1C0500Z EDR2N1C0550Z EDR2N1C1200Z EDR2N1C1250Z EDR2N1C2400Z EDR2N1C2450Z EDR2N2A0500Z EDR2N2A0550Z EDR2N2A1200Z EDR2N2A1250Z EDR2N2A2400Z EDR2N2A2450Z
- EDR3D1A0500Z EDR3D1A0550Z EDR3D1A1200Z EDR3D1A1250Z EDR3D1A2400Z EDR3D1A2450Z EDR3D1B0500Z EDR3D1B0550Z EDR3D1B1200Z EDR3D1B1250Z EDR3D1B2400Z EDR3D1B2450Z EDR3D1C0500Z EDR3D1C0550Z EDR3D1C1200Z EDR3D1C1250Z EDR3D1C2400Z EDR3D1C2450Z EDR3D2A0500Z EDR3D2A0550Z EDR3D2A1200Z EDR3D2A1250Z EDR3D2A2400Z EDR3D2A2450Z EDR3N1A0500Z EDR3N1A0550Z EDR3N1A1200Z EDR3N1A1250Z EDR3N1A2400Z EDR3N1A2450Z EDR3N1B0500Z EDR3N1B0550Z EDR3N1B1200Z EDR3N1B1250Z EDR3N1B2400Z EDR3N1B2450Z EDR3N1C0500Z EDR3N1C0550Z EDR3N1C1200Z EDR3N1C1250Z EDR3N1C2400Z EDR3N1C2450Z EDR3N2A0500Z EDR3N2A0550Z EDR3N2A1200Z EDR3N2A1250Z EDR3N2A2400Z EDR3N2A2450Z
文件文字版本
Rely on ECE’s Relays, and You Always Relax!

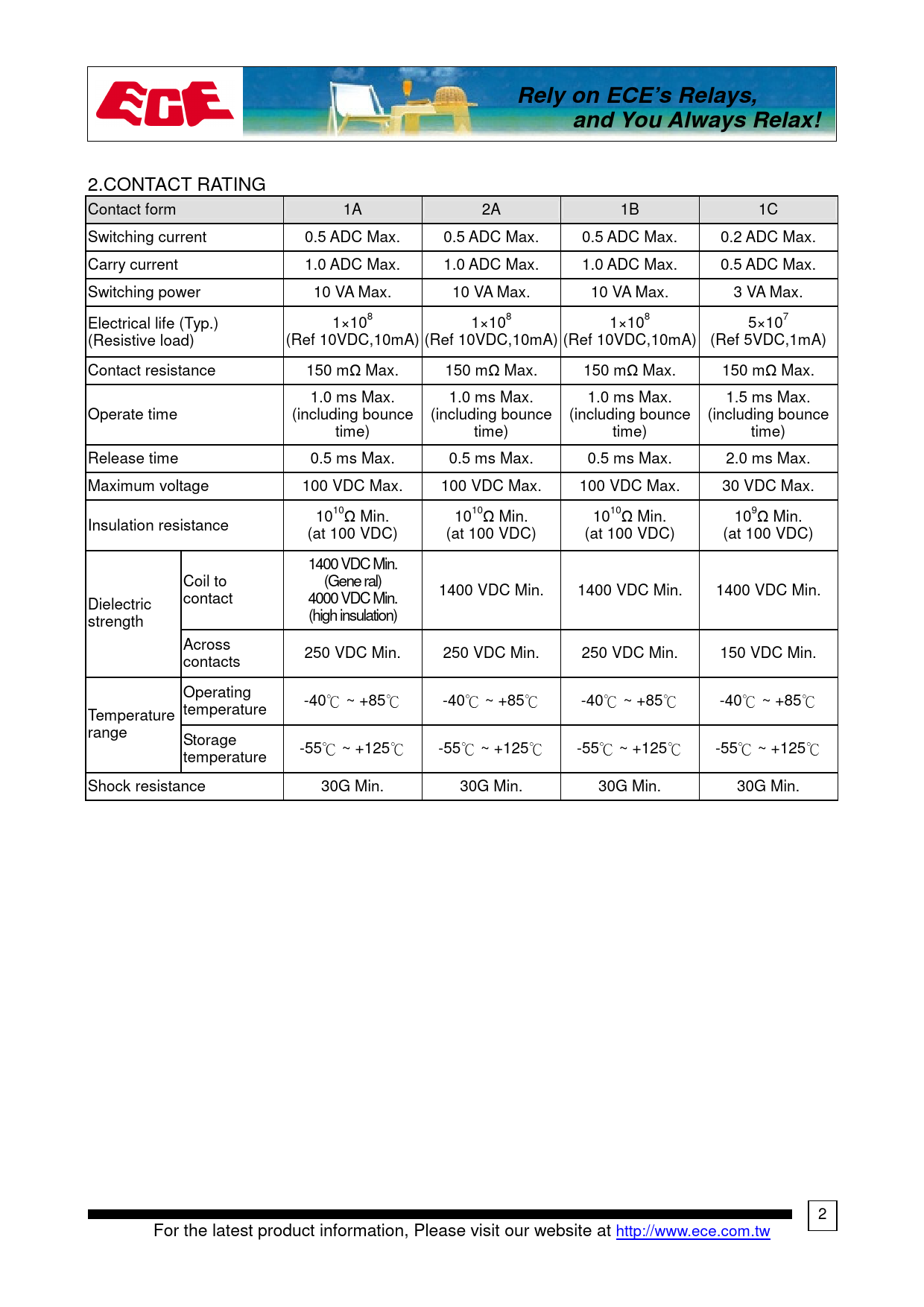

2.CONTACT RATING Contact form 1A 2A 1B 1C Switching current 0.5 ADC Max. 0.5 ADC Max. 0.5 ADC Max. 0.2 ADC Max. Carry current 1.0 ADC Max. 1.0 ADC Max. 1.0 ADC Max. 0.5 ADC Max. Switching power 10 VA Max. 10 VA Max. 10 VA Max. 3 VA Max. Electrical life (Typ.) 1×108 1×108 1×108 5×107 (Resistive load) (Ref 10VDC,10mA) (Ref 10VDC,10mA) (Ref 10VDC,10mA) (Ref 5VDC,1mA) Contact resistance 150 mΩ Max. 150 mΩ Max. 150 mΩ Max. 150 mΩ Max. 1.0 ms Max. 1.0 ms Max. 1.0 ms Max. 1.5 ms Max. Operate time (including bounce (including bounce (including bounce (including bounce time) time) time) time) Release time 0.5 ms Max. 0.5 ms Max. 0.5 ms Max. 2.0 ms Max. Maximum voltage 100 VDC Max. 100 VDC Max. 100 VDC Max. 30 VDC Max. 1010Ω Min. 1010Ω Min. 1010Ω Min. 109Ω Min. Insulation resistance (at 100 VDC) (at 100 VDC) (at 100 VDC) (at 100 VDC) 1400 VDC Min. Coil to (Gene ral) 1400 VDC Min. 1400 VDC Min. 1400 VDC Min. contact 4000 VDC Min. Dielectric (high insulation) strength Across 250 VDC Min. 250 VDC Min. 250 VDC Min. 150 VDC Min. contacts Operating -40℃ ~ +85℃ -40℃ ~ +85℃ -40℃ ~ +85℃ -40℃ ~ +85℃ temperature Temperature range Storage -55℃ ~ +125℃ -55℃ ~ +125℃ -55℃ ~ +125℃ -55℃ ~ +125℃ temperature Shock resistance 30G Min. 30G Min. 30G Min. 30G Min. 2 For the latest product information, Please visit our website at http://www.ece.com.tw
2.CONTACT RATING Contact form 1A 2A 1B 1C Switching current 0.5 ADC Max. 0.5 ADC Max. 0.5 ADC Max. 0.2 ADC Max. Carry current 1.0 ADC Max. 1.0 ADC Max. 1.0 ADC Max. 0.5 ADC Max. Switching power 10 VA Max. 10 VA Max. 10 VA Max. 3 VA Max. Electrical life (Typ.) 1×108 1×108 1×108 5×107 (Resistive load) (Ref 10VDC,10mA) (Ref 10VDC,10mA) (Ref 10VDC,10mA) (Ref 5VDC,1mA) Contact resistance 150 mΩ Max. 150 mΩ Max. 150 mΩ Max. 150 mΩ Max. 1.0 ms Max. 1.0 ms Max. 1.0 ms Max. 1.5 ms Max. Operate time (including bounce (including bounce (including bounce (including bounce time) time) time) time) Release time 0.5 ms Max. 0.5 ms Max. 0.5 ms Max. 2.0 ms Max. Maximum voltage 100 VDC Max. 100 VDC Max. 100 VDC Max. 30 VDC Max. 1010Ω Min. 1010Ω Min. 1010Ω Min. 109Ω Min. Insulation resistance (at 100 VDC) (at 100 VDC) (at 100 VDC) (at 100 VDC) 1400 VDC Min. Coil to (Gene ral) 1400 VDC Min. 1400 VDC Min. 1400 VDC Min. contact 4000 VDC Min. Dielectric (high insulation) strength Across 250 VDC Min. 250 VDC Min. 250 VDC Min. 150 VDC Min. contacts Operating -40℃ ~ +85℃ -40℃ ~ +85℃ -40℃ ~ +85℃ -40℃ ~ +85℃ temperature Temperature range Storage -55℃ ~ +125℃ -55℃ ~ +125℃ -55℃ ~ +125℃ -55℃ ~ +125℃ temperature Shock resistance 30G Min. 30G Min. 30G Min. 30G Min. 2 For the latest product information, Please visit our website at http://www.ece.com.tw
