Datasheet MOC3060, MOC3061, MOC3062, MOC3063 (Isocom) - 2
| 制造商 | Isocom |
| 描述 | Zero Crossing Triac Output, 6 Pin |
| 页数 / 页 | 11 / 2 — MOC306x. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise … |
| 文件格式/大小 | PDF / 3.2 Mb |
| 文件语言 | 英语 |

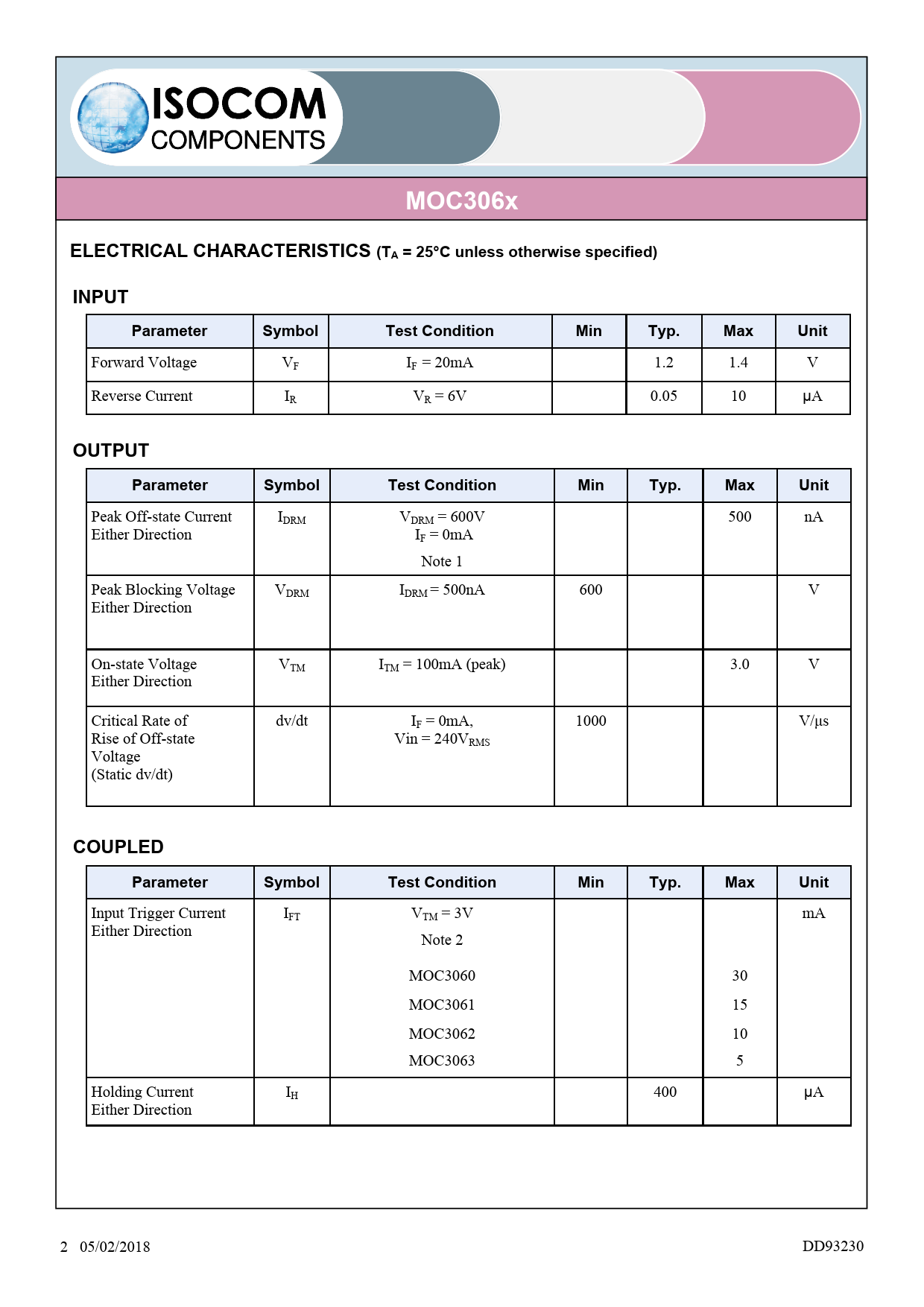

MOC306x. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified). INPUT. Parameter. Symbol. Test Condition. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
MOC306x ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) INPUT Parameter Symbol Test Condition Min Typ. Max Unit
Forward Voltage V F IF = 20mA 1.2 1.4 V Reverse Current IR VR = 6V 0.05 10 μA
OUTPUT Parameter Symbol Test Condition Min Typ. Max Unit
Peak Off-state Current IDRM VDRM = 600V 500 nA Either Direction IF = 0mA Note 1 Peak Blocking Voltage VDRM IDRM = 500nA 600 V Either Direction On-state Voltage VTM ITM = 100mA (peak) 3.0 V Either Direction Critical Rate of dv/dt I 1000 V/μs F = 0mA, Rise of Off-state Vin = 240VRMS Voltage (Static dv/dt)
COUPLED Parameter Symbol Test Condition Min Typ. Max Unit
Input Trigger Current I mA FT VTM = 3V Either Direction Note 2 MOC3060 30 MOC3061 15 MOC3062 10 MOC3063 5 Holding Current IH 400 μA Either Direction 2 05/02/2018 DD93230
Forward Voltage V F IF = 20mA 1.2 1.4 V Reverse Current IR VR = 6V 0.05 10 μA
OUTPUT Parameter Symbol Test Condition Min Typ. Max Unit
Peak Off-state Current IDRM VDRM = 600V 500 nA Either Direction IF = 0mA Note 1 Peak Blocking Voltage VDRM IDRM = 500nA 600 V Either Direction On-state Voltage VTM ITM = 100mA (peak) 3.0 V Either Direction Critical Rate of dv/dt I 1000 V/μs F = 0mA, Rise of Off-state Vin = 240VRMS Voltage (Static dv/dt)
COUPLED Parameter Symbol Test Condition Min Typ. Max Unit
Input Trigger Current I mA FT VTM = 3V Either Direction Note 2 MOC3060 30 MOC3061 15 MOC3062 10 MOC3063 5 Holding Current IH 400 μA Either Direction 2 05/02/2018 DD93230
