Datasheet MB2S, MB4S, MB6S (Vishay) - 4
| 制造商 | Vishay |
| 描述 | Miniature Glass Passivated Fast Recovery Surface-Mount Bridge Rectifier |
| 页数 / 页 | 5 / 4 — MB2S, MB4S, MB6S. PACKAGE OUTLINE DIMENSIONS. MBS (TO-269AA). Mounting … |
| 文件格式/大小 | PDF / 103 Kb |
| 文件语言 | 英语 |
MB2S, MB4S, MB6S. PACKAGE OUTLINE DIMENSIONS. MBS (TO-269AA). Mounting Pad Layout
该数据表的模型线
文件文字版本
MB2S, MB4S, MB6S
www.vishay.com Vishay General Semiconductor

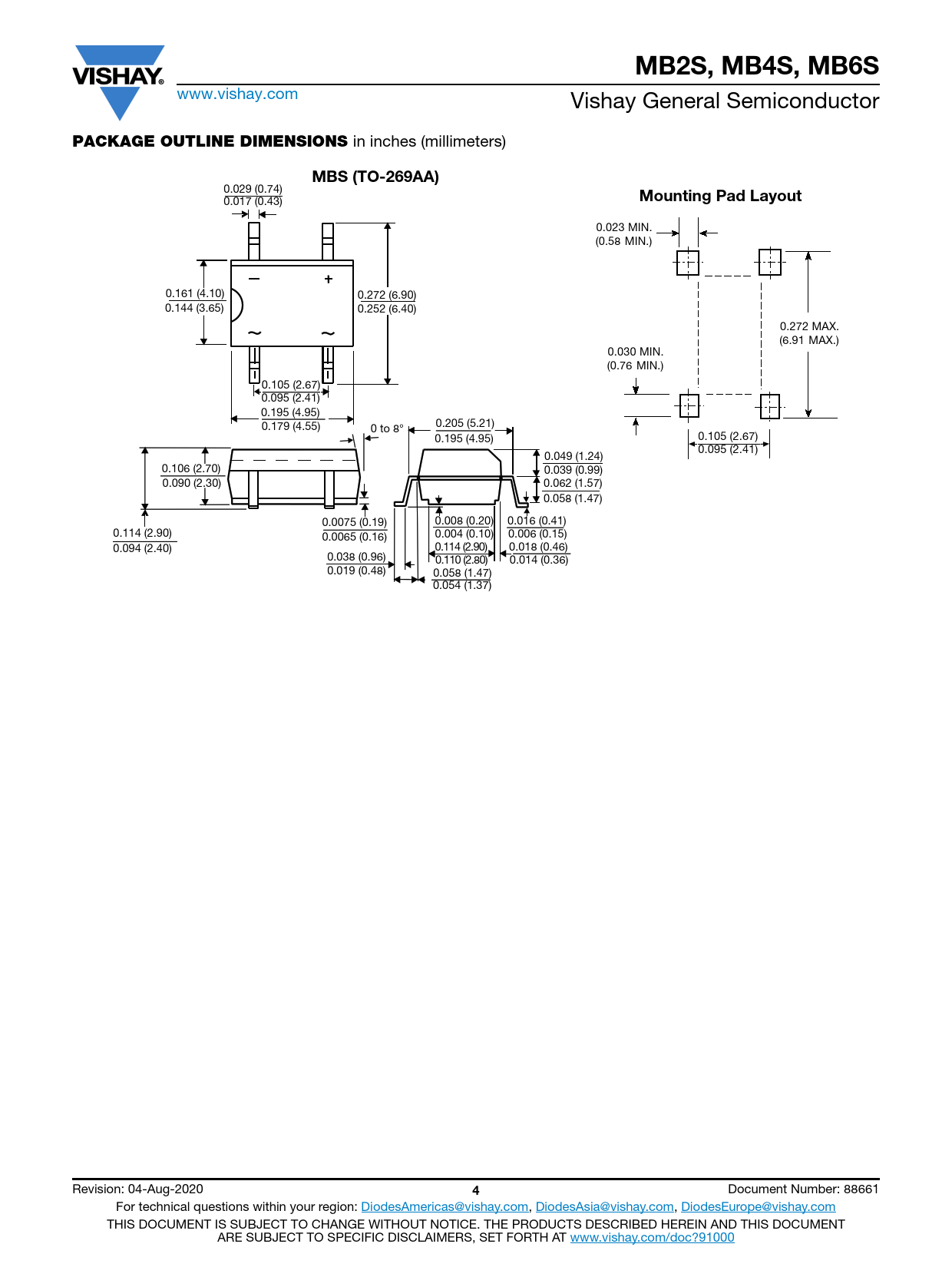

PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
MBS (TO-269AA)
0.029 (0.74) 0.017 (0.43)
Mounting Pad Layout
0.023 MIN. (0.58 MIN.) 0.161 (4.10) 0.272 (6.90) 0.144 (3.65) 0.252 (6.40) 0.272 MAX. (6.91 MAX.) 0.030 MIN. (0.76 MIN.) 0.105 (2.67) 0.095 (2.41) 0.195 (4.95) 0.179 (4.55) 0.205 (5.21) 0 to 8° 0.195 (4.95) 0.105 (2.67) 0.095 (2.41) 0.049 (1.24) 0.106 (2.70) 0.039 (0.99) 0.090 (2.30) 0.062 (1.57) 0.058 (1.47) 0.0075 (0.19) 0.008 (0.20) 0.016 (0.41) 0.114 (2.90) 0.004 (0.10) 0.006 (0.15) 0.0065 (0.16) 0.094 (2.40) 0.114 (2.90) 0.018 (0.46) 0.038 (0.96) 0.110 (2.80) 0.014 (0.36) 0.019 (0.48) 0.058 (1.47) 0.054 (1.37) Revision: 04-Aug-2020
