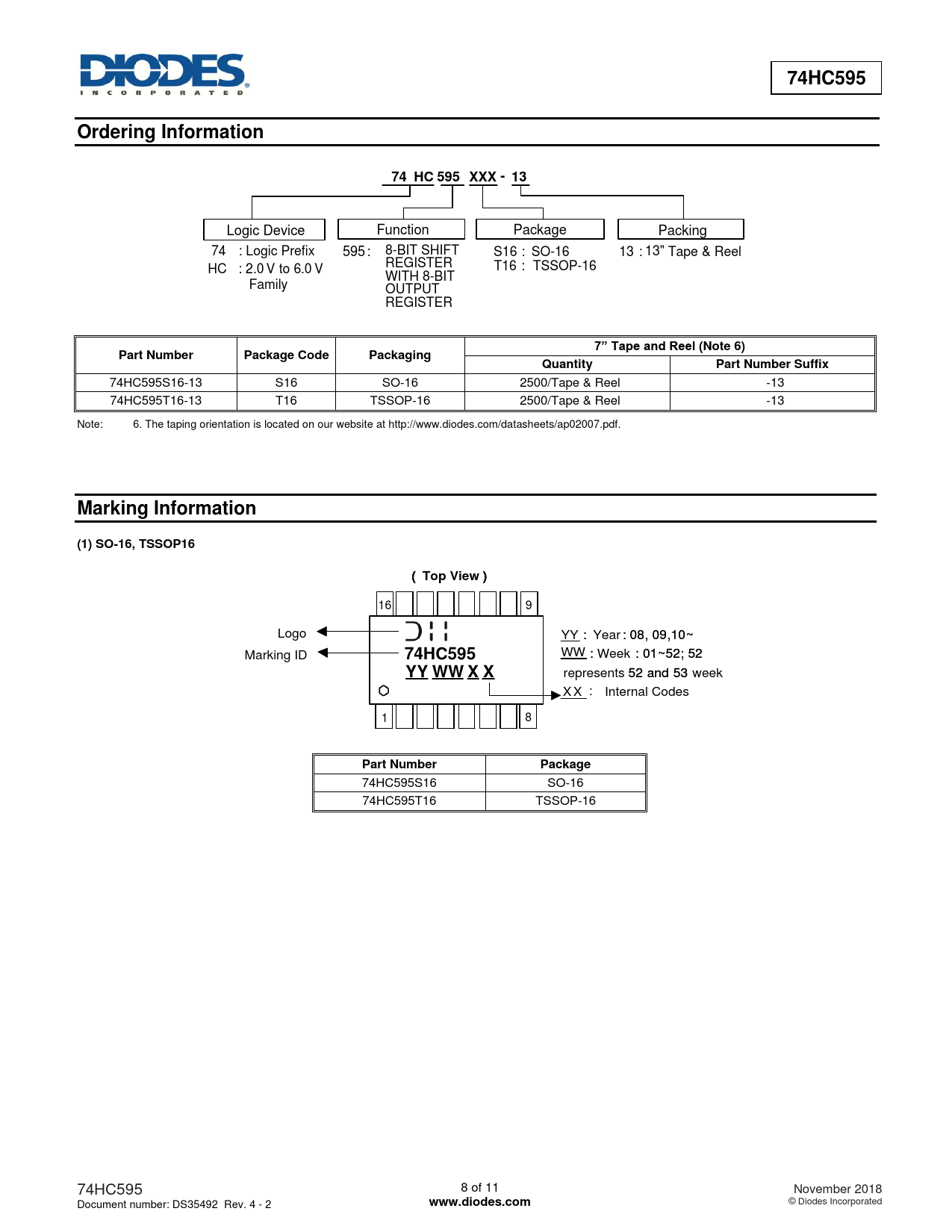

74HC595 Ordering Information 74 HC 595 XXX - 13
Logic Device Function Package Packing 74 : Logic Prefix 595 : 8-BIT SHIFT S16 : SO-16 13 : 13" Tape & Reel HC : 2.0 V to 6.0 V REGISTER T16 : TSSOP-16 WITH 8-BIT Family OUTPUT REGISTER
7” Tape and eel (Note 6) Part Number Package Code Packaging Quantity Part Number Suffix
74HC595S16-13 S16 SO-16 2500/Tape & Reel -13 74HC595T16-13 T16 TSSOP-16 2500/Tape & Reel -13 Note: 6. The taping orientation is located on our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information (1) SO-16, TSSOP16 ( Top View )
1 16 8 9 4 Logo YY : Year : 08, 09,10~ Marking ID
74HC595
WW : Week : 01~52; 52
YY WW X X
represents 52 and 53 week X X : Internal Codes 1 7 8
Part Number Package
74HC595S16 SO-16 74HC595T16 TSSOP-16 74HC595 8 of 11 November 2018 Document number: DS35492 Rev. 4 - 2
