Datasheet SiC951 (Vishay) - 4
| 制造商 | Vishay |
| 描述 | 4.5 V to 20 V Input, 25 A MicroBRICK DC/DC Regulator Module With PMBus Interface |
| 页数 / 页 | 28 / 4 — SiC951. ORDERING INFORMATION. OPERATING. MINIMUM. PART. LIGHT LOAD. PART … |
| 文件格式/大小 | PDF / 3.1 Mb |
| 文件语言 | 英语 |
SiC951. ORDERING INFORMATION. OPERATING. MINIMUM. PART. LIGHT LOAD. PART NUMBER. JUNCTION. PACKAGE PACKAGING. ORDER. MARKING. DD, VDRV. MODE
该数据表的模型线
文件文字版本

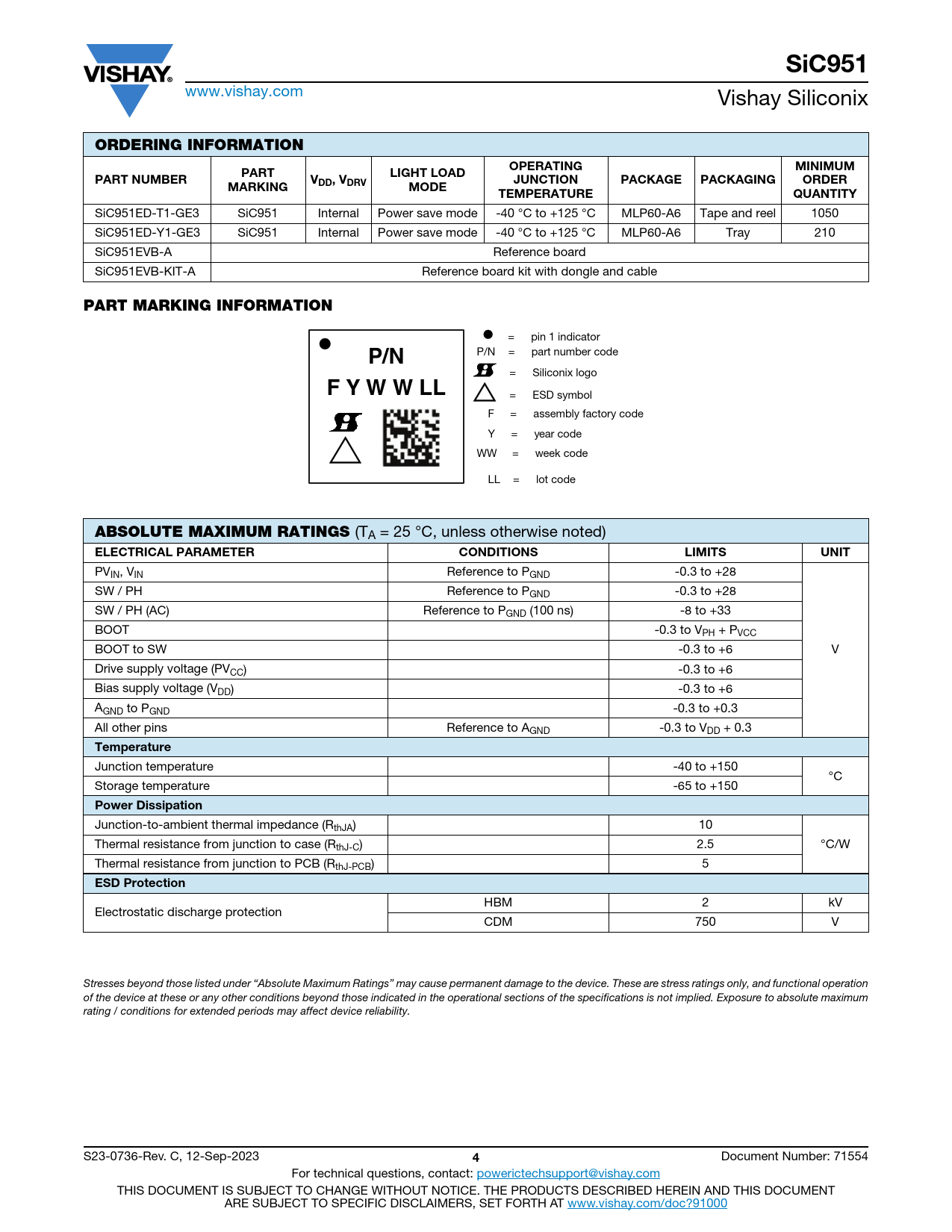

SiC951
www.vishay.com Vishay Siliconix
ORDERING INFORMATION OPERATING MINIMUM PART LIGHT LOAD PART NUMBER V JUNCTION PACKAGE PACKAGING ORDER MARKING DD, VDRV MODE TEMPERATURE QUANTITY
SiC951ED-T1-GE3 SiC951 Internal Power save mode -40 °C to +125 °C MLP60-A6 Tape and reel 1050 SiC951ED-Y1-GE3 SiC951 Internal Power save mode -40 °C to +125 °C MLP60-A6 Tray 210 SiC951EVB-A Reference board SiC951EVB-KIT-A Reference board kit with dongle and cable
PART MARKING INFORMATION
= pin 1 indicator P/N = part number code
P/N
= Siliconix logo
F Y W W LL
= ESD symbol F = assembly factory code Y = year code WW = week code LL = lot code
ABSOLUTE MAXIMUM RATINGS
(TA = 25 °C, unless otherwise noted)
ELECTRICAL PARAMETER CONDITIONS LIMITS UNIT
PVIN, VIN Reference to PGND -0.3 to +28 SW / PH Reference to PGND -0.3 to +28 SW / PH (AC) Reference to PGND (100 ns) -8 to +33 BOOT -0.3 to VPH + PVCC BOOT to SW -0.3 to +6 V Drive supply voltage (PVCC) -0.3 to +6 Bias supply voltage (VDD) -0.3 to +6 AGND to PGND -0.3 to +0.3 All other pins Reference to AGND -0.3 to VDD + 0.3
Temperature
Junction temperature -40 to +150 °C Storage temperature -65 to +150
Power Dissipation
Junction-to-ambient thermal impedance (RthJA) 10 Thermal resistance from junction to case (RthJ-C) 2.5 °C/W Thermal resistance from junction to PCB (RthJ-PCB) 5
ESD Protection
HBM 2 kV Electrostatic discharge protection CDM 750 V Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating / conditions for extended periods may affect device reliability. S23-0736-Rev. C, 12-Sep-2023
4
Document Number: 71554 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
