Datasheet MOC3051M, MOC3052M, MOC3053M (ON Semiconductor) - 8
| 制造商 | ON Semiconductor |
| 描述 | 6-Pin DIP Random-Phase Triac Driver Optocoupler (600 Volt Peak) |
| 页数 / 页 | 13 / 8 — MOC3051M, MOC3052M, MOC3053M. REFLOW PROFILE. Figure 11. Reflow Profile. … |
| 文件格式/大小 | PDF / 405 Kb |
| 文件语言 | 英语 |

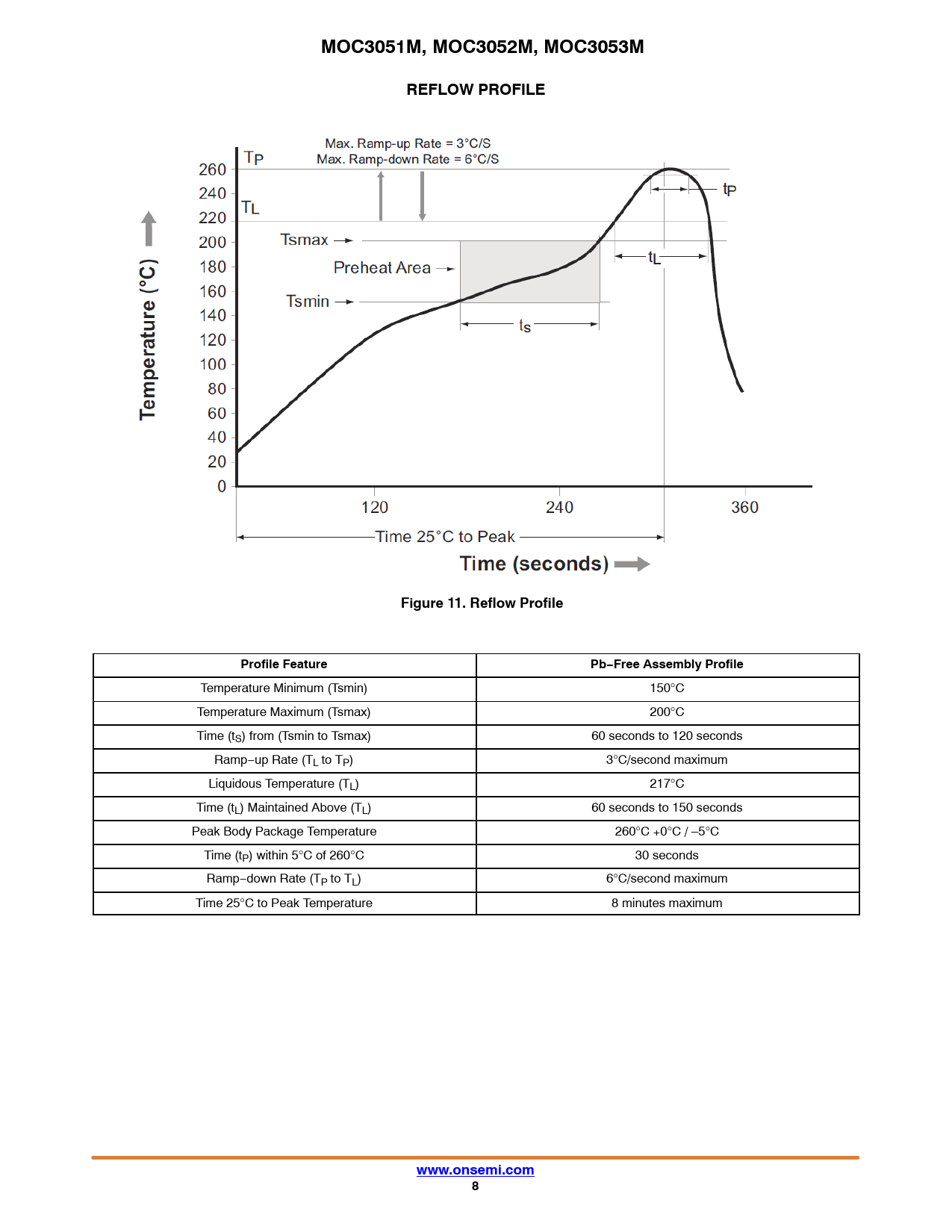

MOC3051M, MOC3052M, MOC3053M. REFLOW PROFILE. Figure 11. Reflow Profile. Profile Feature. Pb−Free Assembly Profile
该数据表的模型线
文件文字版本
MOC3051M, MOC3052M, MOC3053M REFLOW PROFILE Figure 11. Reflow Profile Profile Feature Pb−Free Assembly Profile
Temperature Minimum (Tsmin) 150°C Temperature Maximum (Tsmax) 200°C Time (tS) from (Tsmin to Tsmax) 60 seconds to 120 seconds Ramp−up Rate (TL to TP) 3°C/second maximum Liquidous Temperature (TL) 217°C Time (tL) Maintained Above (TL) 60 seconds to 150 seconds Peak Body Package Temperature 260°C +0°C / –5°C Time (tP) within 5°C of 260°C 30 seconds Ramp−down Rate (TP to TL) 6°C/second maximum Time 25°C to Peak Temperature 8 minutes maximum
www.onsemi.com 8
Temperature Minimum (Tsmin) 150°C Temperature Maximum (Tsmax) 200°C Time (tS) from (Tsmin to Tsmax) 60 seconds to 120 seconds Ramp−up Rate (TL to TP) 3°C/second maximum Liquidous Temperature (TL) 217°C Time (tL) Maintained Above (TL) 60 seconds to 150 seconds Peak Body Package Temperature 260°C +0°C / –5°C Time (tP) within 5°C of 260°C 30 seconds Ramp−down Rate (TP to TL) 6°C/second maximum Time 25°C to Peak Temperature 8 minutes maximum
