Datasheet BL8536 (Belling) - 5
| 制造商 | Belling |
| 描述 | 0.9V Startup, 1MHz, 300mA Iout, Low Iq, Synchronous Boost Converter |
| 页数 / 页 | 6 / 5 — BL8536. Input and output capacitor selection. PACKAGE OUTLINE |
| 文件格式/大小 | PDF / 795 Kb |
| 文件语言 | 英语 |

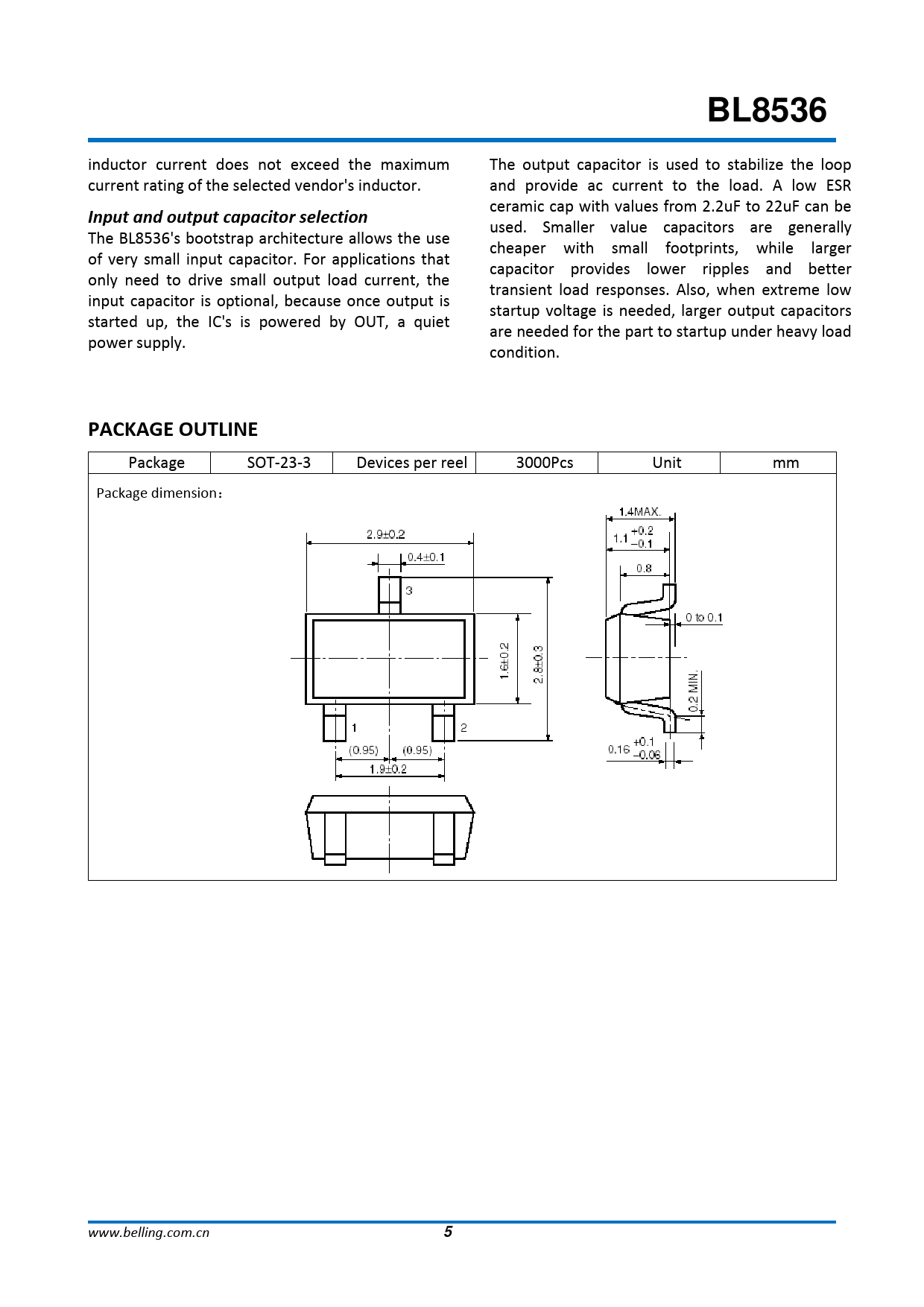

BL8536. Input and output capacitor selection. PACKAGE OUTLINE
该数据表的模型线
文件文字版本
BL8536
inductor current does not exceed the maximum The output capacitor is used to stabilize the loop current rating of the selected vendor's inductor. and prov ide ac current to the load. A low ESR ceramic cap with values from 2.2uF to 22uF can be
Input and output capacitor selection
used. Smaller value capacitors are generally The BL8536's bootstrap architecture allows the use cheaper with small footprints, while larger of very small input capacitor. For applications that capacitor provides lower ripples and better only need to drive small output load current, the transient load responses. Also, when extreme low input capacitor is optional, because once output is startup voltage is needed, larger output capacitors started up, the IC's is powered by OUT, a quiet are needed for the part to startup under heavy load power supply. condition.
PACKAGE OUTLINE
Package SOT-23-3 Devices per reel 3000Pcs Unit mm Package dimension： www.belling.com.cn
5
