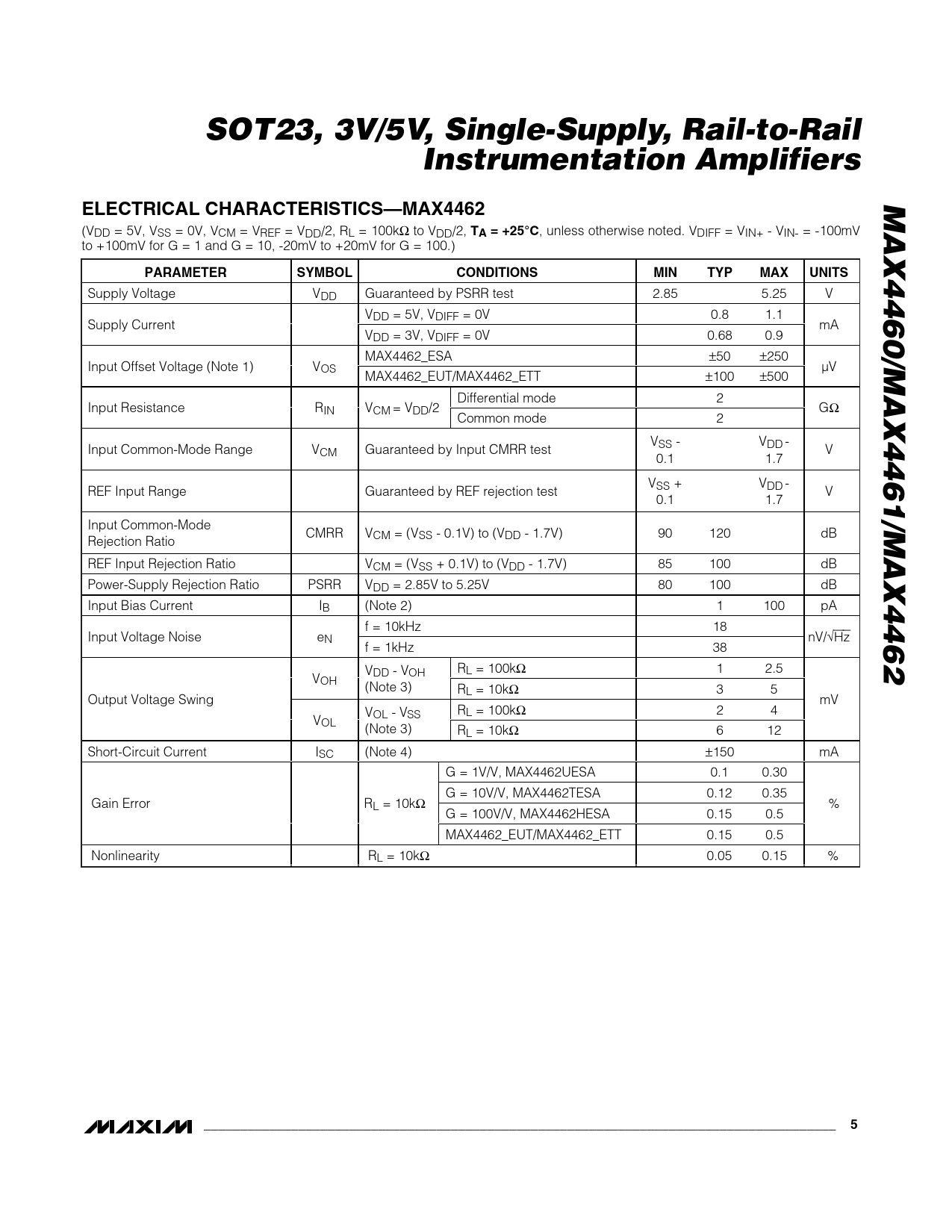

SOT23, 3V/5V, Single-Supply, Rail-to-Rail Instrumentation Amplifiers MAX4460/MAX4461/MAX4462 ELECTRICAL CHARACTERISTICS—MAX4462
(VDD = 5V, VSS = 0V, VCM = VREF = VDD/2, RL = 100kΩ to VDD/2,
TA = +25°C
, unless otherwise noted. VDIFF = VIN+ - VIN- = -100mV to +100mV for G = 1 and G = 10, -20mV to +20mV for G = 100.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply Voltage VDD Guaranteed by PSRR test 2.85 5.25 V VDD = 5V, VDIFF = 0V 0.8 1.1 Supply Current mA VDD = 3V, VDIFF = 0V 0.68 0.9 MAX4462_ESA ±50 ±250 Input Offset Voltage (Note 1) VOS µV MAX4462_EUT/MAX4462_ETT ±100 ±500 Differential mode 2 Input Resistance RIN VCM = V GΩ DD/2 Common mode 2 V V - Input Common-Mode Range V SS - DD CM Guaranteed by Input CMRR test V 0.1 1.7 V V - REF Input Range Guaranteed by REF rejection test SS + DD V 0.1 1.7 Input Common-Mode CMRR VCM = (VSS - 0.1V) to (VDD - 1.7V) 90 120 dB Rejection Ratio REF Input Rejection Ratio VCM = (VSS + 0.1V) to (VDD - 1.7V) 85 100 dB Power-Supply Rejection Ratio PSRR VDD = 2.85V to 5.25V 80 100 dB Input Bias Current IB (Note 2) 1 100 pA f = 10kHz 18 Input Voltage Noise eN nV/√Hz f = 1kHz 38 V RL = 100k DD - VOH Ω 1 2.5 VOH (Note 3) RL = 10kΩ 3 5 Output Voltage Swing mV V RL = 100k OL - VSS Ω 2 4 VOL (Note 3) RL = 10kΩ 6 12 Short-Circuit Current ISC (Note 4) ±150 mA G = 1V/V, MAX4462UESA 0.1 0.30 G = 10V/V, MAX4462TESA 0.12 0.35 Gain Error RL = 10kΩ % G = 100V/V, MAX4462HESA 0.15 0.5 MAX4462_EUT/MAX4462_ETT 0.15 0.5 Nonlinearity RL = 10kΩ 0.05 0.15 %
