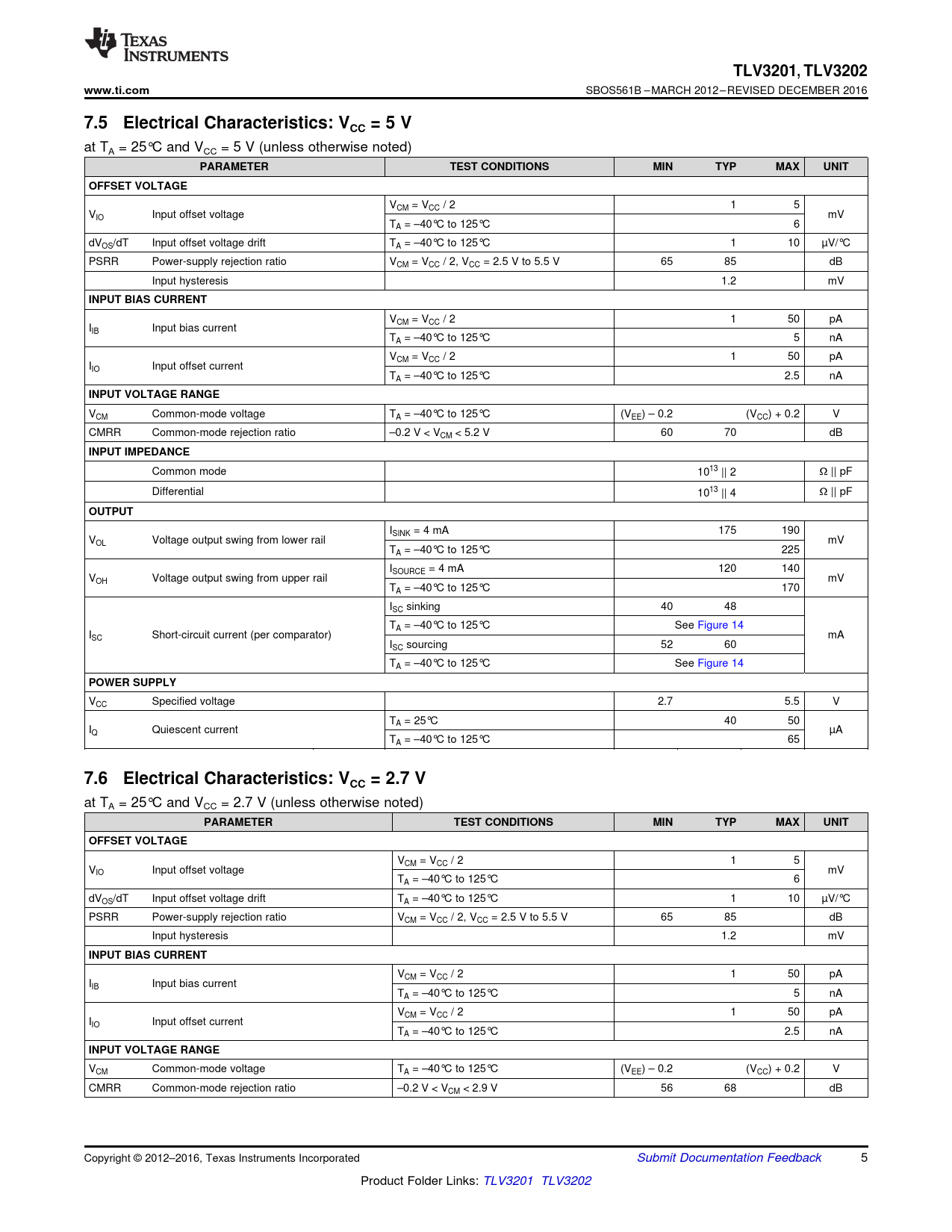

TLV3201, TLV3202 www.ti.com
SBOS561B – MARCH 2012 – REVISED DECEMBER 2016
7.5 Electrical Characteristics: VCC = 5 V
at TA = 25°C and VCC = 5 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT OFFSET VOLTAGE
VCM = VCC / 2 1 5 VIO Input offset voltage mV TA = –40°C to 125°C 6 dVOS/dT Input offset voltage drift TA = –40°C to 125°C 1 10 µV/°C PSRR Power-supply rejection ratio VCM = VCC / 2, VCC = 2.5 V to 5.5 V 65 85 dB Input hysteresis 1.2 mV
INPUT BIAS CURRENT
VCM = VCC / 2 1 50 pA IIB Input bias current TA = –40°C to 125°C 5 nA VCM = VCC / 2 1 50 pA IIO Input offset current TA = –40°C to 125°C 2.5 nA
INPUT VOLTAGE RANGE
VCM Common-mode voltage TA = –40°C to 125°C (VEE) – 0.2 (VCC) + 0.2 V CMRR Common-mode rejection ratio –0.2 V < VCM < 5.2 V 60 70 dB
INPUT IMPEDANCE
Common mode 1013 || 2 Ω || pF Differential 1013 || 4 Ω || pF
OUTPUT
ISINK = 4 mA 175 190 VOL Voltage output swing from lower rail mV TA = –40°C to 125°C 225 ISOURCE = 4 mA 120 140 VOH Voltage output swing from upper rail mV TA = –40°C to 125°C 170 ISC sinking 40 48 TA = –40°C to 125°C See Figure 14 ISC Short-circuit current (per comparator) mA ISC sourcing 52 60 TA = –40°C to 125°C See Figure 14
POWER SUPPLY
VCC Specified voltage 2.7 5.5 V TA = 25°C 40 50 IQ Quiescent current µA TA = –40°C to 125°C 65
7.6 Electrical Characteristics: VCC = 2.7 V
at TA = 25°C and VCC = 2.7 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT OFFSET VOLTAGE
VCM = VCC / 2 1 5 VIO Input offset voltage mV TA = –40°C to 125°C 6 dVOS/dT Input offset voltage drift TA = –40°C to 125°C 1 10 µV/°C PSRR Power-supply rejection ratio VCM = VCC / 2, VCC = 2.5 V to 5.5 V 65 85 dB Input hysteresis 1.2 mV
INPUT BIAS CURRENT
VCM = VCC / 2 1 50 pA IIB Input bias current TA = –40°C to 125°C 5 nA VCM = VCC / 2 1 50 pA IIO Input offset current TA = –40°C to 125°C 2.5 nA
INPUT VOLTAGE RANGE
VCM Common-mode voltage TA = –40°C to 125°C (VEE) – 0.2 (VCC) + 0.2 V CMRR Common-mode rejection ratio –0.2 V < VCM < 2.9 V 56 68 dB Copyright © 2012–2016, Texas Instruments Incorporated Submit Documentation Feedback 5 Product Folder Links: TLV3201 TLV3202 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Device Comparison Table 6 Pin Configuration and Functions 7 Specifications 7.1 Absolute Maximum Ratings 7.2 ESD Ratings 7.3 Recommended Operating Conditions 7.4 Thermal Information 7.5 Electrical Characteristics: VCC = 5 V 7.6 Electrical Characteristics: VCC = 2.7 V 7.7 Switching Characteristics 7.8 Typical Characteristics 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Operating Voltage 8.3.2  Input Overvoltage Protection 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.1.1 Comparator Inputs 9.1.2 External Hysteresis 9.1.2.1 Inverting Comparator with Hysteresis 9.1.2.2 Noninverting Comparator With Hysteresis 9.1.3 Capacitive Loads 9.2 Typical Applications 9.2.1 TLV3201 Configured as an AC-Coupled Comparator 9.2.1.1 Design Requirements 9.2.1.2 Detailed Design Procedure 9.2.1.3 Application Curve 9.2.2 TLV3201 and OPA320 Configured as a Fast-Response Output Current Monitor 9.2.3 TLV3201 and TMP20 Configured as a Precision Analog Temperature Switch 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 12 Device and Documentation Support 12.1 Device Support 12.1.1 Development Support 12.1.1.1 TINA-TI™ (Free Software Download) 12.1.1.2 Universal Op Amp EVM 12.1.1.3 TI Precision Designs 12.1.1.4 WEBENCH Filter Designer 12.2 Documentation Support 12.2.1 Related Documentation 12.3 Related Links 12.4 Receiving Notification of Documentation Updates 12.5 Community Resource 12.6 Trademarks 12.7 Electrostatic Discharge Caution 12.8 Glossary 13 Mechanical, Packaging, and Orderable Information
