Datasheet MOC3031M, MOC3032M, MOC3033M, MOC3041M, MOC3042M, MOC3043M (ON Semiconductor) - 7
| 制造商 | ON Semiconductor |
| 描述 | 6-Pin DIP Zero-Cross Triac Driver Output Optocoupler (250/400 Volt Peak) |
| 页数 / 页 | 12 / 7 — MOC3031M, MOC3032M, MOC3033M, MOC3041M, MOC3042M, MOC3043M |
| 文件格式/大小 | PDF / 329 Kb |
| 文件语言 | 英语 |
MOC3031M, MOC3032M, MOC3033M, MOC3041M, MOC3042M, MOC3043M
该数据表的模型线
文件文字版本
MOC3031M, MOC3032M, MOC3033M, MOC3041M, MOC3042M, MOC3043M
240 VAC R1 D1 1 6 VCC R MOC3041M in 2 5 SCR MOC3042M SCR MOC3043M 360 W 3 4 R2 D2 LOAD

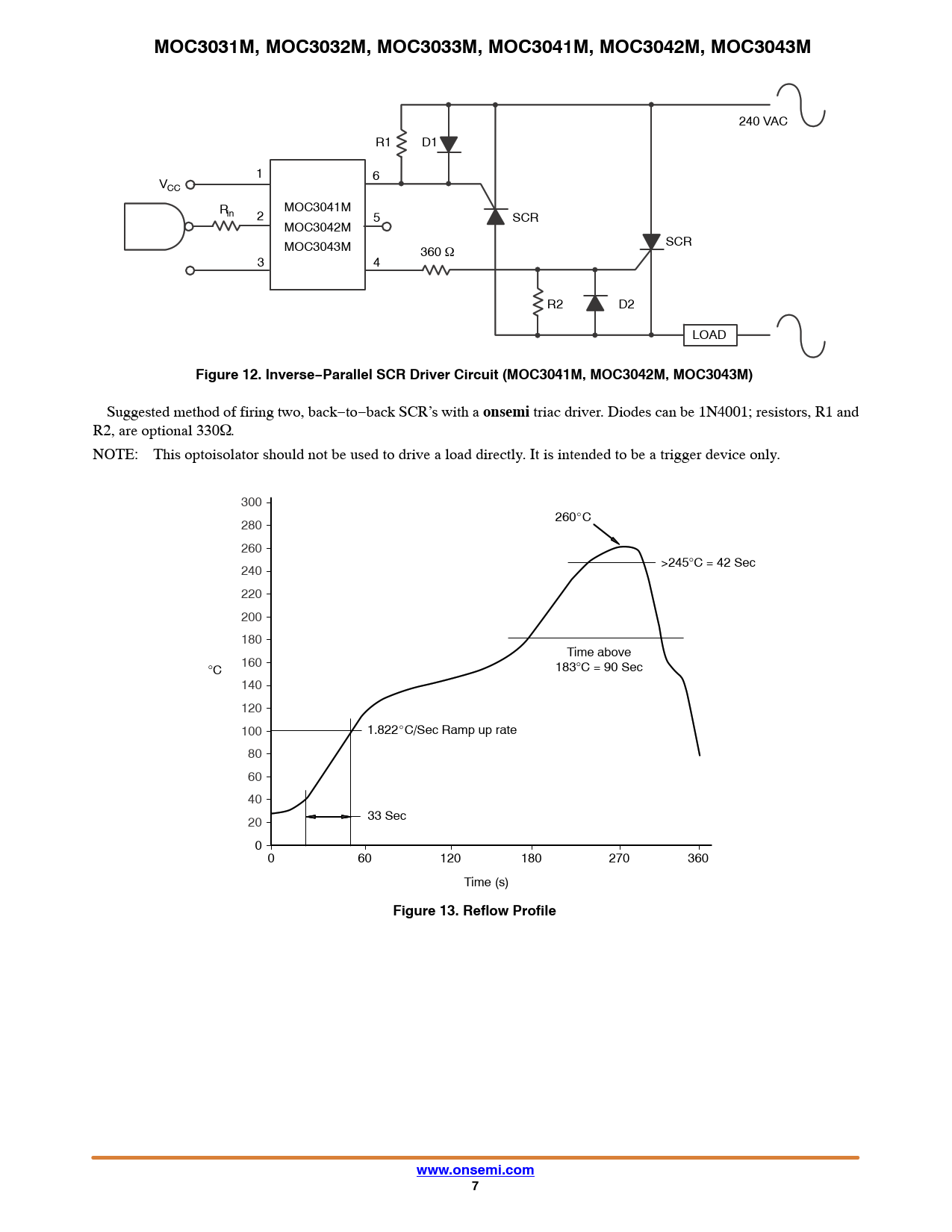

Figure 12. Inverse−Parallel SCR Driver Circuit (MOC3041M, MOC3042M, MOC3043M)
Suggested method of firing two, back−to−back SCR’s with a
onsemi
triac driver. Diodes can be 1N4001; resistors, R1 and R2, are optional 330W. NOTE: This optoisolator should not be used to drive a load directly. It is intended to be a trigger device only. 300 260_C 280 260 >245°C = 42 Sec 240 220 200 180 Time above 160 183 °C °C = 90 Sec 140 120 100 1.822_C/Sec Ramp up rate 80 60 40 33 Sec 20 0 0 60 120 180 270 360 Time (s)
Figure 13. Reflow Profile www.onsemi.com 7
