Datasheet BC817 (Nexperia) - 3
| 制造商 | Nexperia |
| 描述 | 45 V, 500 mA NPN General-Purpose Transistors |
| 页数 / 页 | 13 / 3 — Nexperia. BC817 series. 45 V, 500 mA NPN general-purpose transistors. 8. … |
| 修订版 | 30062022 |
| 文件格式/大小 | PDF / 316 Kb |
| 文件语言 | 英语 |
Nexperia. BC817 series. 45 V, 500 mA NPN general-purpose transistors. 8. Limiting values Table 6. Limiting values. Symbol
该数据表的模型线
文件文字版本
link to page 3 link to page 3 link to page 3 link to page 3

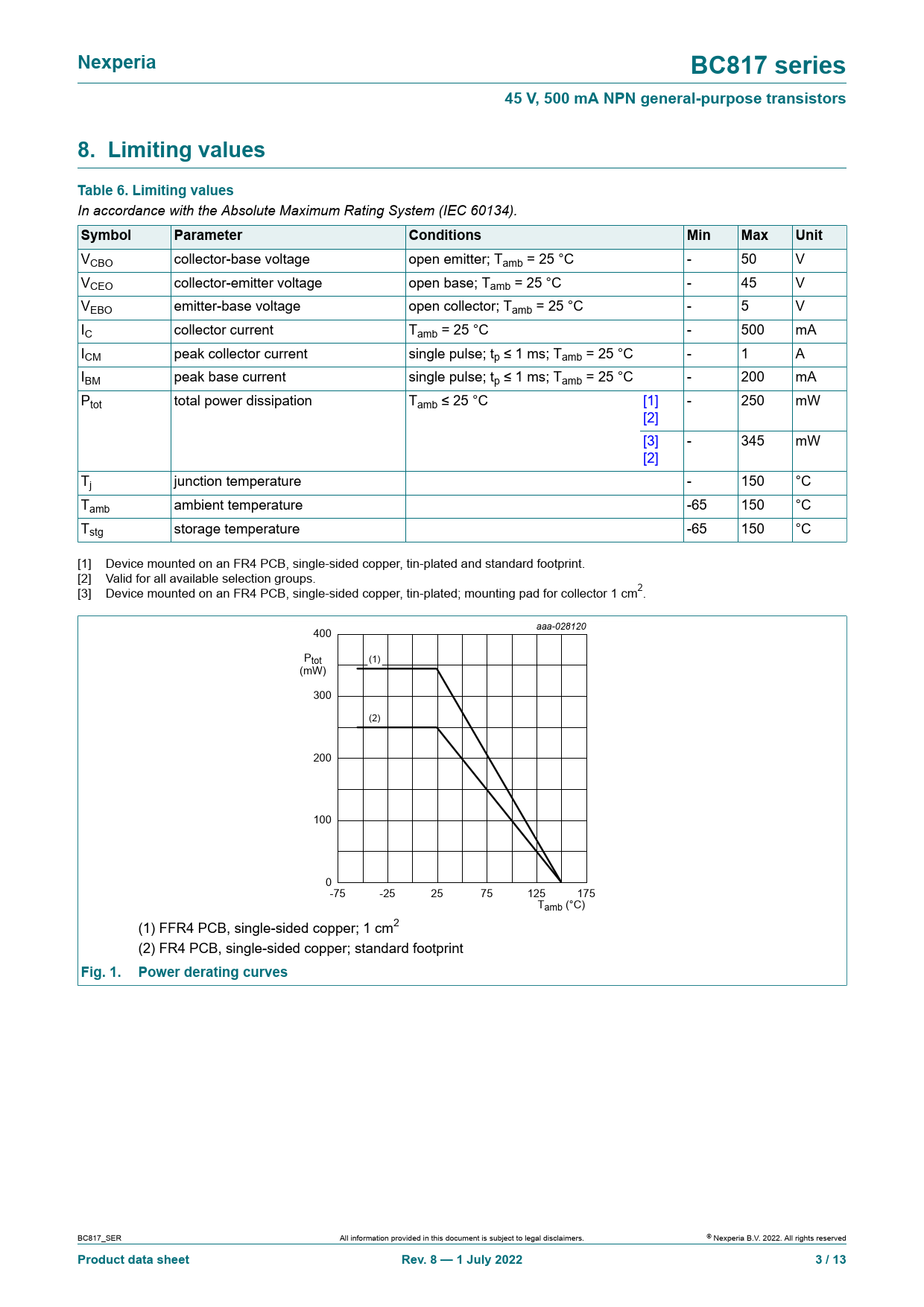

Nexperia BC817 series 45 V, 500 mA NPN general-purpose transistors 8. Limiting values Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VCBO collector-base voltage open emitter; Tamb = 25 °C - 50 V VCEO collector-emitter voltage open base; Tamb = 25 °C - 45 V VEBO emitter-base voltage open collector; Tamb = 25 °C - 5 V IC collector current Tamb = 25 °C - 500 mA ICM peak collector current single pulse; tp ≤ 1 ms; Tamb = 25 °C - 1 A IBM peak base current single pulse; tp ≤ 1 ms; Tamb = 25 °C - 200 mA Ptot total power dissipation Tamb ≤ 25 °C [1] - 250 mW [2] [3] - 345 mW [2] Tj junction temperature - 150 °C Tamb ambient temperature -65 150 °C Tstg storage temperature -65 150 °C [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] Valid for al available selection groups. [3] Device mounted on an FR4 PCB, single-sided copper, tin-plated; mounting pad for col ector 1 cm2. aaa-028120 400 Ptot (1) (mW) 300 (2) 200 100 0-75 -25 25 75 125 175 Tamb (°C) (1) FFR4 PCB, single-sided copper; 1 cm2 (2) FR4 PCB, single-sided copper; standard footprint
Fig. 1. Power derating curves
