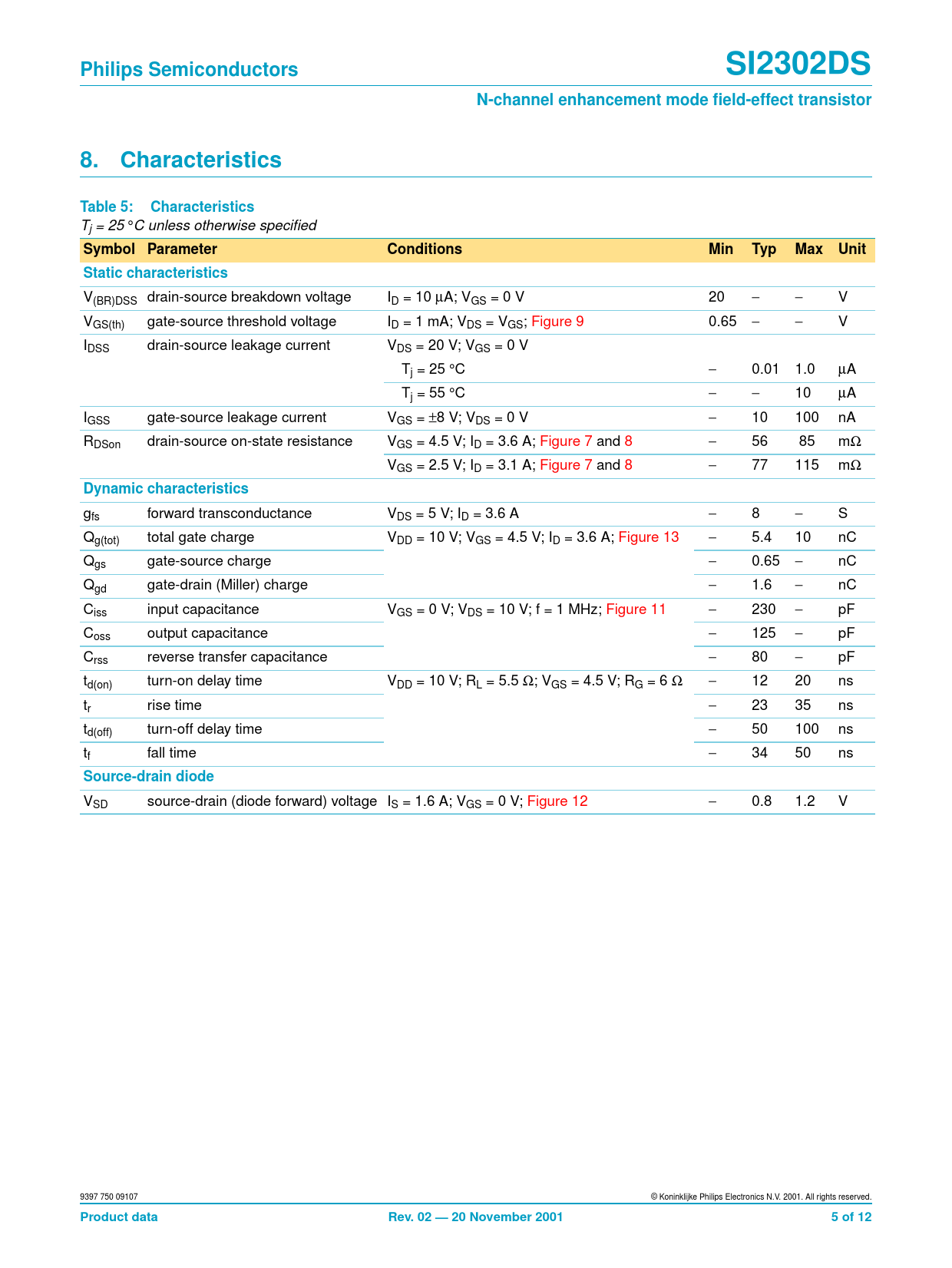

Philips Semiconductors SI2302DS N-channel enhancement mode field-effect transistor 8. Characteristics Table 5: Characteristics
Tj = 25 °C unless otherwise specified
Symbol Parameter Conditions Min Typ Max Unit Static characteristics
V(BR)DSS drain-source breakdown voltage ID = 10 µA; VGS = 0 V 20 − − V VGS(th) gate-source threshold voltage ID = 1 mA; VDS = VGS; Figure 9 0.65 − − V IDSS drain-source leakage current VDS = 20 V; VGS = 0 V Tj = 25 °C − 0.01 1.0 µA Tj = 55 °C − − 10 µA IGSS gate-source leakage current VGS = ±8 V; VDS = 0 V − 10 100 nA RDSon drain-source on-state resistance VGS = 4.5 V; ID = 3.6 A; Figure 7 and 8 − 56 85 mΩ VGS = 2.5 V; ID = 3.1 A; Figure 7 and 8 − 77 115 mΩ
Dynamic characteristics
gfs forward transconductance VDS = 5 V; ID = 3.6 A − 8 − S Qg(tot) total gate charge VDD = 10 V; VGS = 4.5 V; ID = 3.6 A; Figure 13 − 5.4 10 nC Qgs gate-source charge − 0.65 − nC Qgd gate-drain (Miller) charge − 1.6 − nC Ciss input capacitance VGS = 0 V; VDS = 10 V; f = 1 MHz; Figure 11 − 230 − pF Coss output capacitance − 125 − pF Crss reverse transfer capacitance − 80 − pF td(on) turn-on delay time VDD = 10 V; RL = 5.5 Ω; VGS = 4.5 V; RG = 6 Ω − 12 20 ns tr rise time − 23 35 ns td(off) turn-off delay time − 50 100 ns tf fall time − 34 50 ns
Source-drain diode
VSD source-drain (diode forward) voltage IS = 1.6 A; VGS = 0 V; Figure 12 − 0.8 1.2 V 9397 750 09107 © Koninklijke Philips Electronics N.V. 2001. All rights reserved.
Product data Rev. 02 — 20 November 2001 5 of 12
