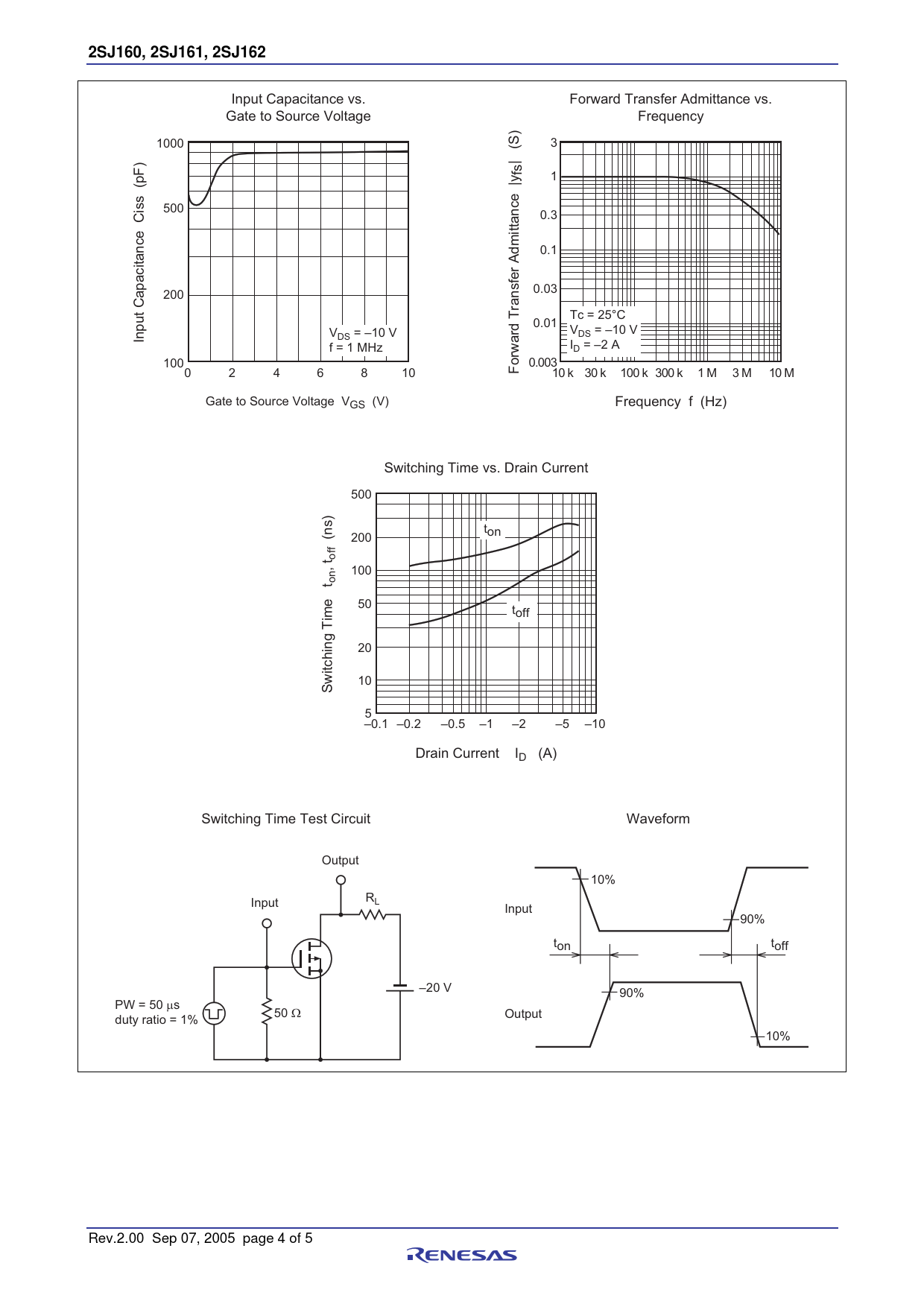

2SJ160, 2SJ161, 2SJ162
Forward Transfer Admittance vs.
Frequency Forward Transfer Admittance |yfs| (S) Input Capacitance vs.
Gate to Source Voltage Input Capacitance Ciss (pF) 1000 500 200
VDS = –10 V
f = 1 MHz
100 0 2 4 6 8 10 3
1
0.3
0.1
0.03
0.01 Tc = 25°C
VDS = –10 V
ID = –2 A 0.003
10 k 30 k 100 k 300 k 1M 3M 10 M Frequency f (Hz) Gate to Source Voltage VGS (V) Switching Time vs. Drain Current Switching Time ton, toff (ns) 500
ton 200
100
50 toff 20
10
5
–0.1 –0.2 –0.5 –1 Drain Current –2 –5 –10 ID (A) Switching Time Test Circuit Waveform Output
10%
Input RL Input 90%
ton –20 V
PW = 50 µs
duty ratio = 1% 50 Ω toff 90%
Output
10% Rev.2.00 Sep 07, 2005 page 4 of 5
