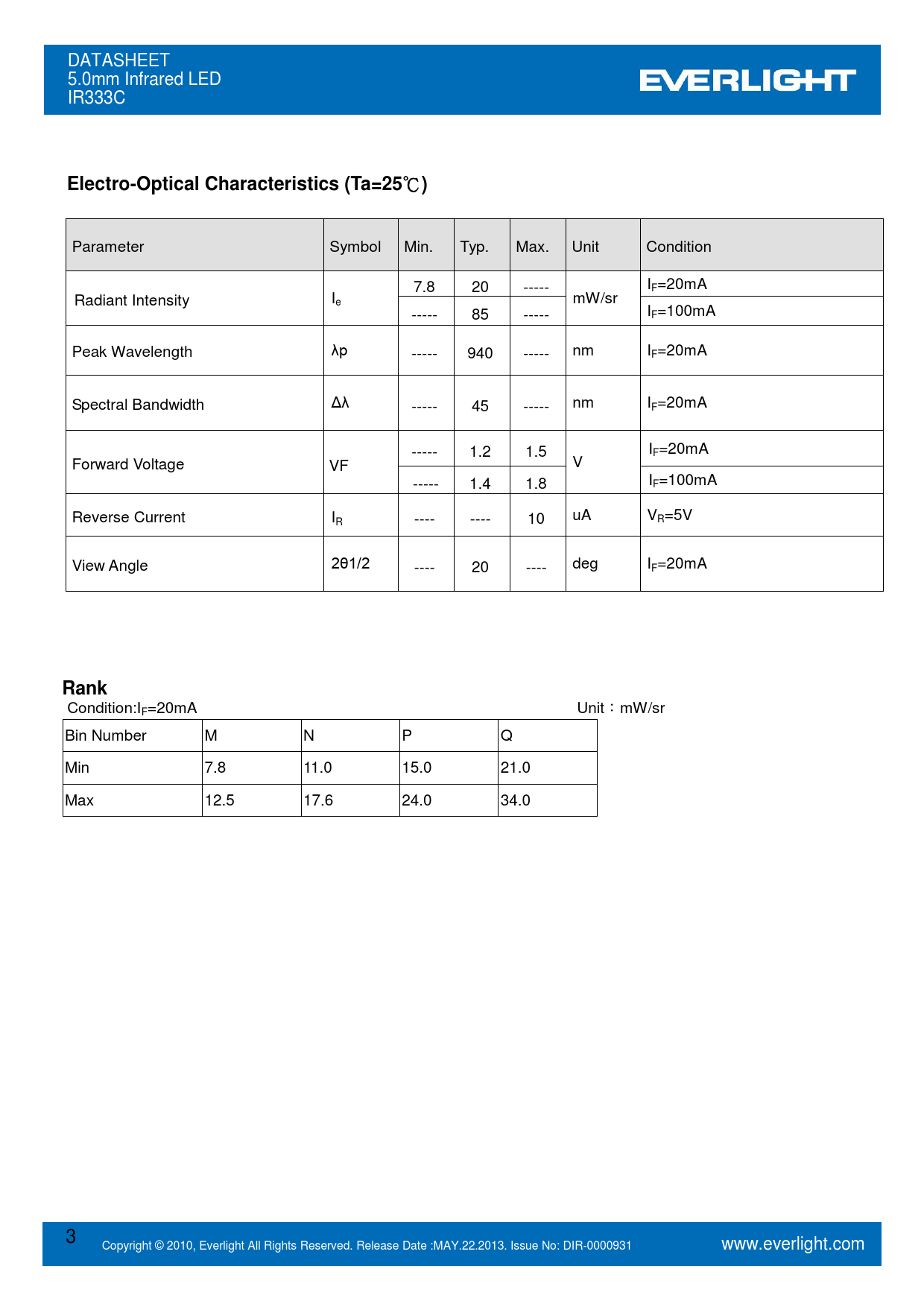

DATASHEET 5.0mm Infrared LED IR333C
Electro-Optical Characteristics (Ta=25
℃
)
Parameter Symbol Min. Typ. Max. Unit Condition 7.8 20 ----- IF=20mA Radiant Intensity Ie mW/sr ----- 85 ----- IF=100mA Peak Wavelength λp ----- 940 ----- nm IF=20mA Spectral Bandwidth Δλ ----- 45 ----- nm IF=20mA ----- 1.2 1.5 IF=20mA Forward Voltage VF V ----- 1.4 1.8 IF=100mA Reverse Current IR ---- ---- 10 uA VR=5V View Angle 2θ1/2 ---- 20 ---- deg IF=20mA
Rank
Condition:IF=20mA Unit：mW/sr Bin Number M N P Q Min 7.8 11.0 15.0 21.0 Max 12.5 17.6 24.0 34.0 3 Copyright © 2010, Everlight All Rights Reserved. Release Date :MAY.22.2013. Issue No: DIR-0000931 www.everlight.com
