Datasheet MC145026, MC145027, MC145028 (NXP) - 4
| 制造商 | NXP |
| 描述 | Encoder and Decoder Pairs CMOS |
| 页数 / 页 | 20 / 4 — Electrical Specifications. Figure 4. MC145028 Decoder Block Diagram. … |
| 文件格式/大小 | PDF / 810 Kb |
| 文件语言 | 英语 |
Electrical Specifications. Figure 4. MC145028 Decoder Block Diagram. Table 1. Maximum Ratings*. Ratings. Symbol. Value. Unit
该数据表的模型线
文件文字版本
Electrical Specifications
CONTROL 11 VT LOGIC SEQUENCER CIRCUIT 9 8 7 6 5 4 3 2 1 1 A1 9-BIT 2 SHIFT A2 REGISTER 3 A3 4 A4 5 DATA 9 A5 D EXTRACTOR in 15 A6 C V 1 C R 2 DD = PIN 16 14 7 1 6 VSS = PIN 8 A7 10 13 A8 R2 12 A9

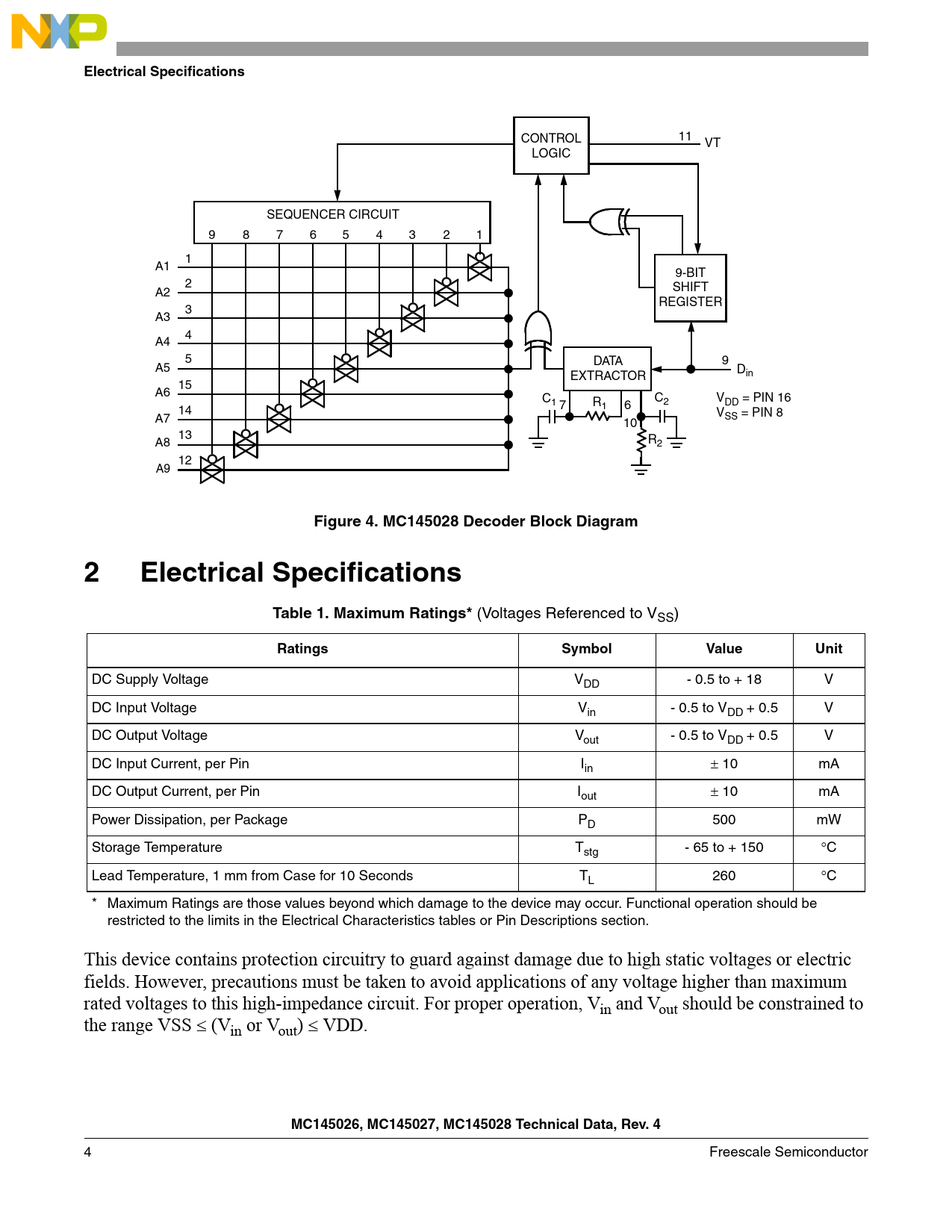

Figure 4. MC145028 Decoder Block Diagram 2 Electrical Specifications Table 1. Maximum Ratings*
(Voltages Referenced to VSS)
Ratings Symbol Value Unit
DC Supply Voltage VDD - 0.5 to + 18 V DC Input Voltage Vin - 0.5 to VDD + 0.5 V DC Output Voltage Vout - 0.5 to VDD + 0.5 V DC Input Current, per Pin I ± in 10 mA DC Output Current, per Pin I ± out 10 mA Power Dissipation, per Package PD 500 mW Storage Temperature Tstg - 65 to + 150 °C Lead Temperature, 1 mm from Case for 10 Seconds TL 260 °C * Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the limits in the Electrical Characteristics tables or Pin Descriptions section. This device contains protection circuitry to guard against damage due to high static voltages or electric fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, Vin and Vout should be constrained to the range VSS ≤ (Vin or Vout) ≤ VDD.
