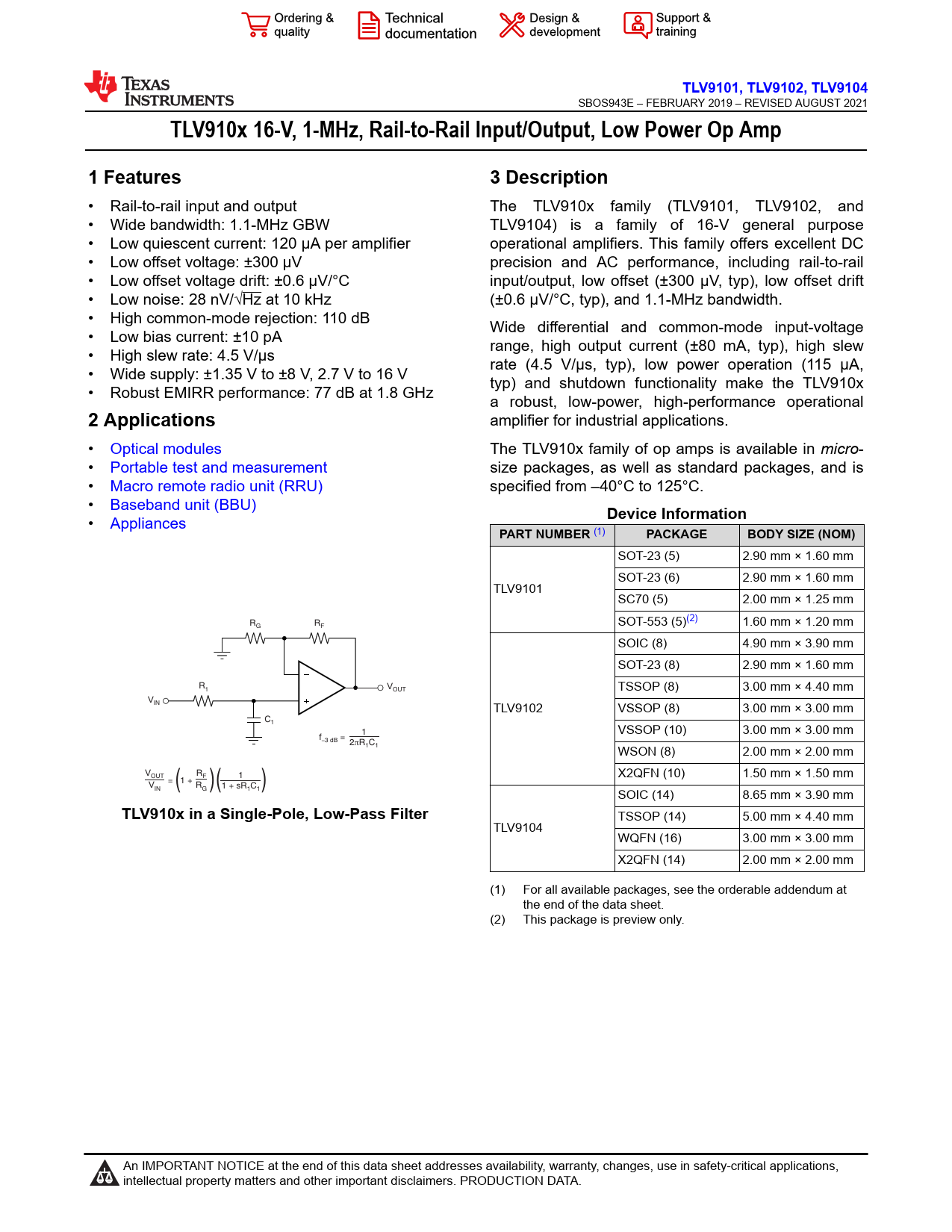

link to page 1 link to page 1 TLV9101,TLV9102,TLV9104 SBOS943E – FEBRUARY 2019 – REVISED AUGUST 2021 TLV910x 16-V, 1-MHz, Rail-to-Rail Input/Output, Low Power Op Amp1 Features3 Description • Rail-to-rail input and output The TLV910x family (TLV9101, TLV9102, and • Wide bandwidth: 1.1-MHz GBW TLV9104) is a family of 16-V general purpose • Low quiescent current: 120 µA per amplifier operational amplifiers. This family offers excellent DC • Low offset voltage: ±300 µV precision and AC performance, including rail-to-rail • Low offset voltage drift: ±0.6 µV/°C input/output, low offset (±300 µV, typ), low offset drift • Low noise: 28 nV/√Hz at 10 kHz (±0.6 µV/°C, typ), and 1.1-MHz bandwidth. • High common-mode rejection: 110 dB Wide differential and common-mode input-voltage • Low bias current: ±10 pA range, high output current (±80 mA, typ), high slew • High slew rate: 4.5 V/µs rate (4.5 V/µs, typ), low power operation (115 µA, • Wide supply: ±1.35 V to ±8 V, 2.7 V to 16 V typ) and shutdown functionality make the TLV910x • Robust EMIRR performance: 77 dB at 1.8 GHz a robust, low-power, high-performance operational 2 Applications amplifier for industrial applications. • Optical modules The TLV910x family of op amps is available in micro- • Portable test and measurement size packages, as well as standard packages, and is • Macro remote radio unit (RRU) specified from –40°C to 125°C. • Baseband unit (BBU) Device Information • Appliances PART NUMBER (1) PACKAGEBODY SIZE (NOM) SOT-23 (5) 2.90 mm × 1.60 mm SOT-23 (6) 2.90 mm × 1.60 mm TLV9101 SC70 (5) 2.00 mm × 1.25 mm R R SOT-553 (5)(2) 1.60 mm × 1.20 mm G F SOIC (8) 4.90 mm × 3.90 mm SOT-23 (8) 2.90 mm × 1.60 mm R TSSOP (8) 3.00 mm × 4.40 mm 1 VOUT VIN TLV9102 VSSOP (8) 3.00 mm × 3.00 mm C1 1 VSSOP (10) 3.00 mm × 3.00 mm f = -3 dB 2pR C 1 1 WSON (8) 2.00 mm × 2.00 mm V R X2QFN (10) 1.50 mm × 1.50 mm OUT F 1 = 1 + ( V R IN G 1 + sR C 1 1 SOIC (14) 8.65 mm × 3.90 mm TLV910x in a Single-Pole, Low-Pass Filter TSSOP (14) 5.00 mm × 4.40 mm TLV9104 WQFN (16) 3.00 mm × 3.00 mm X2QFN (14) 2.00 mm × 2.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. (2) This package is preview only. An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information for Single Channel 6.5 Thermal Information for Dual Channel 6.6 Thermal Information for Quad Channel 6.7 Electrical Characteristics 6.8 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 EMI Rejection 7.3.2 Phase Reversal Protection 7.3.3 Thermal Protection 7.3.4 Capacitive Load and Stability 7.3.5 Common-Mode Voltage Range 7.3.6 Electrical Overstress 7.3.7 Overload Recovery 7.3.8 Typical Specifications and Distributions 7.3.9 Packages With an Exposed Thermal Pad 7.3.10 Shutdown 7.4 Device Functional Modes 8 Application and Implementation 8.1 Application Information 8.2 Typical Applications 8.2.1 High Voltage Precision Comparator 8.2.1.1 Design Requirements 8.2.1.2 Detailed Design Procedure 8.2.1.3 Application Curve 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Example 11 Device and Documentation Support 11.1 Device Support 11.1.1 Development Support 11.1.1.1 TINA-TI™ (Free Software Download) 11.2 Documentation Support 11.2.1 Related Documentation 11.3 Receiving Notification of Documentation Updates 11.4 Support Resources 11.5 Trademarks 11.6 Electrostatic Discharge Caution 11.7 Glossary 12 Mechanical, Packaging, and Orderable Information
