Datasheet ADG774 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | CMOS 3 V/5 V, Wide Bandwidth Quad 2:1 Mux |
| 页数 / 页 | 12 / 2 — ADG774–SPECIFICATIONS SINGLE SUPPLY (VDD = 5 V. 10%, GND = 0 V. All … |
| 文件格式/大小 | PDF / 139 Kb |
| 文件语言 | 英语 |

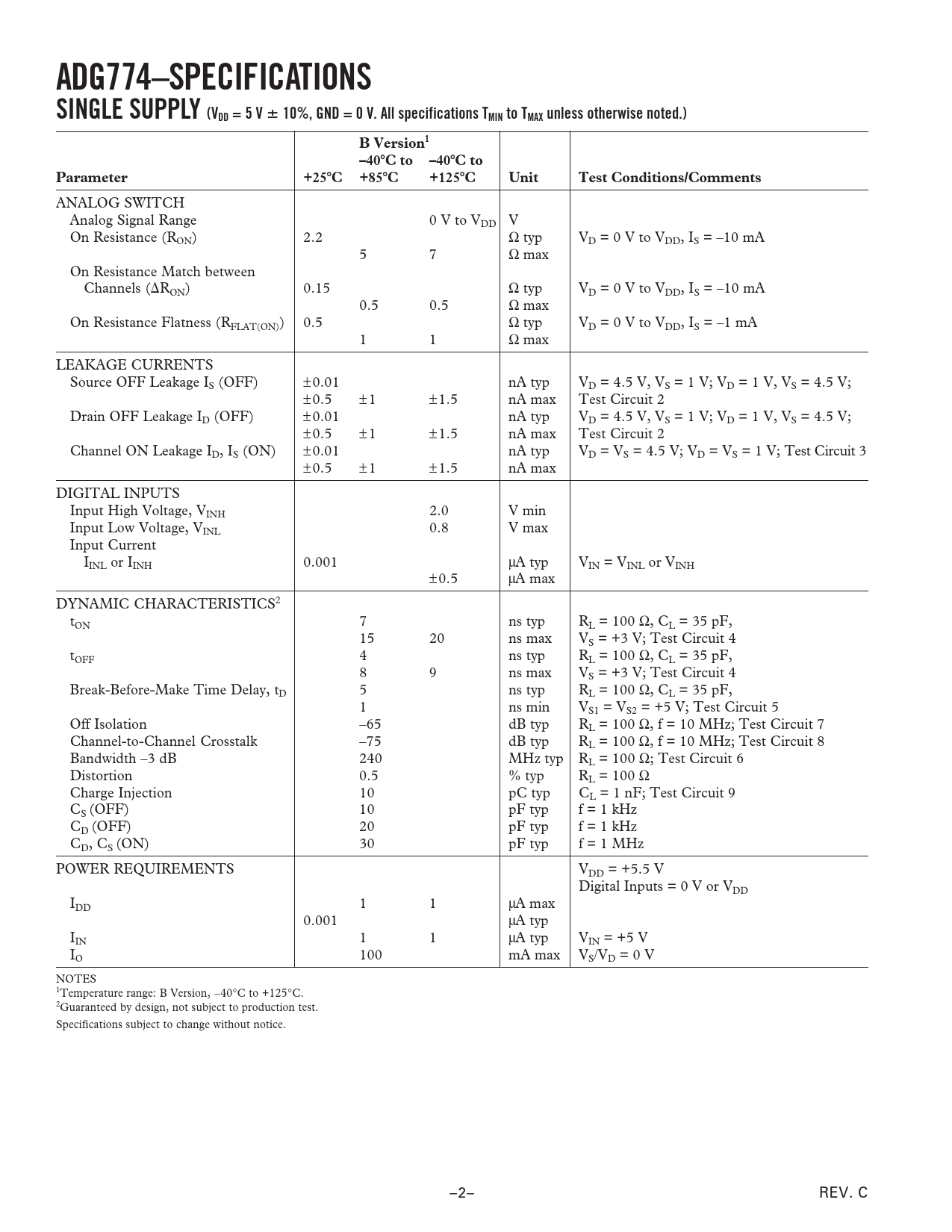

ADG774–SPECIFICATIONS SINGLE SUPPLY (VDD = 5 V. 10%, GND = 0 V. All specifications TMIN to TMAX unless otherwise noted.)
该数据表的模型线
文件文字版本
ADG774–SPECIFICATIONS SINGLE SUPPLY (VDD = 5 V 10%, GND = 0 V. All specifications TMIN to TMAX unless otherwise noted.) B Version1 –40 C to –40 C to Parameter +25 C +85 C +125 C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 2.2 Ω typ VD = 0 V to VDD, IS = –10 mA 5 7 Ω max On Resistance Match between Channels (RON) 0.15 Ω typ VD = 0 V to VDD, IS = –10 mA 0.5 0.5 Ω max On Resistance Flatness (RFLAT(ON)) 0.5 Ω typ VD = 0 V to VDD, IS = –1 mA 1 1 Ω max LEAKAGE CURRENTS Source OFF Leakage IS (OFF) ±0.01 nA typ VD = 4.5 V, VS = 1 V; VD = 1 V, VS = 4.5 V; ±0.5 ±1 ±1.5 nA max Test Circuit 2 Drain OFF Leakage ID (OFF) ±0.01 nA typ VD = 4.5 V, VS = 1 V; VD = 1 V, VS = 4.5 V; ±0.5 ±1 ±1.5 nA max Test Circuit 2 Channel ON Leakage ID, IS (ON) ±0.01 nA typ VD = VS = 4.5 V; VD = VS = 1 V; Test Circuit 3 ±0.5 ±1 ±1.5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH 0.001 µA typ VIN = VINL or VINH ±0.5 µA max DYNAMIC CHARACTERISTICS2 tON 7 ns typ RL = 100 Ω, CL = 35 pF, 15 20 ns max VS = +3 V; Test Circuit 4 tOFF 4 ns typ RL = 100 Ω, CL = 35 pF, 8 9 ns max VS = +3 V; Test Circuit 4 Break-Before-Make Time Delay, tD 5 ns typ RL = 100 Ω, CL = 35 pF, 1 ns min VS1 = VS2 = +5 V; Test Circuit 5 Off Isolation –65 dB typ RL = 100 Ω, f = 10 MHz; Test Circuit 7 Channel-to-Channel Crosstalk –75 dB typ RL = 100 Ω, f = 10 MHz; Test Circuit 8 Bandwidth –3 dB 240 MHz typ RL = 100 Ω; Test Circuit 6 Distortion 0.5 % typ RL = 100 Ω Charge Injection 10 pC typ CL = 1 nF; Test Circuit 9 CS (OFF) 10 pF typ f = 1 kHz CD (OFF) 20 pF typ f = 1 kHz CD, CS (ON) 30 pF typ f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V Digital Inputs = 0 V or VDD IDD 1 1 µA max 0.001 µA typ IIN 1 1 µA typ VIN = +5 V IO 100 mA max VS/VD = 0 V NOTES 1Temperature range: B Version, –40°C to +125°C. 2Guaranteed by design, not subject to production test. Specifications subject to change without notice. –2– REV. C Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE PIN CONFIGURATION TERMINOLOGY Typical Performance Characteristics Test Circuits OUTLINE DIMENSIONS Revision History
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 2.2 Ω typ VD = 0 V to VDD, IS = –10 mA 5 7 Ω max On Resistance Match between Channels (RON) 0.15 Ω typ VD = 0 V to VDD, IS = –10 mA 0.5 0.5 Ω max On Resistance Flatness (RFLAT(ON)) 0.5 Ω typ VD = 0 V to VDD, IS = –1 mA 1 1 Ω max LEAKAGE CURRENTS Source OFF Leakage IS (OFF) ±0.01 nA typ VD = 4.5 V, VS = 1 V; VD = 1 V, VS = 4.5 V; ±0.5 ±1 ±1.5 nA max Test Circuit 2 Drain OFF Leakage ID (OFF) ±0.01 nA typ VD = 4.5 V, VS = 1 V; VD = 1 V, VS = 4.5 V; ±0.5 ±1 ±1.5 nA max Test Circuit 2 Channel ON Leakage ID, IS (ON) ±0.01 nA typ VD = VS = 4.5 V; VD = VS = 1 V; Test Circuit 3 ±0.5 ±1 ±1.5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH 0.001 µA typ VIN = VINL or VINH ±0.5 µA max DYNAMIC CHARACTERISTICS2 tON 7 ns typ RL = 100 Ω, CL = 35 pF, 15 20 ns max VS = +3 V; Test Circuit 4 tOFF 4 ns typ RL = 100 Ω, CL = 35 pF, 8 9 ns max VS = +3 V; Test Circuit 4 Break-Before-Make Time Delay, tD 5 ns typ RL = 100 Ω, CL = 35 pF, 1 ns min VS1 = VS2 = +5 V; Test Circuit 5 Off Isolation –65 dB typ RL = 100 Ω, f = 10 MHz; Test Circuit 7 Channel-to-Channel Crosstalk –75 dB typ RL = 100 Ω, f = 10 MHz; Test Circuit 8 Bandwidth –3 dB 240 MHz typ RL = 100 Ω; Test Circuit 6 Distortion 0.5 % typ RL = 100 Ω Charge Injection 10 pC typ CL = 1 nF; Test Circuit 9 CS (OFF) 10 pF typ f = 1 kHz CD (OFF) 20 pF typ f = 1 kHz CD, CS (ON) 30 pF typ f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V Digital Inputs = 0 V or VDD IDD 1 1 µA max 0.001 µA typ IIN 1 1 µA typ VIN = +5 V IO 100 mA max VS/VD = 0 V NOTES 1Temperature range: B Version, –40°C to +125°C. 2Guaranteed by design, not subject to production test. Specifications subject to change without notice. –2– REV. C Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE PIN CONFIGURATION TERMINOLOGY Typical Performance Characteristics Test Circuits OUTLINE DIMENSIONS Revision History
